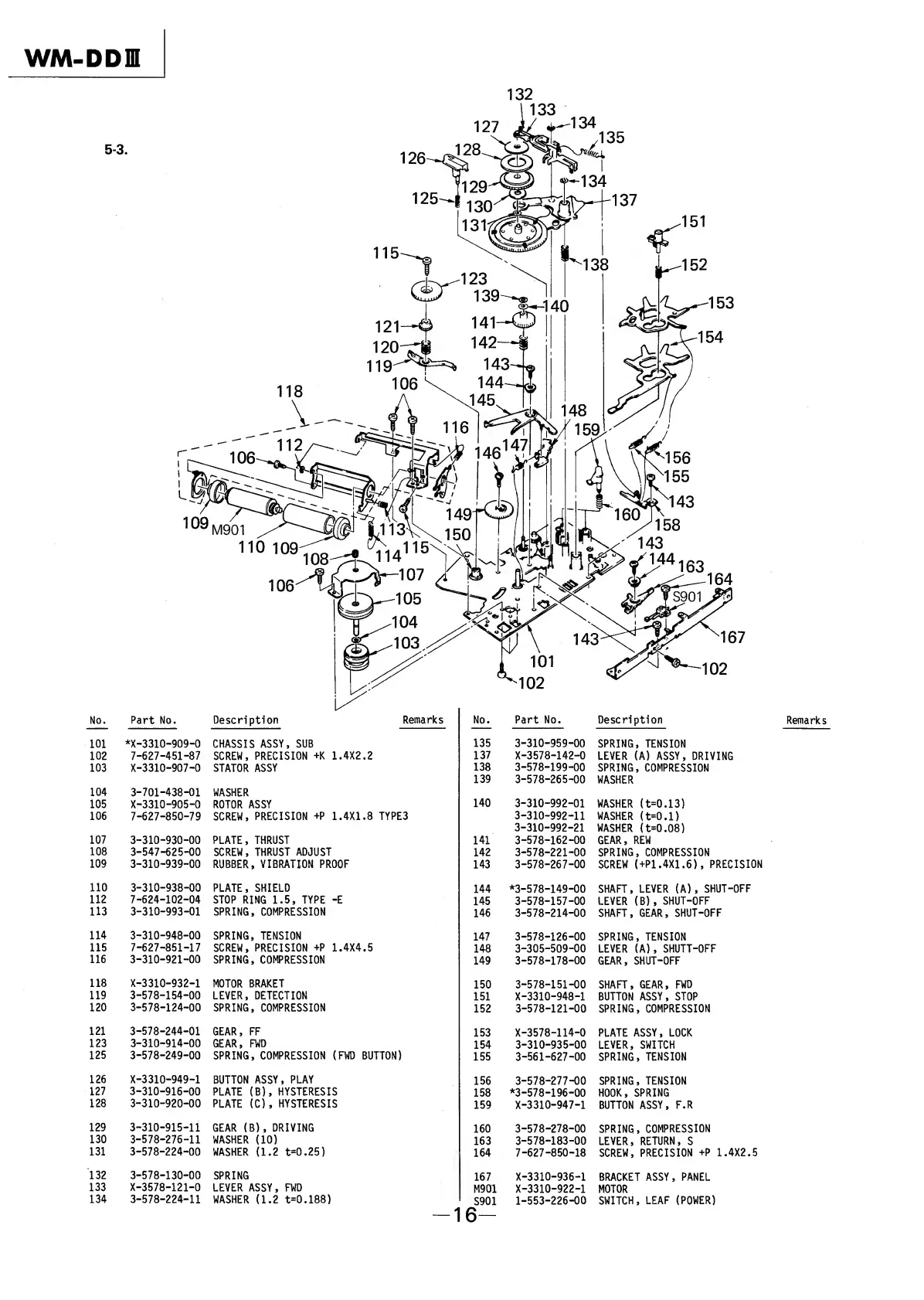

Sony WM-DDIII User Manual

WM-DDO
132
No.
Part No.
Description Remarks No. Part No.
Description
101 *X-3310-909-0 CHASSIS ASSY, SUB
135
3-310-959-00
SPRING, TENSION
102
7-627-451-87
SCREW, PRECISION +K 1.4X2.2
137
X-3578-142-0
LEVER (A) ASSY, DRIVING
103 X-3310-907-0
STATOR ASSY
138
3-578-199-00
SPRING, COMPRESSION
139
3-578-265-00
WASHER
104
3-701-438-01
WASHER
105
X-3310-905-0 ROTOR ASSY
140
3-310-992-01
WASHER (t=0.13)
106
7-627-850-79
SCREW, PRECISION +P 1.4X1.8 TYPE3
3-310-992-11
WASHER (t=0.1)
3-310-992-21
WASHER (t=0.Q8)
107
3-310-930-00 PLATE, THRUST 141 3-578-162-00 GEAR, REW
108
3-547-625-00
SCREW, THRUST ADJUST
142
3-578-221-00 SPRING, COMPRESSION
109
3-310-939-00
RUBBER, VIBRATION PROOF
143
3-578-267-00 SCREW (+P1.4X1.6), PRECISION
110
3-310-938-00
PLATE, SHIELD
144
*3-578-149-00 SHAFT, LEVER (A) , SHUT-OFF
112
7-624-102-04
STOP RING 1.5, TYPE -E
145 3-578-157-00 LEVER (B), SHUT-OFF
113 3-310-993-01
SPRING, COMPRESSION
146 3-578-214-00
SHAFT, GEAR, SHUT-OFF
114
3-310-948-00
SPRING, TENSION
147 3-578-126-00 SPRING, TENSION
115 7-627-851-17 SCREW, PRECISION +P 1.4X4.5
148
3-305-509-00
LEVER (A), SHUTT-OFF
116
3-310-921-00
SPRING, COMPRESSION
149 3-578-178-00
GEAR, SHUT-OFF
118
X-3310-932-1
MOTOR BRAKET
150 3-578-151-00 SHAFT, GEAR, FWD
119
3-578-154-00 LEVER, DETECTION
151
X-3310-948-1
BUTTON ASSY, STOP
120 3-578-124-00
SPRING, COMPRESSION
152
3-578-121-00
SPRING, COMPRESSION
121
3-578-244-01
GEAR, FF
153 X-3578-114-0
PLATE ASSY, LOCK
123 3-310-914-00
GEAR, FWD
154 3-310-935-00 LEVER, SWITCH
125
3-578-249-00 SPRING, COMPRESSION (FWD BUTTON)
155 3-561-627-00
SPRING, TENSION
126
X-3310-949-1 BUTTON ASSY, PLAY
156 3-578-277-00 SPRING, TENSION
127
3-310-916-00 PLATE (B), HYSTERESIS
158 *3-578-196-00
HOOK, SPRING
128
3-310-920-00
PLATE (C), HYSTERESIS
159
X-3310-947-1
BUTTON ASSY, F.R
129 3-310-915-11
GEAR (B), DRIVING
160 3-578-278-00 SPRING, COMPRESSION
130
3-578-276-11
WASHER (10)
163
3-578-183-00
LEVER, RETURN, S
131
3-578-224-00 WASHER (1.2 t=0.25)
164 7-627-850-18
SCREW, PRECISION +P 1.4X2.5
132 3-578-130-00
SPRING
167 X—3310—936—1 BRACKET ASSY, PANEL
133
X-3578-121-0
LEVER ASSY, FWD
M901
X—3310—922—1
MOTOR
134 3-578-224-11
WASHER (1.2 t=0.188)
S901
1-553-226-00 SWITCH, LEAF (POWER)
- 1 6 -
