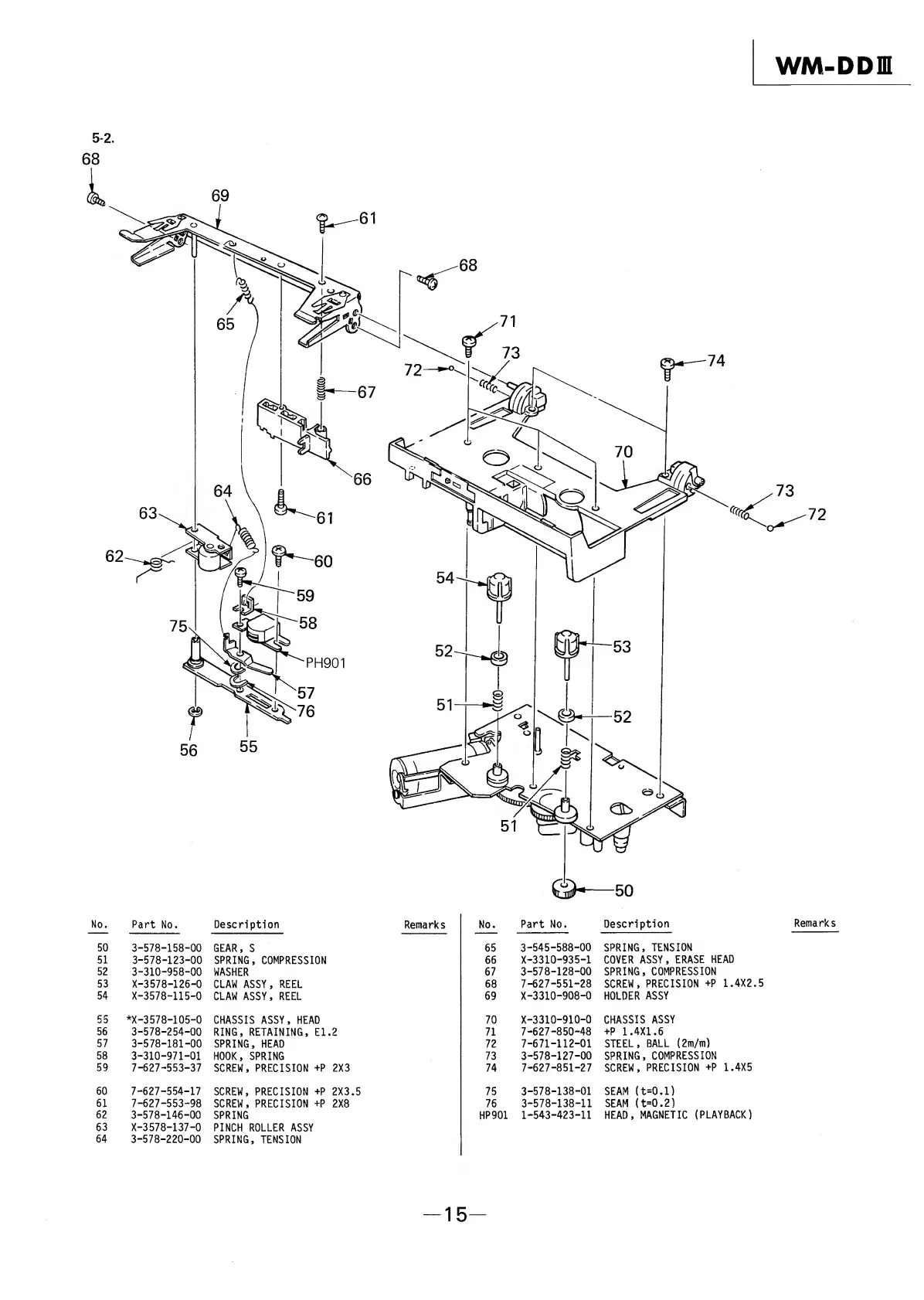

Sony WM-DDIII - Mechanism Parts List

WM-DDI
5-2.
68
- 5 0
No. Part No. Description Remarks
65 3-545-588-00 SPRING, TENSION
66 X—3310—935—1 COVER ASSY, ERASE HEAD
67 3-578-128-00 SPRING, COMPRESSION
68 7-627-551-28 SCREW, PRECISION +P 1.4X2.5
69 X-3310-908-0 HOLDER ASSY
70 X-3310-910-0 CHASSIS ASSY
71 7-627-850-48 +P 1.4X1.6
72 7-671-112-01 STEEL, BALL (2m/m)
73 3-578-127-00 SPRING, COMPRESSION
74 7-627-851-27 SCREW, PRECISION +P 1.4X5
75 3-578-138-01 SEAM (t=0.1)
76 3-578-138-11 SEAM (t=0.2)
HP901 1-543-423-11 HEAD, MAGNETIC (PLAYBACK)
No.
Part No.
Description Remarks
50
3-578-158-00 GEAR, S
51
3-578-123-00 SPRING, COMPRESSION
52
3-310-958-00
WASHER
53
X—3 578—126—0 CLAW ASSY, REEL
54
X-3578-115-0 CLAW ASSY, REEL
55
*X-3578-105-0
CHASSIS ASSY, HEAD
56
3-578-254-00
RING, RETAINING, E1.2
57
3-578-181-00
SPRING, HEAD
58
3-310-971-01
HOOK, SPRING
59
7-627-553-37 SCREW, PRECISION +P 2X3
60
7-627-554-17
SCREW, PRECISION +P 2X3.5
61
7-627-553-98 SCREW, PRECISION +P 2X8
62
3-578-146-00
SPRING
63
X-3578-137-0 PINCH ROLLER ASSY
64
3-578-220-00
SPRING, TENSION
