Sony WM-GX512 - SECTION 3. DISASSEMBLY; 3-1. BRACKET ASSEMBLY AND CASSETTE HOLDER ASSEMBLY; 3-2. TUNER BOARD

— 6 —
Note : Follow the disassembly procedure in the numerical order given.

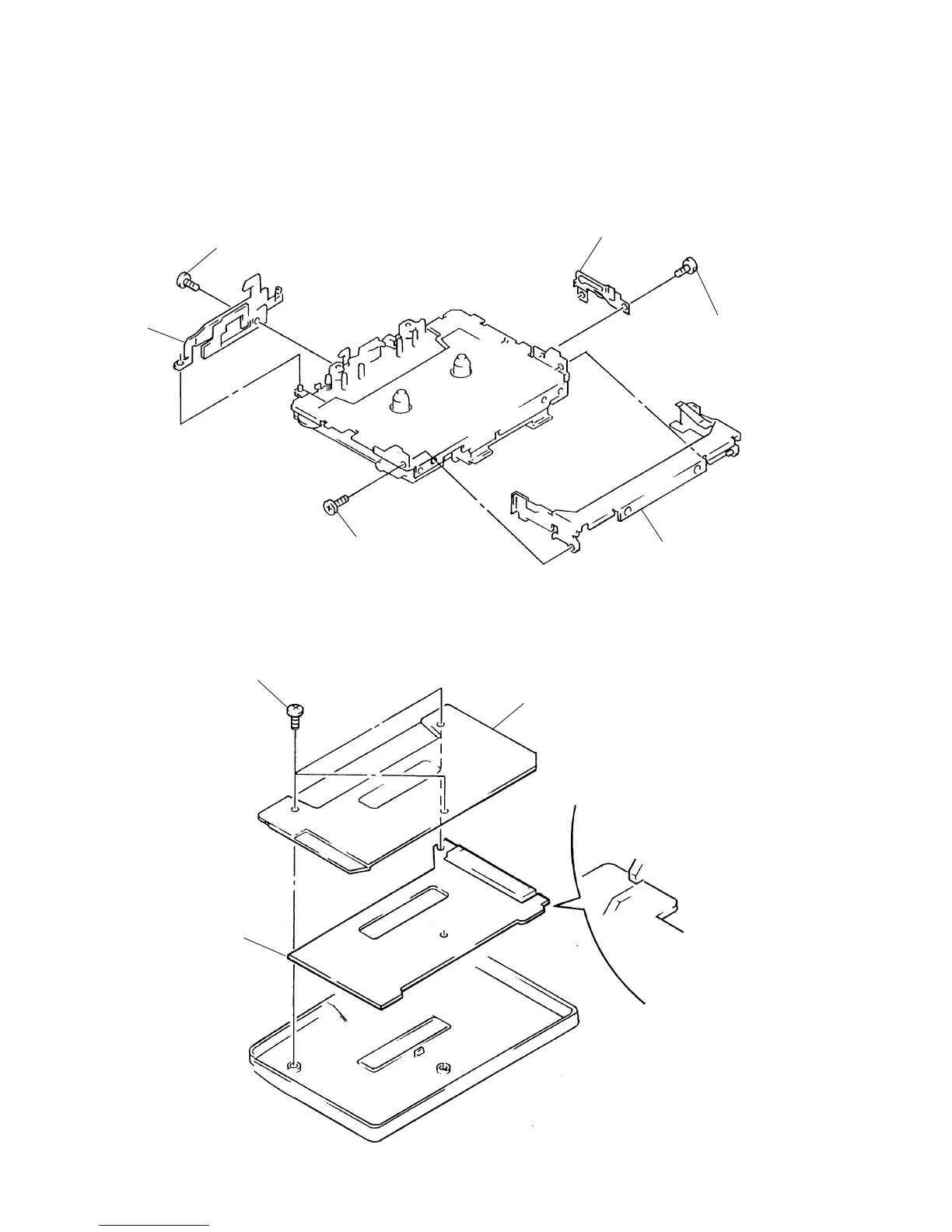

3-1. BRACKET ASSEMBLY AND CASSETTE HOLDER ASSEMBLY
SECTION 3
DISASSEMBLY
4 Lock lever (B)
6 Cassette holder assembly
3-2. TUNER BOARD
1 Three screws (1.7x2.5)
(tapping)
2 TU cover
Note for installation
3 Tuner board
3 Screw (M1.4x1.1)
2 Bracket assembly
5 Screw (M1.4x1.1)
1 Screw (M1.4x1.1)
