Sony XR-4790 Service Manual

– 13 –

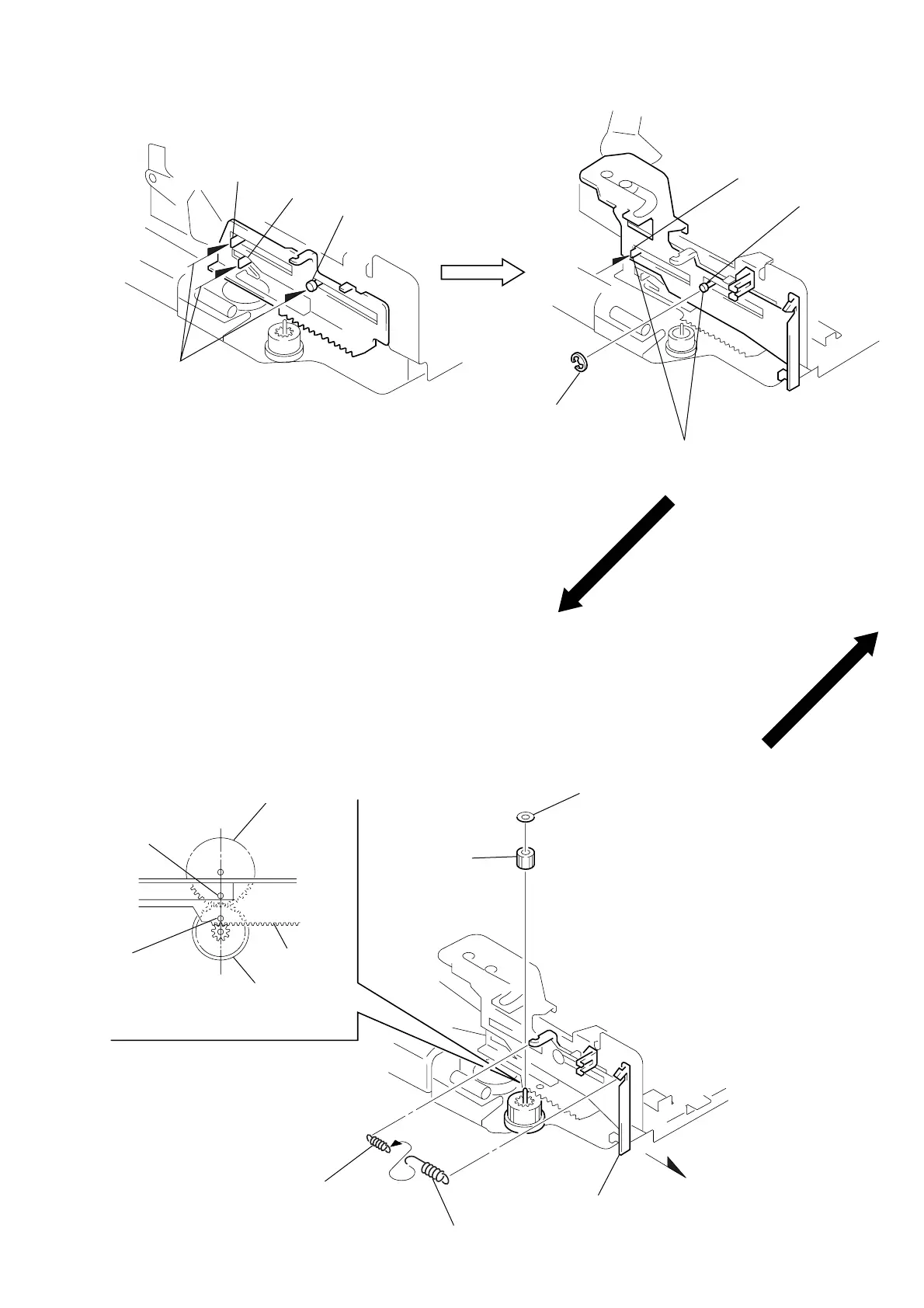

LEVER (LDG-A) / (LDG-B)
shaft A
shaft B
shaft C
1
Fit the lever (LDG-A) on
shafts
A – C and install it.
3 type-E stop ring 2.0
shaft
B
shaft A
2
Fit the lever (LDG-B) on
shafts
A and B and
install it.
4 Align hole in the gear (LDG-D)
with hole the lever (LDG-A)
5 gear (LDG-FT)
6 polyethylene washer
3 Move the lever (LDG-B)
in the arrow direction.
2 tensiton spring (LD-1)
2 tensiton spring (LD-2)
gear (LDG-FB)
lever (LDG-A)
hole
hole
gear (LDG-D)
1
GEAR (LDG-FT)
