Sony XR-4790 Service Manual

– 12 –

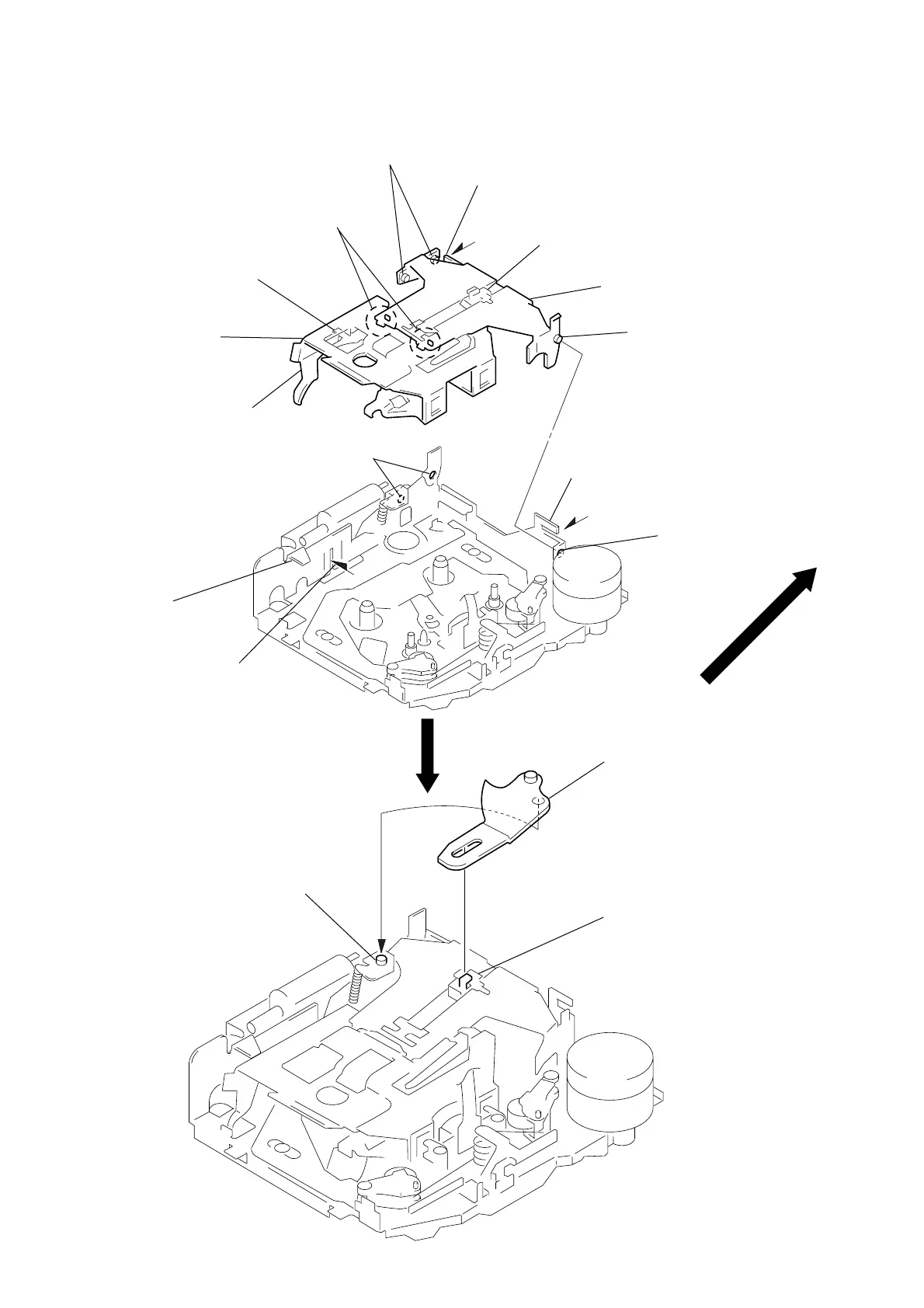

SECTION 3
ASSEMBLY OF MECHANISM DECK
Note: Follow the assembly procedure in the numerical order given.
HOUSING
1 Install the catch to the hanger.
7 Holder the hanger by bending the claw.
6 Fit projaction on D part.
4 Fit claw on B part.
5 Fit projection on C part.
2 Install the hanger onto
two claws of the housing.
3 Put the housing
under
A part.
D part
B part
A part
C part
8 Hold the hanger by
bending the claw.
hanger
housing
ARM (SUCTION)
2 Move the arm (suction) in the arro
w
direction and fit on projection.
1 Fit the arm (suction) on the shaft.
projection
