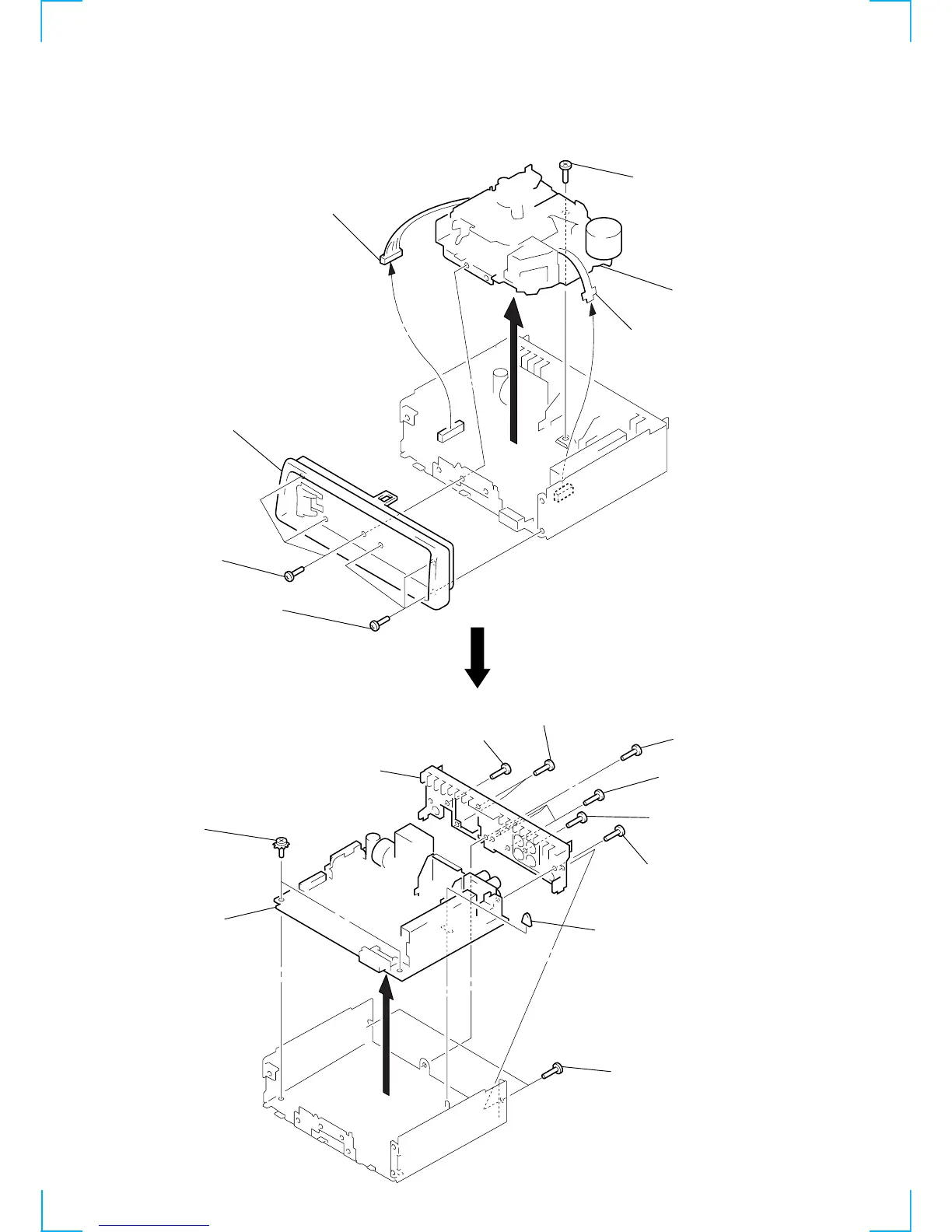

SUB PANEL, MECHANISM DECK (MG-25G-136)
MAIN BOARD, HEAT SINK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1
three screws
(PTT2.6
×
8)
2
sub panel
3
connector
(CN302)
5
screw
(PTT2.6
×
6)
6
mechanism dec
k
(MG-25G-136)
4
flexible flat cable
(CN301)
1
three screws
(PTT2.6
×
8)
3
two ground point
screws
5
screw
(PTT2.6
×
8) (C33R
)
5
screw
(PTT2.6
×
8) (C33R)
5
two screws
(PTT2.6
×
8)
6
three screws
(PTT2.6
×
12)
1
screw
(PTT2.6
×
8)
5
screw
(PTT2.6
×
8)
7
heat sink
2
rubber cap (25)
1
two screws
(PTT2.6
×
8)
4
main board
