2323
XR-3100R/C33R

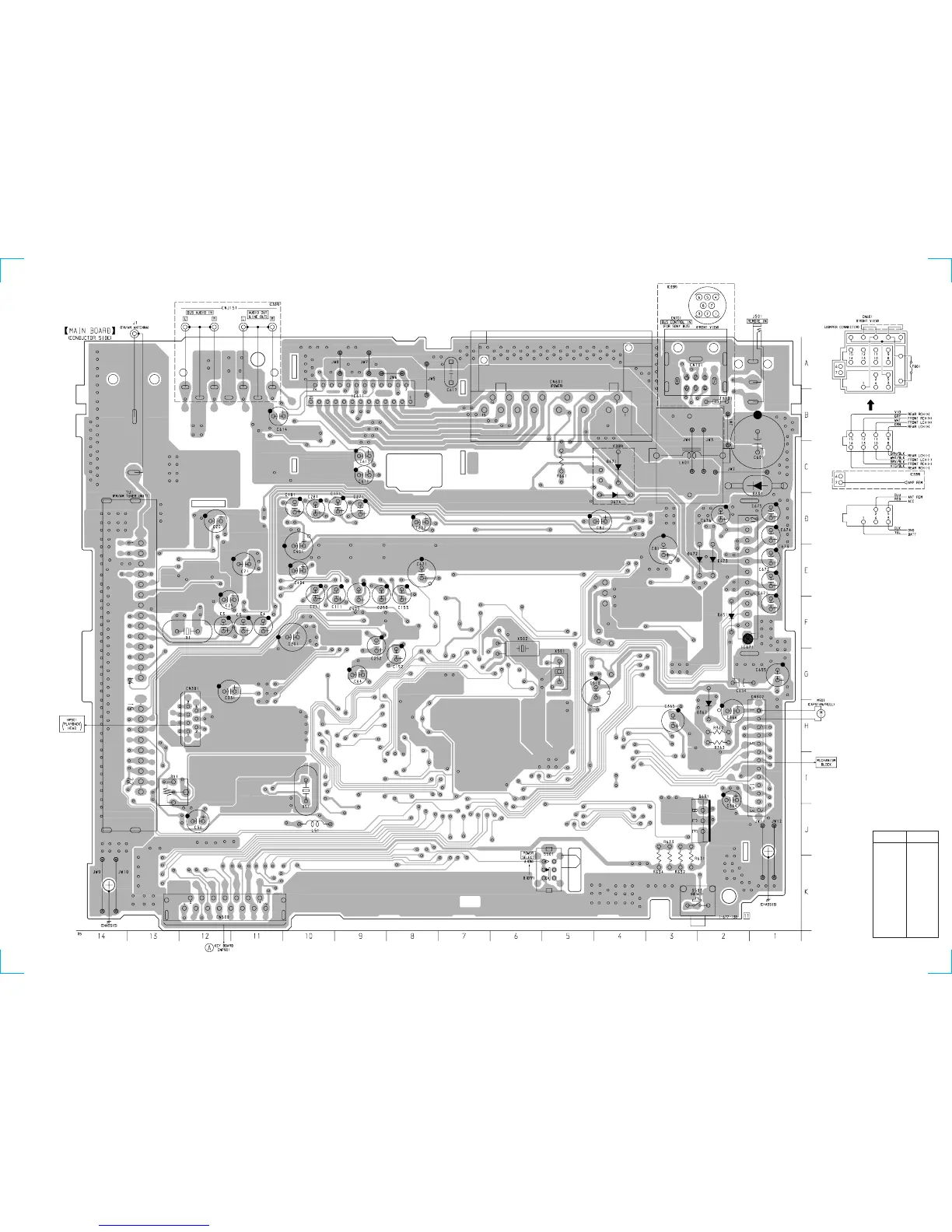

6-6. PRINTED WIRING BOARD – MAIN Board (Conductor Side) –
• Semiconductor
Location
Ref. No. Location
D362 H-2
D601 C-1
D651 F-2
D671 C-4
D672 E-2
D673 E-2
D674 D-4
IC611 A-9
IC671 E-2
Q631 J-2
(Page 30)
