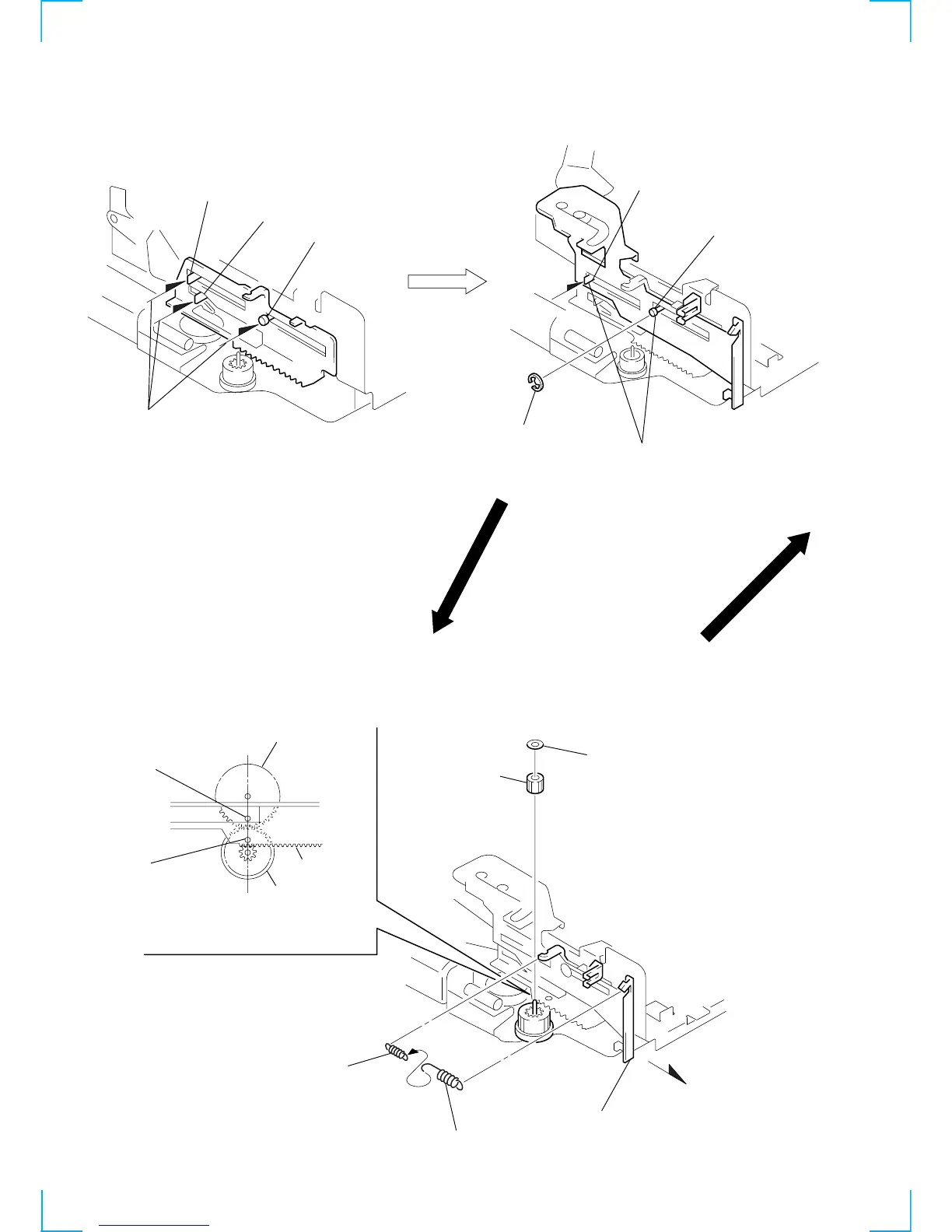

LEVER (LDG-A) / (LDG-B)
GEAR (LDG-FT)
shaft A
shaft B
shaft C
1
Fit the lever (LDG-A) on
shafts A – C and install it.
shaft A
shaft B
2
Fit the lever (LDG-B) on
shafts
A and B and
install it.
3 type-E stop ring 2.0
gear (LDG-D)
5 gear (LDG-FT)
6 polyethylene washer
2 tension spring (LD-2)
2 tension spring (LD-1)
gear (LDG-FB)
lever (LDG-A)
hole
hole
4 Align hole in the gear (LDG-D)
with hole the lever (LDG-A).
3 Move the lever (LDG-B
)
in the arrow direction.
1
