Flat Ceiling & Plenum Mounting Kit AP6 420(E)/840(E)
Plenum mount

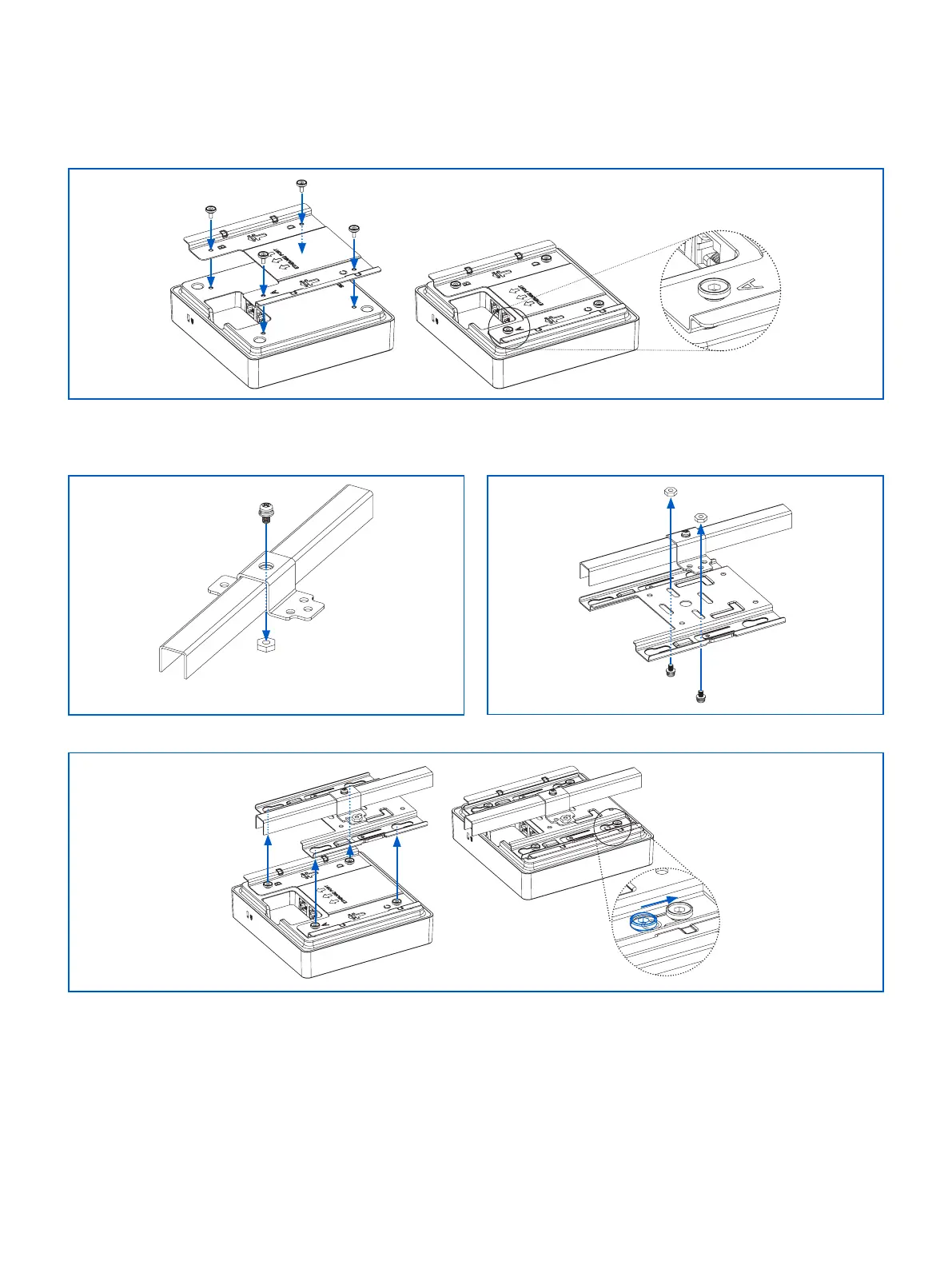

1. Place the fix-plate to the rear of the Access Point by using the 4 supplied step-screws. Make sure it’s positioned in the right
direction as indicated.
1.
2. Install the plenum clip onto the hanger frame and fix it with a M4 or M5 screw (not supplied).
3. Connect the main bracket to the clip by using 2 of the supplied screws and nuts.
2.
3.
4. Align the Access Point (with fix-plate) via the key holes to the main bracket and push it to the end in the sliding-slot.
4.
To Next Page
