8APX 320X

Operating Instructions

Optional Sector / Directional Antennas

Technical speciﬁcations

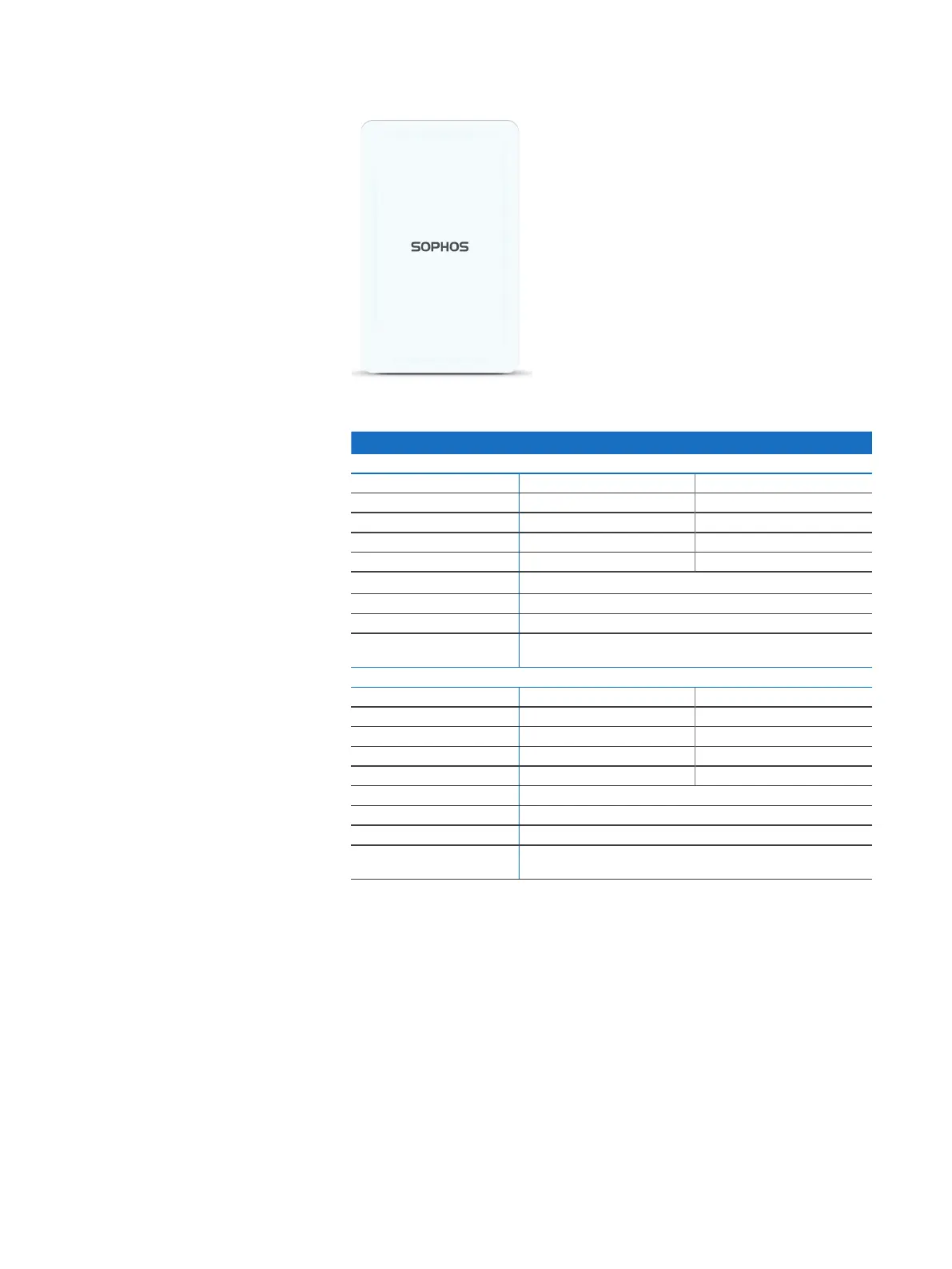

Optional Sector / Directional Antennas

120° Sector Antenna

Frequency range 2400~2500 MHz 5150~5850 MHz

Port V-pol. / H-pol. V-pol. / H-pol.

Antenna Gain 10.6~10.8 dBi) / 10.0~11.4 dBi 12.5~13.1 dBi / 11.6~12.9 dBi

HPBW / Horizontal 76~77 deg / 63~66 deg 40~61 deg / 52~76 deg

HPBW / Vertical 24~25 deg / 26~28 deg 11~13 deg / 11~13 deg

Isolation 20 dB

Impedance 50 Ohms

Connector N Jack

Dimensions

(Height x Width x Depth)

320 x 200 x 20.5 mm (12.6 x 7.87 x 0.81 inches)

30° Directional Antenna

Frequency range 2400~2500 MHz 5150~5850 MHz

Port V-pol. / H-pol. V-pol. / H-pol.

Antenna Gain 11.6~11.8 dBi) / 11.6~12.0 dBi 10.6~11.0 dBi / 10.4~11.5 dBi

HPBW / Horizontal 36~37 deg / 35~36 deg 33~35 deg / 26~36 deg

HPBW / Vertical 34~35 deg / 36~38 deg 32~39 deg / 30~41 deg
