7. Analysis

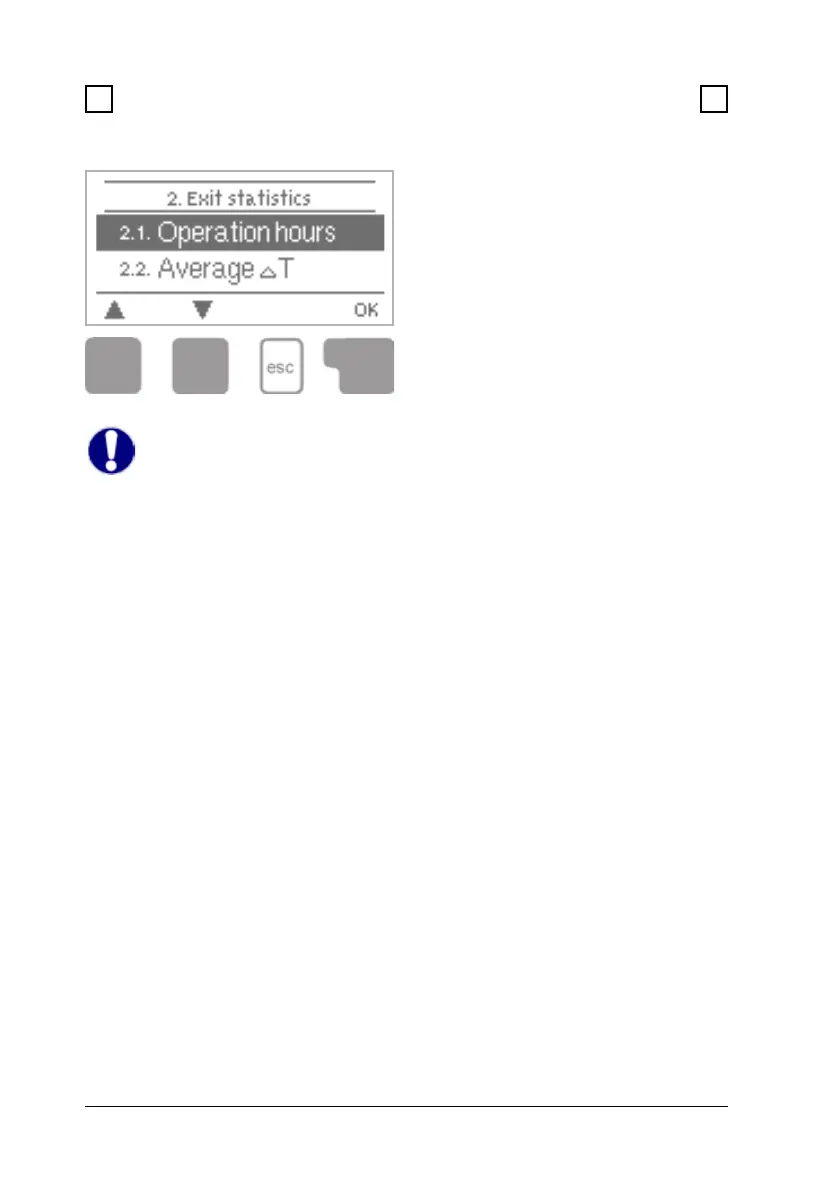

The menu “2. Analyses” is used
for function control and long-term
monitoring of the system.
The submenus described under
7.1-7.6 are available.
The menu is closed by pressing
“esc” or selecting “Exit analyses”.
7.1 Operating hours menu 2.1
Display of operating hours of the solar pump connected to the controller;
various time ranges (day-year) are available.
7.3 Heat output menu 2.3
Display of the average temperature difference between the reference sen-
sors of the solar system with the consumer switched on.
7.2 Average temperature difference ∆T menu 2.2
Display of the heat output of the system. (See 12.7 for adjustments)
7.4 Graphic overview menu 2.4
This provides a clearly-organised display of the data listed under 7.1-7.3
as a bar graph. Various time ranges are available for comparison. The two
left-hand keys can be used to page through the data.
7.5 Error messages menu 2.5
Resetting and deleting the individual analyses. The function “All statistics”
clears all analyses but not the error messages.
7.6 Reset/clear menu 2.6
Display of the last three errors occurring in the system with indication of date
and time.
For analysis of the system data it is essential for the time to be set
accurately on the controller. Please note that the clock does not
continue to run if the mains voltage is interrupted, and must therefore
be reset. Improper operation or an incorrect time may result in data being
deleted, recorded incorrectly or overwritten.
The manufacturer accepts no liability for the recorded data!
