b.
Apply
insulation
tape
(PN 66452)
to
inlet
and outlet
fittings,
copper
tubing
(except
for fitting
used
to
charge
the
system),
filter, and
capillary tubing.
INLET
TUBING
(LIQUID)
START
CAPACITOR
THERMAL
PROTECTOR
START
RELAY
LOW PRESSURE
SERVICE VALVE

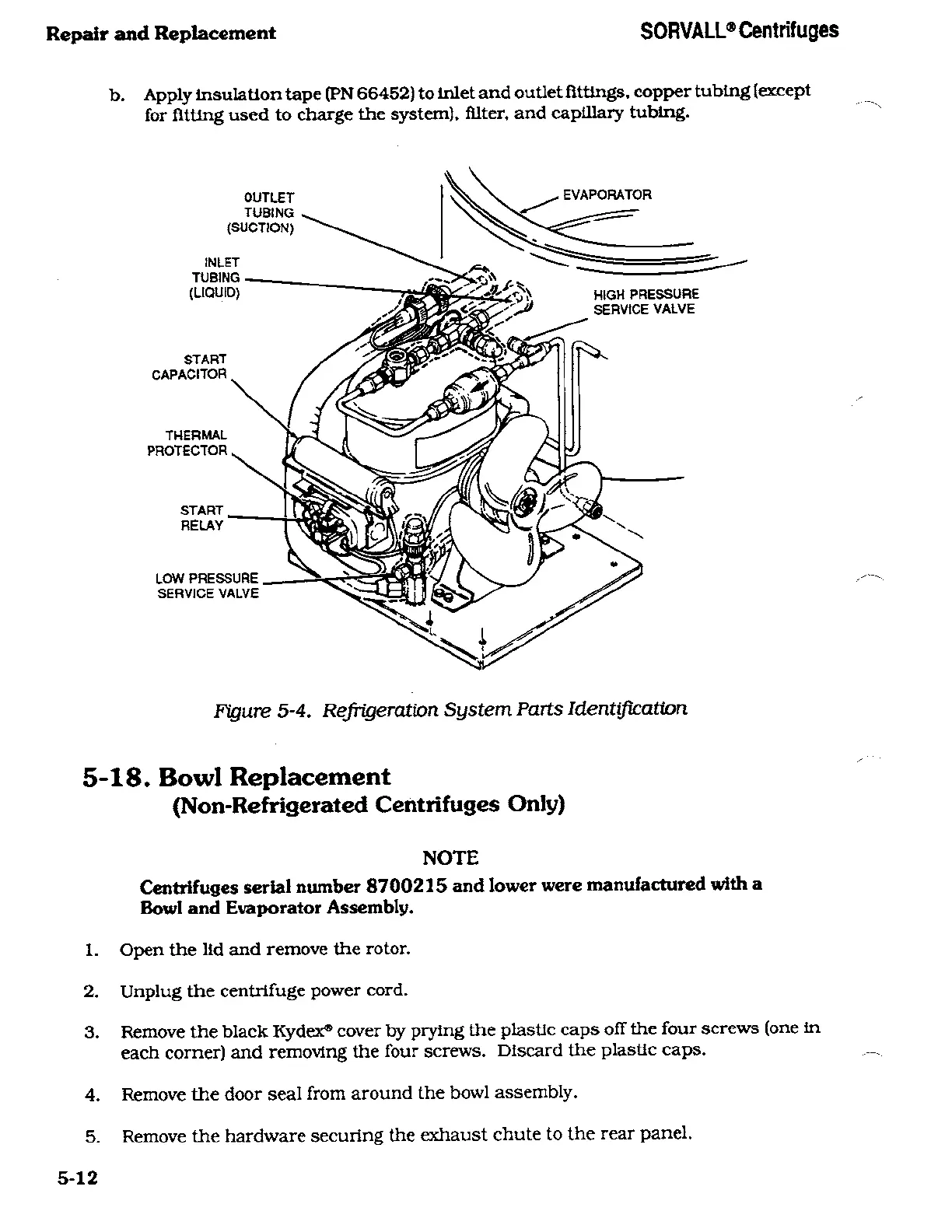

Figure
5-4.
Refrigeration
System
Parts
Identification
5-18. Bowl
Replacement
(Non-Refrigerated Centrifuges
Only)
NOTE
Centrifuges
serial
number
8700215
and
lower were
manufactured
with
a
Bowl
and
Evaporator Assembly.
1. Open
the
lid
and remove
the
rotor.
2. Unplug
the
centrifuge
power
cord.
3.
Remove
the black Kydex®
cover
by
prying
the
plastic
caps
off the
four
screws (one
in
each
corner)
and
removing
the
four
screws.
Discard
the
plastic
caps.
4.
Remove
the
door
seal
from
around
the
bowl
assembly.
5.
Remove
the
hardware
securing
the
exhaust
chute to
the
rear
panel.
