Sorvall RT/T6000D - Page 57

Repair
and
Replacement
SORVALL®
Centrifuges
CUT
SHROUD
HERE

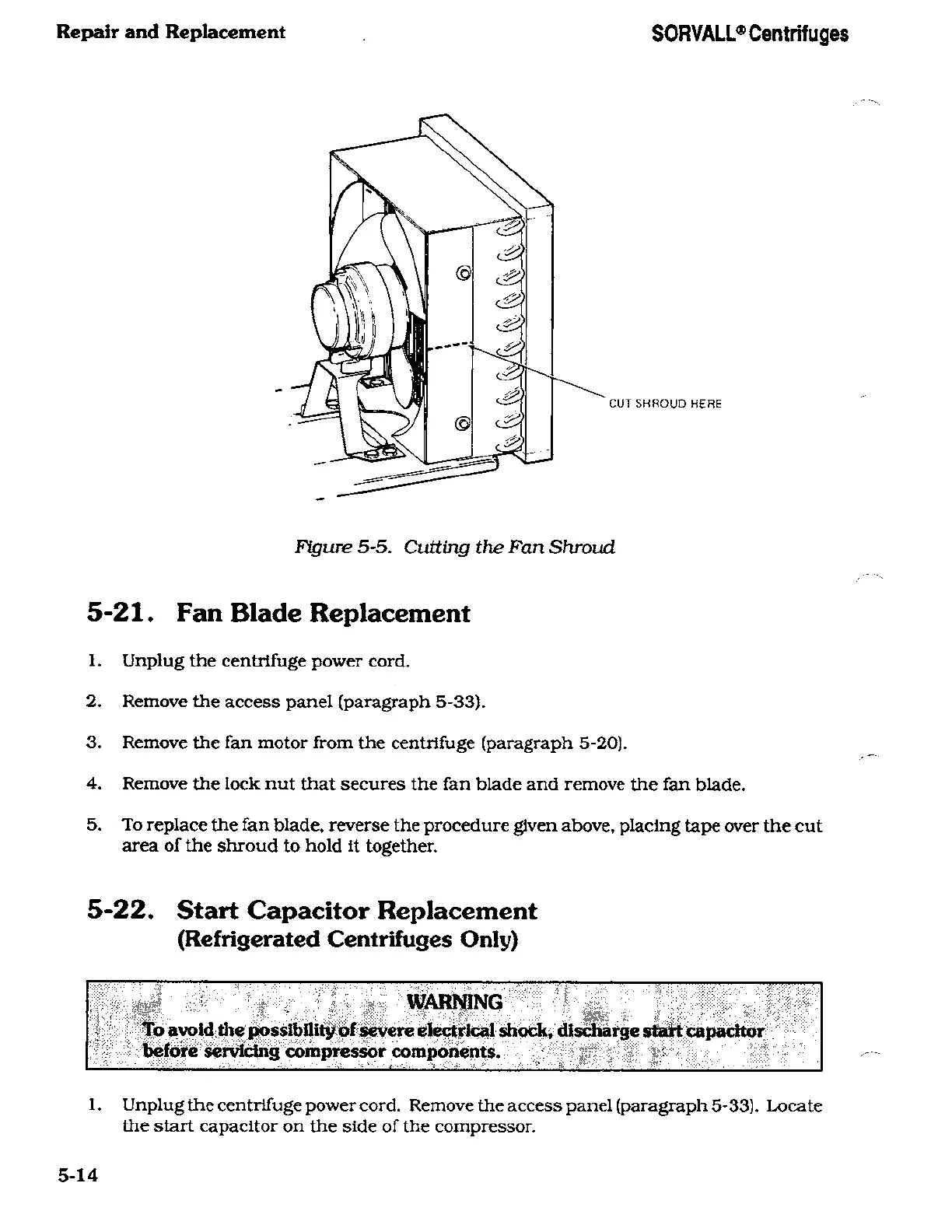

Figure
5-5.
Cutting
the
Fan
Shroud
5-21.
Fan
Blade
Replacement
1.
Unplug
the
centrifuge
power cord.
2.
Remove
the
access panel
(paragraph
5-33).
3.
Remove
the
fan motor
from the
centrifuge
(paragraph
5-20).
4.
Remove
the
lock nut
that
secures
the fan
blade
and
remove
the
fan
blade.
5.
To
replace
the
fan blade,
reverse
the
procedure
given above,
placing
tape
over
the
cut
area
of the
shroud to
hold it
together.
5-22.
Start
Capacitor Replacement
(Refrigerated
Centrifuges
Only)
1. Unplug
the
centrifuge
power cord.
Remove
the
access panel
(paragraph
5-33).
Locate
the
start
capacitor on
the side of the
compressor.
5-14
