If
the
pulley
is
secured
with
set
screws:
a. Apply
Loctite® #222
to
the
set
screws.
b.
Using
the
side of the
pulley
height
gauge
(PN
07831)
marked
GYRO,
measure
the
correct distance
between
the
gyro
and
the
pulley (see figure
5-10).
c.
While
rocking
the
pulley
back and
forth
on
the
shaft, alternately
tighten
the
set
screws
so
that
each
screw seats
properly
on
the flat of the shaft
(see
figure
5-11).
NOTE: THE GROOVE ON THE
MOTOR
PULLEY IS MOUNTED
AWAY FROM
THE MOTOR
WHILE THE GROOVE ON THE
GYRO PULLEY IS MOUNTED
TOWARDS THE
GYRO.
MOTOR
END
OF GAUGE
PULLEY
SET
SCREWS

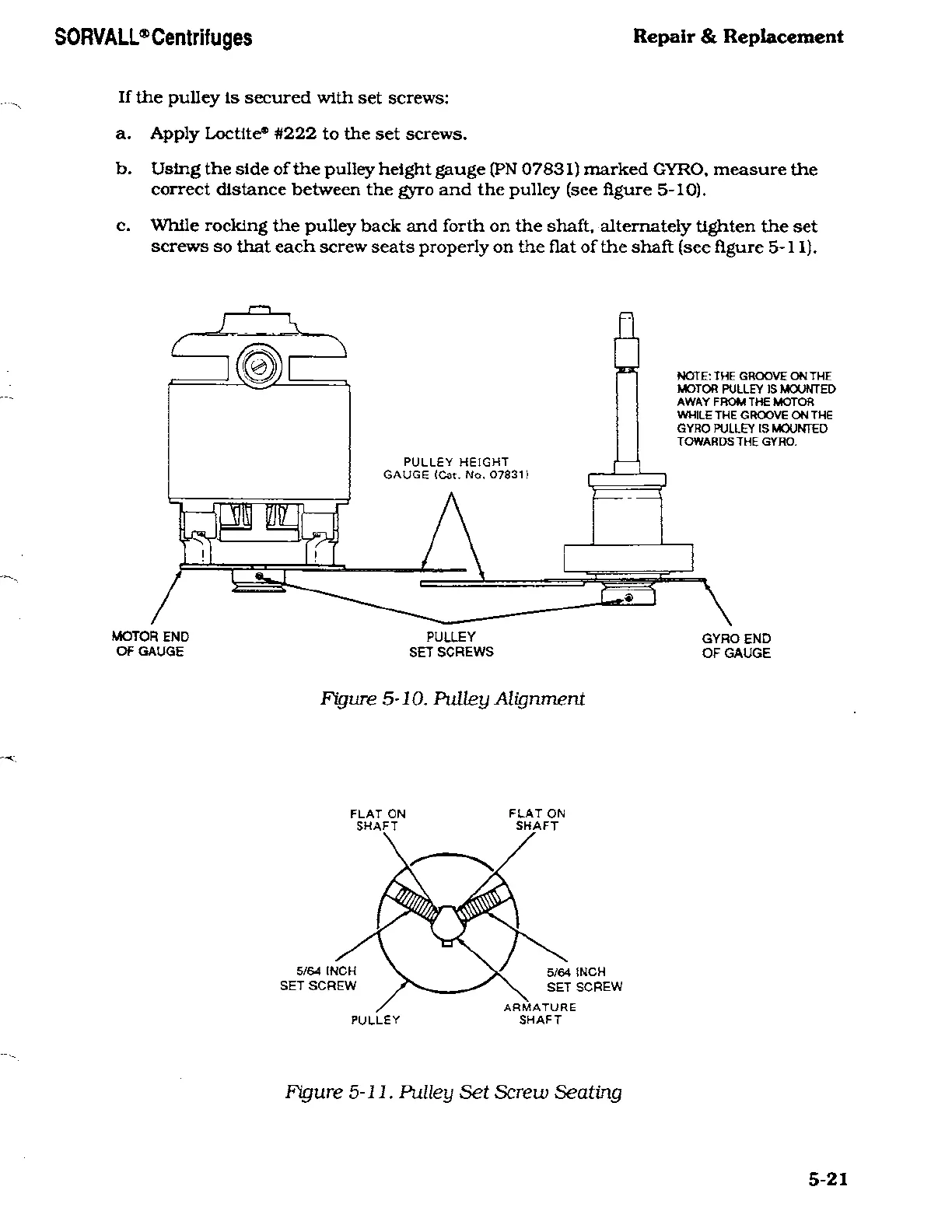

Figure
5-10.
Pulley Alignment
GYRO END
OF GAUGE
FLAT
ON
SHAFT
5/64
INCH
SET SCREW
FLAT ON
SHAFT
5/64
INCH
SET
SCREW
PULLEY
ARMATURE
SHAFT
Figure
5-11.
Pulley
Set Screw
Seating
