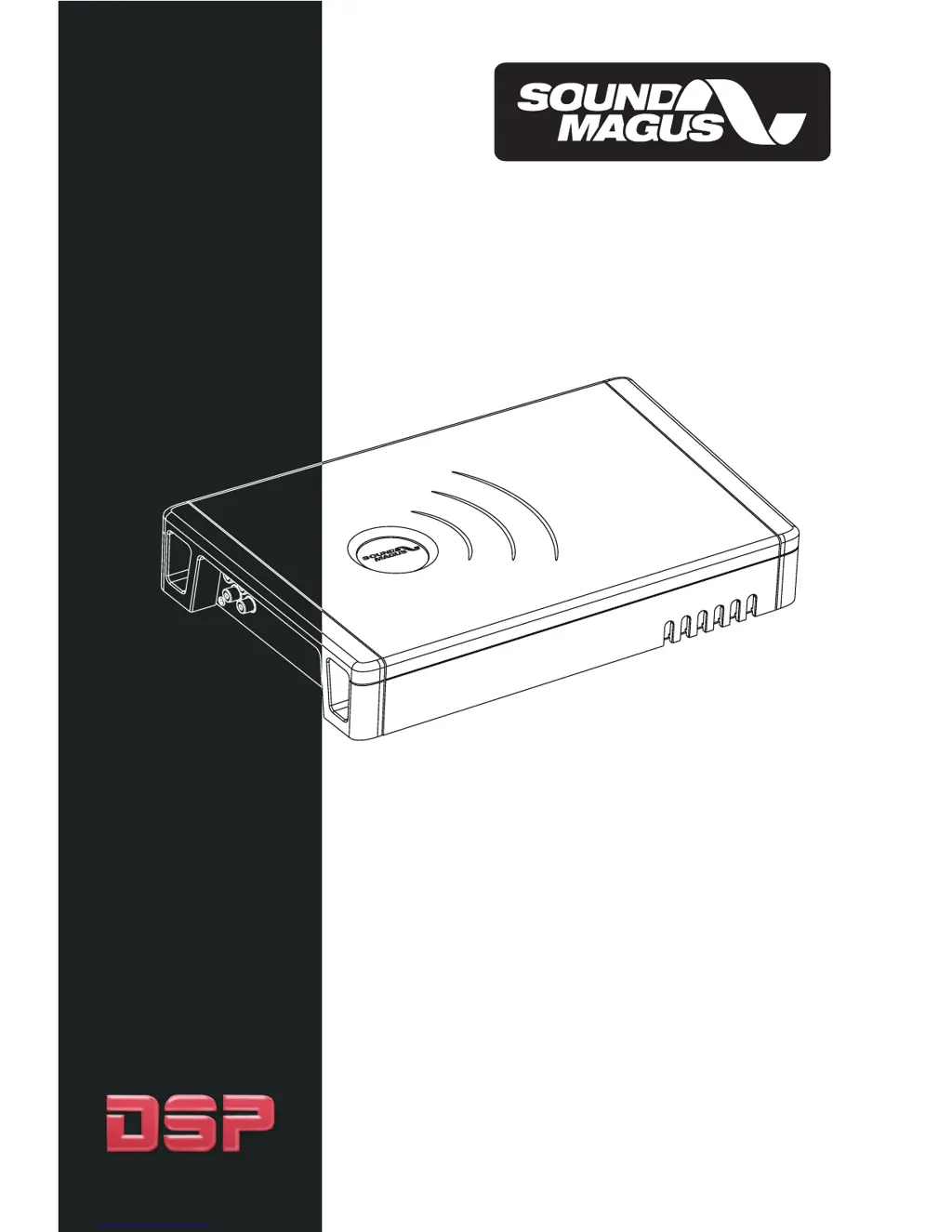

SE90.2 / SE150.2/SE90.4 / SE150.4

SE800.1 / SE1500.1/SE2000.1 / SE3500.1

DSP DIGITAL POWER AMPLIFIERS

OWNER'S MANUAL

Table of Contents

Questions and Answers

B
Brandon MillerAug 4, 2025
What to do if the Protection LED comes on in my Sound Magus Amplifier?
- I
  Ian ArmstrongAug 4, 2025
  If the Protection LED on your Sound Magus Amplifier is illuminated, it indicates a potential issue. First, check for short circuits on the speaker leads, as this is a common cause. Also, ensure the speaker load is not beyond the minimum specified. Try removing the speaker lead and resetting the amplifier. If the LED remains on after these steps, the amplifier may be faulty and require servicing.
S
Stacey GreerAug 8, 2025
How to troubleshoot a Sound Magus Amplifier that will not power up?
- D
  Donald GarciaAug 8, 2025
  If your Sound Magus Amplifier is not powering up, there are several things to check. First, ensure you have a solid ground connection. Next, verify that there is battery power at the (+) terminal. After that, inspect all fuses and replace them if necessary. Finally, confirm that the Protection LED is not illuminated, as this can prevent the amplifier from powering on.
R
Ronald MooreAug 12, 2025
Why is my Sound Magus Amplifier producing distorted sound?
- D
  Daniel Bright MDAug 13, 2025
  If you are getting distorted sound from your Sound Magus Amplifier, there are a few things you should check. Make sure the input level control is set appropriately to match the signal level of your head unit, and always try to keep this level as low as possible. Verify that all crossover frequencies are correctly set. Also, check the speaker leads for any short circuits.
T
Tyler TerryAug 17, 2025
What to do if my Sound Magus Amplifier gets very hot?
- J
  Jennifer PatelAug 17, 2025
  If your Sound Magus Amplifier is getting very hot, ensure that the load impedance is correct for your amplifier model. Also, make sure there is adequate air circulation around the amplifier. In some cases, adding an external cooling fan may be necessary.
E
Erik SmithAug 21, 2025
What to check if my Sound Magus Amplifier has no output?
- A
  Amanda HernandezAug 21, 2025
  If you are experiencing no output from your Sound Magus Amplifier, there are several things to check. First, ensure that the RCA audio cables are correctly plugged into the appropriate inputs. Next, inspect all speaker wiring. Finally, check both the head unit output and the amplifier level settings.
C
Charles EvansAug 27, 2025
How to fix high hiss in speakers with a Sound Magus Amplifier?
- E
  Elizabeth ToddAug 27, 2025
  To address high hiss in the speakers connected to your Sound Magus Amplifier, verify that the RCA cable is not shorted to the power ground on the amplifier side. Also, check the amplifier grounding.
J
jennifer34Aug 30, 2025
Why is the output low on my Sound Magus Amplifier?
- C
  Christopher PughAug 30, 2025
  If you're experiencing low output from your Sound Magus Amplifier, try resetting the level control. Also, check the crossover control settings.

Summary

Controls and Functions Overview

+12 V Power Connection

Remote Turn-On Terminal

Ground (GND) Connection

RCA Input Jacks

Pre-Installation Guide

Amplifier Installation Process

Physical Installation Steps

Details mounting the amplifier using screws and attaching plastic end caps securely.

Wiring Diagram: Single Channel Models

Wiring Diagram: Dual Channel Models

Wiring Diagram: Four Channel Models

Amplifier and Wi-Fi Connection

Wi-Fi Adapter Physical Connection

Details the physical connection steps for the Wi-Fi adapter (WAP-1) and amplifier.

Wireless PC Software Setup

Guides on connecting the amplifier wirelessly to a PC via Wi-Fi and using the DSP software.

Troubleshooting Common Issues

Technical Specifications

Sound Magus SE800.1 Specifications

General

Amplifier Class	D
Number of Channels	1
RMS Power at 1 Ohm	800W
Frequency Response	10Hz - 250Hz
Subsonic Filter	10Hz - 50Hz
Bass Boost	0 - 12dB
Input Sensitivity	0.2V - 5V
Signal to Noise Ratio	>90dB
RMS Power at 2 Ohms	500W
RMS Power at 4 Ohms	300W
Low Pass Filter	50Hz - 180Hz
