UR2170 / English Instruction Manual
2

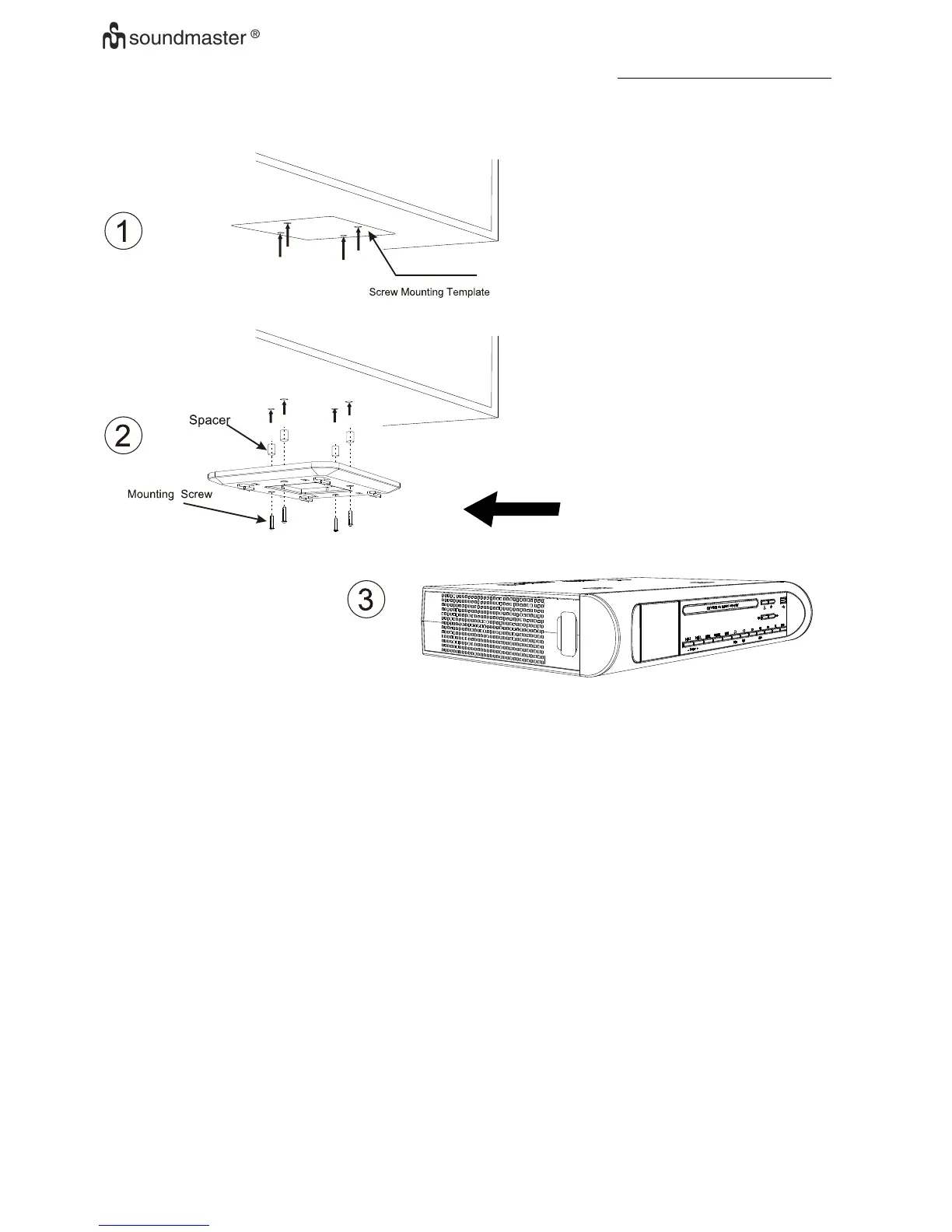

Assembly Drawing
Install the unit as below 3 steps:
1) Place the mounting/drill template under the cabinet with tape, so the unit will be located
where you want to and drill four holes with diameter 1/16 inch drill bit.
2) Fasten the screw as the above drawing with supplied Spacer+ mounting bracket+ long
screw or mounting bracket + short screw
3) Buckle the unit to the mounting bracket
Warning: To prevent damage, do not place any heating or cooking appliance beneath
the unit, install the unit as far as possible from a source of noise such as fridge,
microwave oven etc.
