500 Series Control System and Siren Amplifier

ENGSA5(xxxSx)Rev. D - 07/2021

CONTROL PANEL BUS #2 (CONSOLE) DATA BUS EXAMPLES

CONTROL PANEL BUS #2 EXAMPLE

CONTROL PANEL*

PA Mic

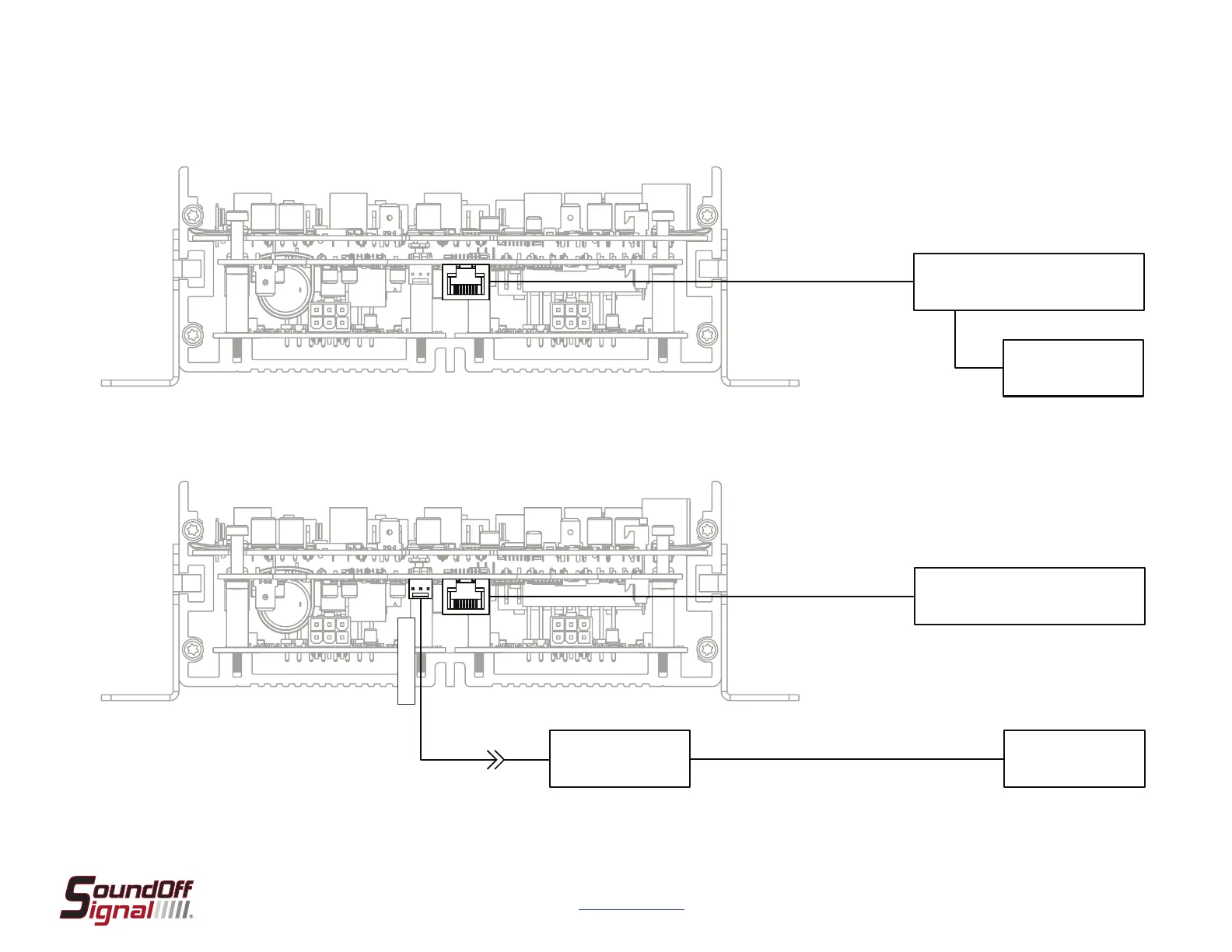

Console or Remote Control Panel with PA Connection at Control Panel (Inside View)

CONTROL PANEL*

PA Mic

Mic Jack

Kit -

PSRN5HDK3

Remote Control Panel with PA Connection at the Siren (Inside View)

Connector

*Any remote bluePRINT Control

Panel can be installed, including

remote push button, rotary, or

handheld.
