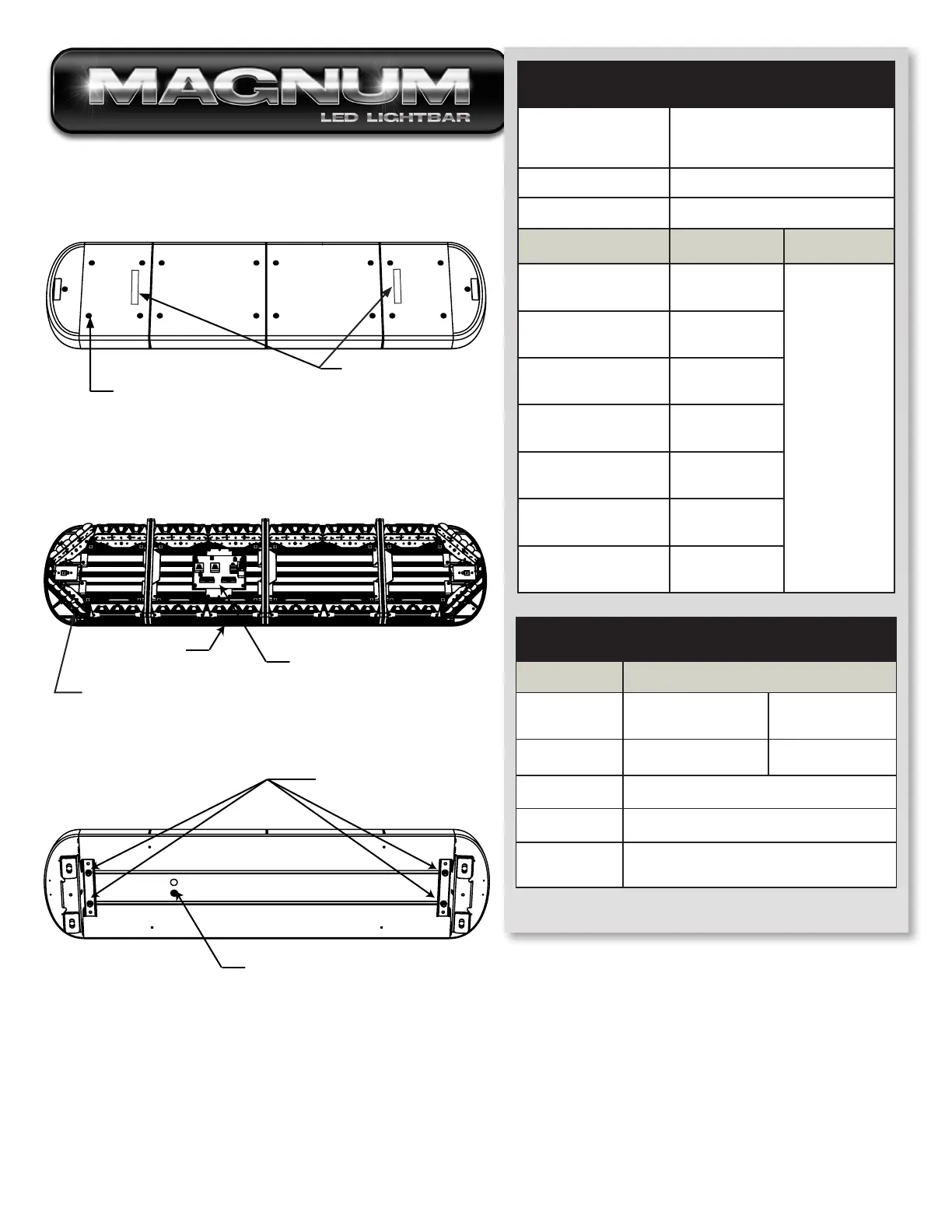

#EMG2000 MAGNUM™ DC LED Lightbar
EMG2000-DC 10.15
3
Wire Exit Holes
5/16 Carriage Bolts for
Mounting Feet of Lightbar
BOTTOM VIEW
TOP VIEW WITH COVERS OFF
TOP VIEW WITH COVERS ON
TOP COVER SCREWS
MODEL NUMBER
& SERIAL NUMBER
LOCATIONS
INBOARD LED
MODULES
MAIN ELECTRICAL
BOARD
CORNER MODULE
POWER SPECIFICATIONS
Input Voltage Range: 10 -16 Vdc
Light Bar
Component
Current Draw
(Average = Flashing)
Power Consumption
(Watts)
Standby Current .022 Amps .28 Watts
Reverse Polarity Fuse Protected
Load Dump Protected
Wiring
Power Cable 15ft 10 AWG Wires, (+) Red, (-) Black
Data Cable 15ft RJ-45 Type
TECHNICAL SPECIFICATIONS
Material:
Aluminum Base, Nylon base end
caps, polycarbonate outer lenses,
acrylic inner lenses .
Roof Attachments: 1/4" bolt Stainless A2
Operating Temperature:
-40º to +65º C
LENGTH # OF INBOARDS DIMENSIONS
23" 2
12.4"D x 2.3H
inboard
35.5" 4
41.8" 5
48" 6
54.3" 7
60.5" 8
73" 10
Optional 16ft. 22AWG 12 conductor Direct Connect Harness
