#EMG2000 MAGNUM™ DC LED Lightbar
EMG2000-DC 10.15
9
# Pattern Name Sequence fpm* fps**
1 Quint Alternating 70 1.18
2 Warp Alternating 350 5.88
3 Inter-Cycle Flash Alternating - -
4 Quad Flash Alternating 80 1.35
5 RoadRunner Alternating 115 1.92
6 RoadRunner Simultaneous 115 1.92
7 Slow Runner Alternating 70 1.16
8 Slow Runner Simultaneous 70 1.16
9 Q-Switch Variable - -
10 Single, Steady Burn Steady Burn 115 1.92
11 Quad, Steady Burn Steady Burn 80 1.35
12 Warp, Steady Burn Steady Burn 350 5.88
13 Nothing, Steady Burn Steady Burn - -
14 E-Single Flash Alternating 125 2.08
15 E-Double Flash Alternating 125 2.08
16 E-Single Flash Simultaneous 125 2.08
17 E-Double Flash Simultaneous 125 2.08
18 Warp 1,2,3,4 Variable - -
19 Warp 2,3,1 Variable - -
20 Warp 3,2,1 Variable - -
21 Steady Burn Steady Burn - -
*fpm=Flashes per Minute
**fps=Flashes per Second
Wire Color Standard Functions
Pink Take Downs
Orange Alley Driver Steady Burn
Violet Left Turn
Red Stop
Tan Corners
Black Low Power
White Pattern Select
Brown Alley Passenger Steady Burn
Gray Inboards 2, 3
Blue Inboards 1
Green Right Turn
Yellow Tail
Low Power (Standby) Mode
If there is no +Vdc input to the 12 conductor discrete wire harness for 180 seconds the lightbar will go into a "Standy" mode. The standby mode is a low power
mode that is used to extend the life of your battery. The lightbar will awaken from the Standby mode if any input (except pattern select) is connected to +Vdc.
DRAIN WIRE
BLACK 12 GA.
GROUND
40Amp FUSE
(Customer Supplied)
GROUND
RED
12
G
A.
POWERCABLE

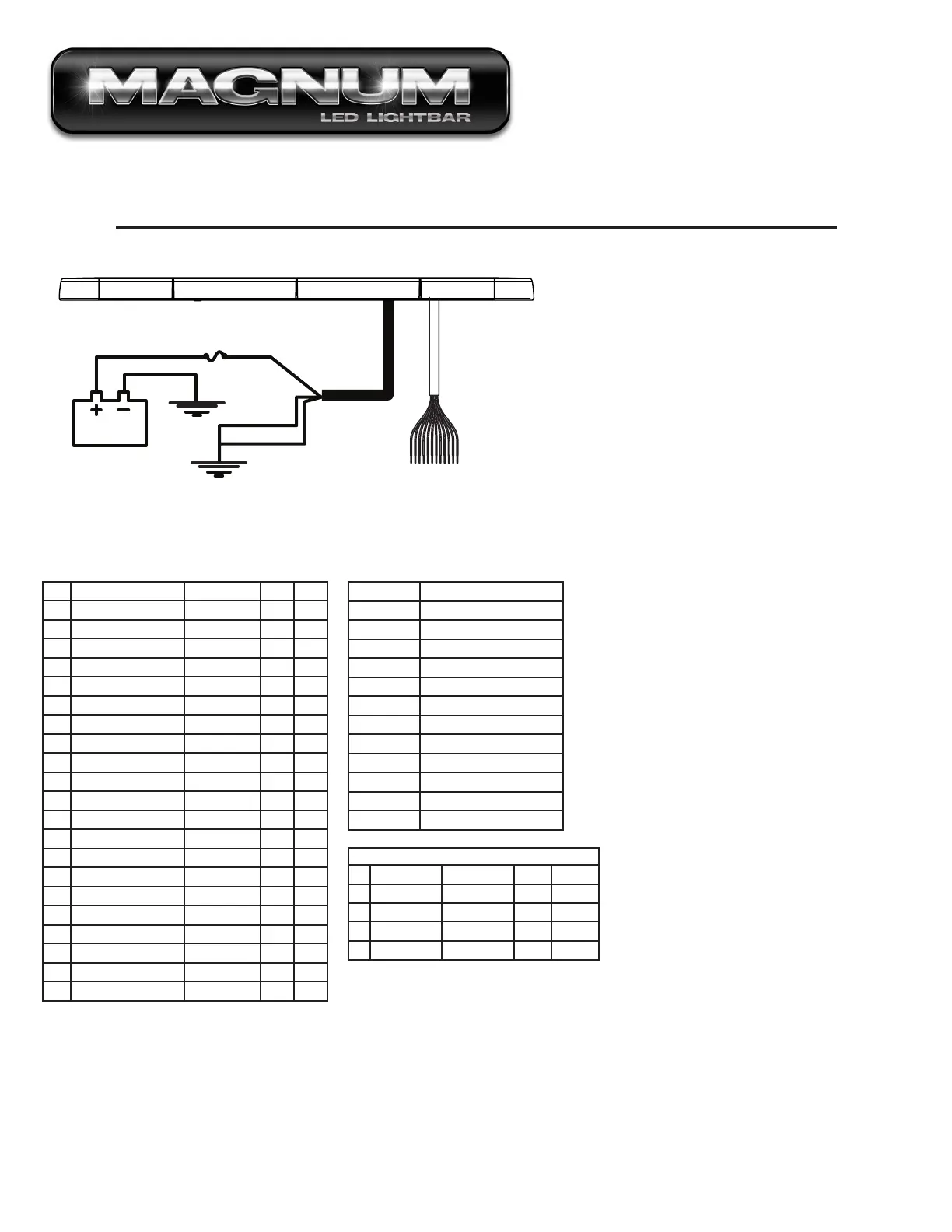

DIRECT CONNECT FLASH PATTERNS AND CONNECTOR INSTRUCTIONS
LED Take down Flash Pattern
1 Road Runner Alternating 115 1.92
2 PowerPulse Alternating 180 3.00
3 Q-Switch Variable - -
4 ETM Simultaneous 214 3.57
5 Steady Burn Steady Burn - -
Note: Alley Driver & Passenger
are Steady Burn only
Auxiliary Output
The lightbar is equipped with one 3.5A auxiliary output.
Connect +10-30Vdc or an external flasher output to
Aux_In using a .250" female spade terminal or apply
power to the Pink wire for activation. Connect ground
and power of Auxiliary Light to GND and AUX_OUT
using .250" female spades.
*Refer to page 11 for input group
control and switch setting
