#EMG2000 MAGNUM™ DC LED Lightbar
EMG2000-DC 10.15
5
1. Keeping the lightbar level with the road, attach
Mounting Feet to the roof of the vehicle using the 2
supplied Carriage Bolts. If the lightbar needs to be
leveled, a 1.5° wedge has been provided.
2. Place lightbar centered on the roof, and hold brack-
ets up to the lightbar. A 1/4" to 1/2" gap should be be-
tween the hook bracket and front wall of the mounting
foot prior to putting any tension on the hook bracket
bolt (See Figure 3). Adjust the mounting foot position
to accomodate for this gap.
3. Tighten hook bracket bolts with max torque 10in-
lbs. DO NOT OVERTIGHTEN! Bar is secure
once split lock washer has been compressed. Using
holes in the hook bracket as a template, drill 4 holes in
the roof using the appropriate size drill. Secure hook
bracket to roof with 4 screws on each side.
4. Install the cover door over the hook bracket bolt to
finish the assembly. Place tab of one side into place
and then push the second tab into place with a flat-
head screw driver.
FIXED HEIGHT BRACKETS AND
HOOK MOUNTING
!
WARNING
Route wires only in locations that are not subjected to
potential wear. Make sure to avoid routing wires in the
deployment area of your air bag. Refer to your vehicle’s
owner’s manual for airbag deployment zone.

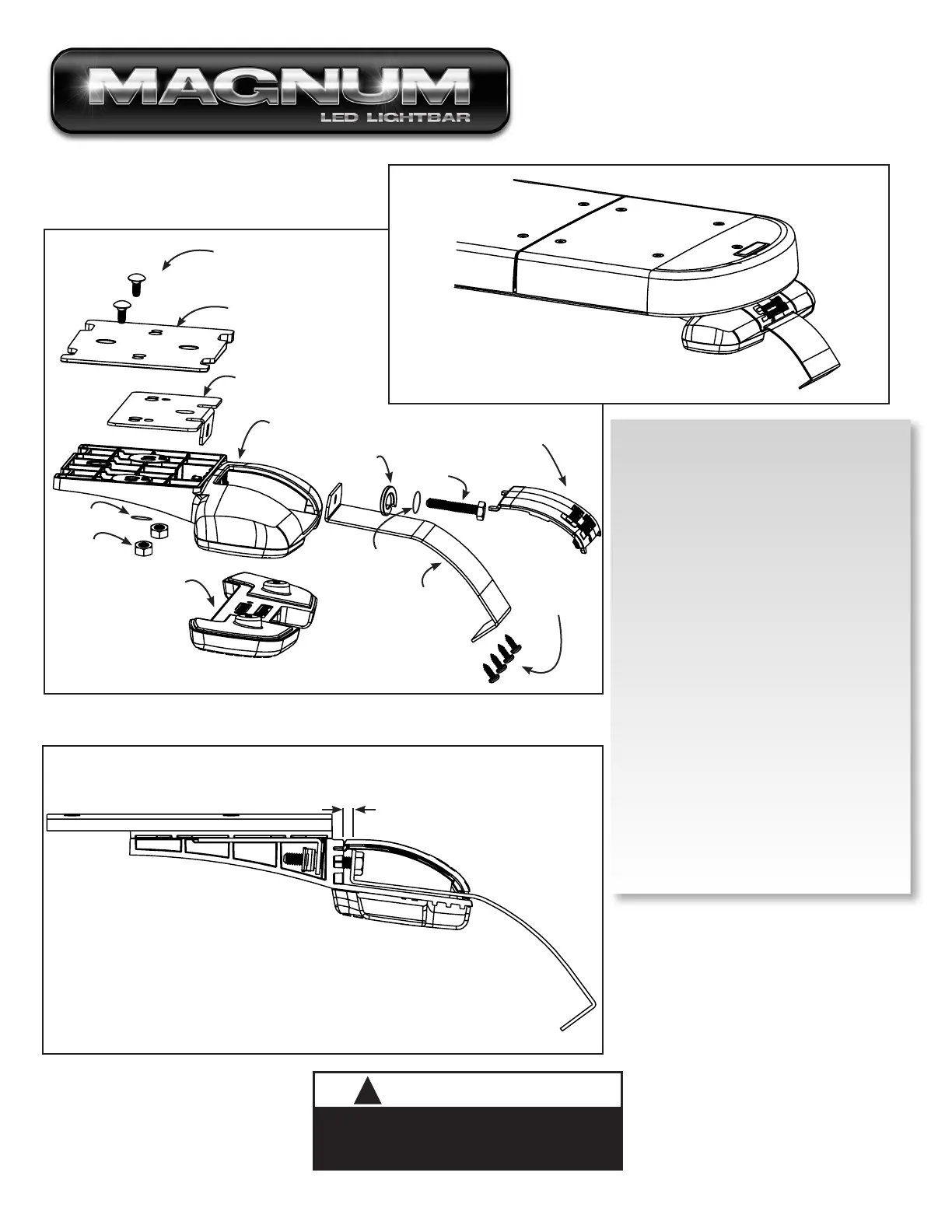

1/4" - 1/2" Gap Required
Figure 1.
Figure 2.
Figure 3.
Carriage Bolts x2
(1st slid into extrusion)
1.5°
Metal Nut Bracket
Mounting Foot
Hook Bracket
Hook Bracket Bolt
Hook Bracket
Cover Door
Flat Washer
Lock Nut
Rubber
Flat Washer
Split Ring Lock Washer
#8-1/2" Truss Head
Sheetmetal screw
Premium Fixed Height Foot
