Soundoff Signal pinnacle User Manual

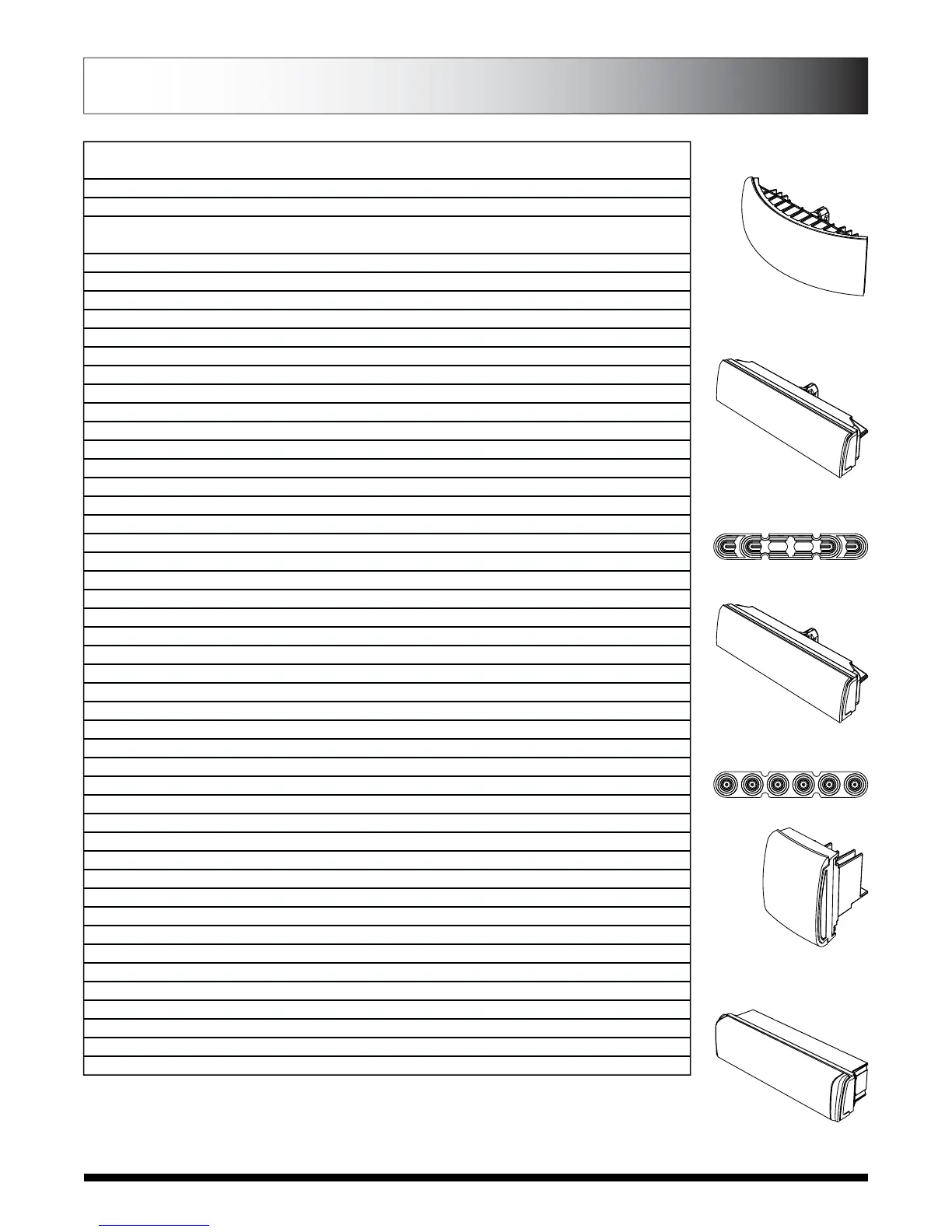

REPLACEMENT PARTS
Inboard LED Assembly
Alley Light Assembly
Takedown/Worklight/
Assembly
Corner LED Assembly
Pre-empt Module
EPL PART # DESCRIPTION
PEPL9A0C Pinnacle Blank Alley Light - Clear Lens/No LEDs
PEPL9A1C-D Pinnacle Alley Light, 15° Forward Facing, Driver Side - Clear Lens/White LEDs
PEPL9A1C-P Pinnacle Alley Light, 15° Forward Facing, Passenger Side - Clear Lens/White LEDs
PEPL9A2C Pinnacle Alley Light, Standard - Clear Lens/White LEDs
PEPL9BBHNS Pinnacle Breakout Box Harness, 12" Length
PEPL9BBHNL Pinnacle Breakout Box Harness, 36" Length
PEPL9CNTRL1 Pinnacle Motherboard, 12 volt
PEPL9CS12AA Pinnacle Corner Module - Amber Lens/Amber LEDs
PEPL9CS12AC Pinnacle Corner Module - Clear Lens/Amber LEDs
PEPL9CS12BB Pinnacle Corner Module - Blue Lens/Blue LEDs
PEPL9CS12BC Pinnacle Corner Module - Clear Lens/Blue LEDs
PEPL9CS12GC Pinnacle Corner Module - Clear Lens/Green LEDs
PEPL9CS12RC Pinnacle Corner Module - Clear Lens/Red LEDs
PEPL9CS12RR Pinnacle Corner Module - Red Lens/Red LEDs
PEPL9CS12WC Pinnacle Corner Module - Clear Lens/White LEDs
PEPL9HL6C Pinnacle Takedown/Work Light Module - Clear Lens/White LEDs
PEPL9L00A Pinnacle Blank Inboard Module - Amber Lens/ No LEDs
PEPL9L00B Pinnacle Blank Inboard Module - Blue Lens/ No LEDs
PEPL9L00C Pinnacle Blank Inboard Module - Clear Lens/ No LEDs
PEPL9L00R Pinnacle Blank Inboard Module - Red Lens/ No LEDs
PEPL9LLSAA Pinnacle Inboard Module - Amber Lens/Amber LEDs
PEPL9LLSAC Pinnacle Inboard Module - Clear Lens/Amber LEDs
PEPL9LLSBB Pinnacle Inboard Module - Blue Lens/Blue LEDs
PEPL9LLSBC Pinnacle Inboard Module - Clear Lens/Blue LEDs
PEPL9LLSGC Pinnacle Inboard Module - Clear Lens/Green LEDs
PEPL9LLSRC Pinnacle Inboard Module - Clear Lens/Red LEDs
PEPL9LLSRR Pinnacle Inboard Module - Red Lens/Red LEDs
PEPL9LLSWC Pinnacle Inboard Module - Clear Lens/White LEDs
PEPL9LLSFC Pinnacle Dual Color Arrow Module, Clear Lens – White/Amber
PEPL9LLSKC Pinnacle Dual Color Arrow Module, Clear Lens – Red/Amber
PEPL9LLSMC Pinnacle Dual Color Arrow Module, Clear Lens – Blue/Amber
PEPL9LLSPC Pinnacle Dual Color Arrow Module, Clear Lens – Green/Amber
PEPL9LLSZC Pinnacle Dual Color Arrow Module, Clear Lens – No LEDs/Amber
PEPL9LLSJC Pinnacle Dual Color Warning Module Clear Lens - Red/Blue
PEPL9LLSNC Pinnacle Dual Color Warning Module Clear Lens - Blue/Green
PEPL9RFGR Roof Wire Grommet for External Break Out Box on Pinnacle Lightbars
PETLJ00 External Breakout Box for ETL 5000 & Pinnacle Lightbars
PETLK00 Adjustable Height Mounting Bracket (1 bracket) for use w/ ETL 5000 & Pinnacle Lightbars
PETLK04
Low Profile Fixed Height Mounting Bracket (1 bracket) for use w/ ETL 5000 & Pinnacle Lightbars
PETLMX1
Hook Kit Extension for use w/ Adjustable Height Bracket on ETL 5000 & Pinnacle Lightbars
PETLM00
Permanent Mount Hardware for the Adjustable Height Bracket for use w/ ETL 5000 & Pinnacle Lightbars
PETLM(nn)
Adjustable Height Bracket Hook Kit for ETL 5000 or Pinnacle Lightbars:*
PETLR00
Permanent Mount Hardware for the Low Profile Fixed Height Bracket for use w/ ETL 5000 & Pinnacle Lightbars
PEPL9GTT1C Pre-empt Module
PEPL9RFGR2 Roof Grommet
PEPL9GTTHN Harness
PEPL9LLH12(x)C Pinnacle High Diode Dual Color Rear Arrow Module
* SEE "HOOK KIT COMPATIBILITY CHART" FOR VEHICLE MODEL COMPATIBILITY
http://www.soundoffsignal.com/warnamber/lightbars/literature/HookKits_ETL5000.pdf
STANDARD REPLACEMENT PARTS
Page 16
