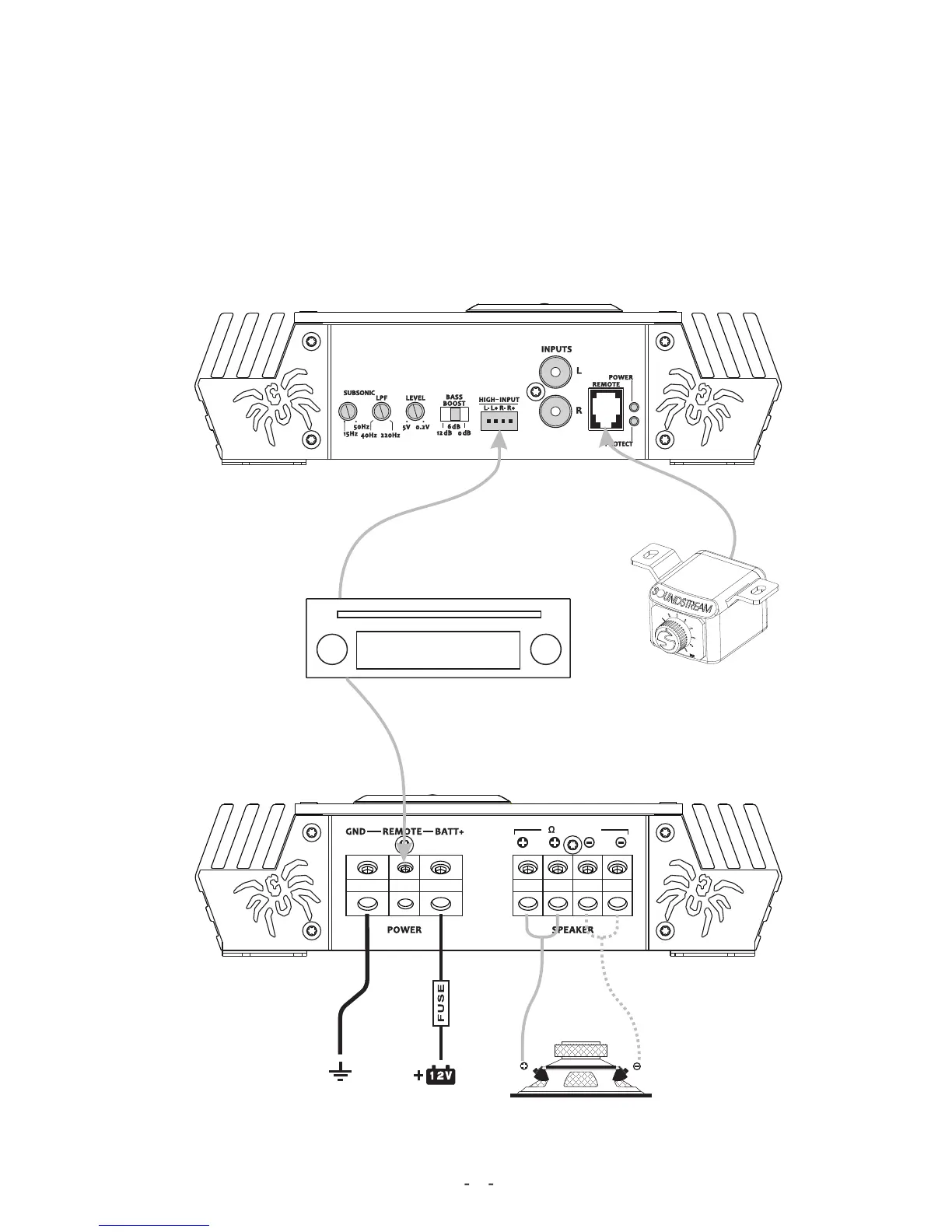

Fig 7.Mono amplifier wiring
(High level input mode)
L1.600D/L1.1100D/L1.1600D/L1.2100D
Minimum
1
Source Unit
REMOTE signal
RCA signal
Minimum
1
Fig 6.Mono amplifier wiring
(1 woofer load)
WIRING DIAGRAM
Source Unit
REMOTE signal
R
CA signal
L1.600D/L1.1100D/L1.1600D/L1.2100D
9 10
