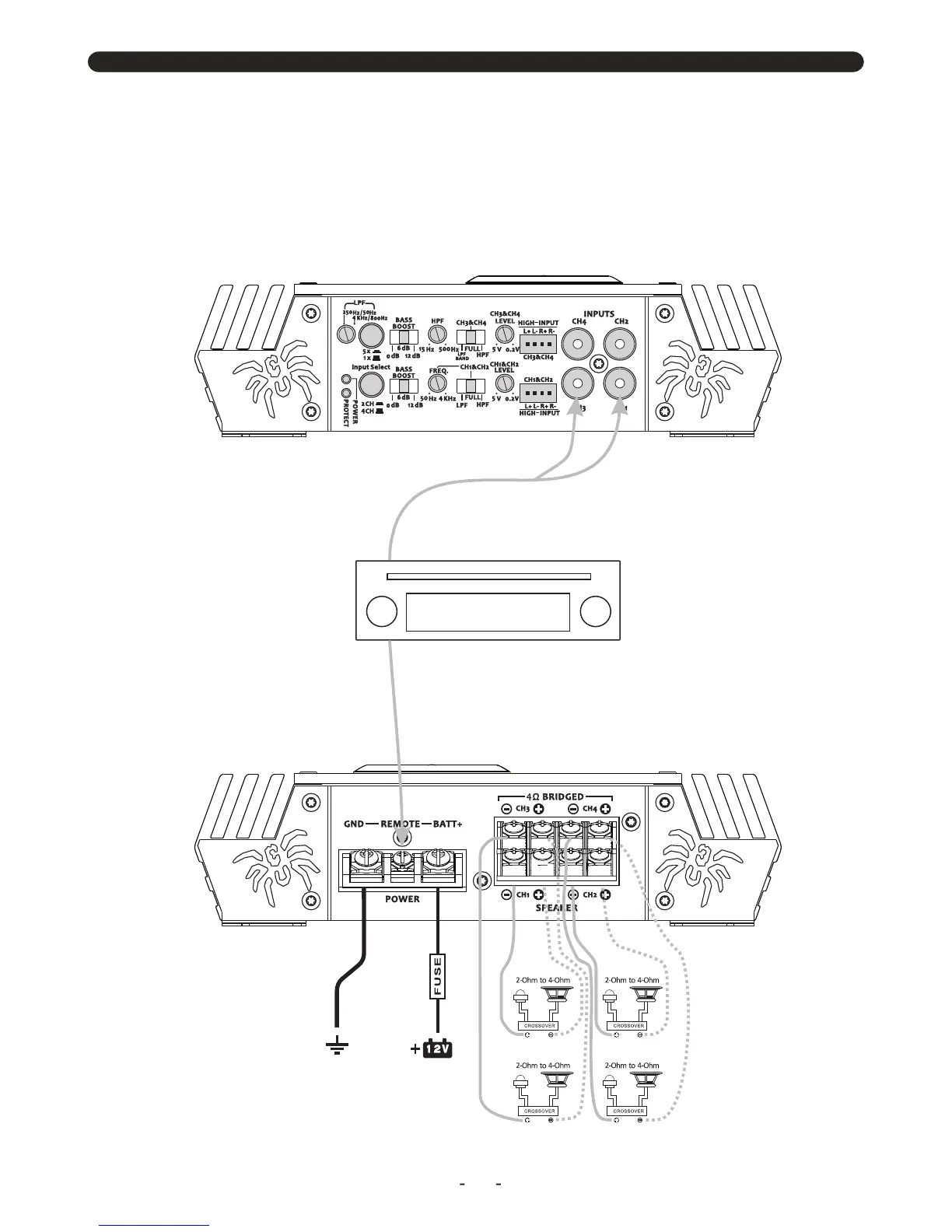

Fig 10. L2.290/L2.400 wiring
(High level input & Bridged mode)
Source Unit
REMOTE signal
RCA signal
Fig 11. L4.480/L4.540 wiring
(High level input & Bridged mode)
Source Unit
REMOTE signal
RCA signa
l
