1. Remote Level Control Connection
Connect the remote level control to this terminal. The remote level
control allows adjustment of the subwoofer level from a remote
location in the vehicle.
2. Low Pass Crossover
Adjust the frequency setting of the low pass crossover. The
frequency range is 40Hz-220Hz. Frequencies higher than the
3. Subsonic Crossover
Adjust the frequency setting of the subsonic crossover. The
frequency range is 20Hz-38Hz. Frequencies lower than the setting
4. Protection Indicator LED
red. Refer to the Troubleshooting Guide for possible solutions if
5. Power Indication LED
LED will illuminate green. Refer to the Troubleshooting Guide
6. Level Sensitivity
sensitivity level is 200mv, while the maximum level is 6V.
7. RCA Audio Input Connection
Using high quality shielded stereo RCA cables, connect the
8. RCA Audio Output Connection
Using high quality shielded stereo RCA cables, connect the
audio signal to the RCA audio inputs of additional system
components.
9. Bass Boost
TN1.1200D Pre-Amp

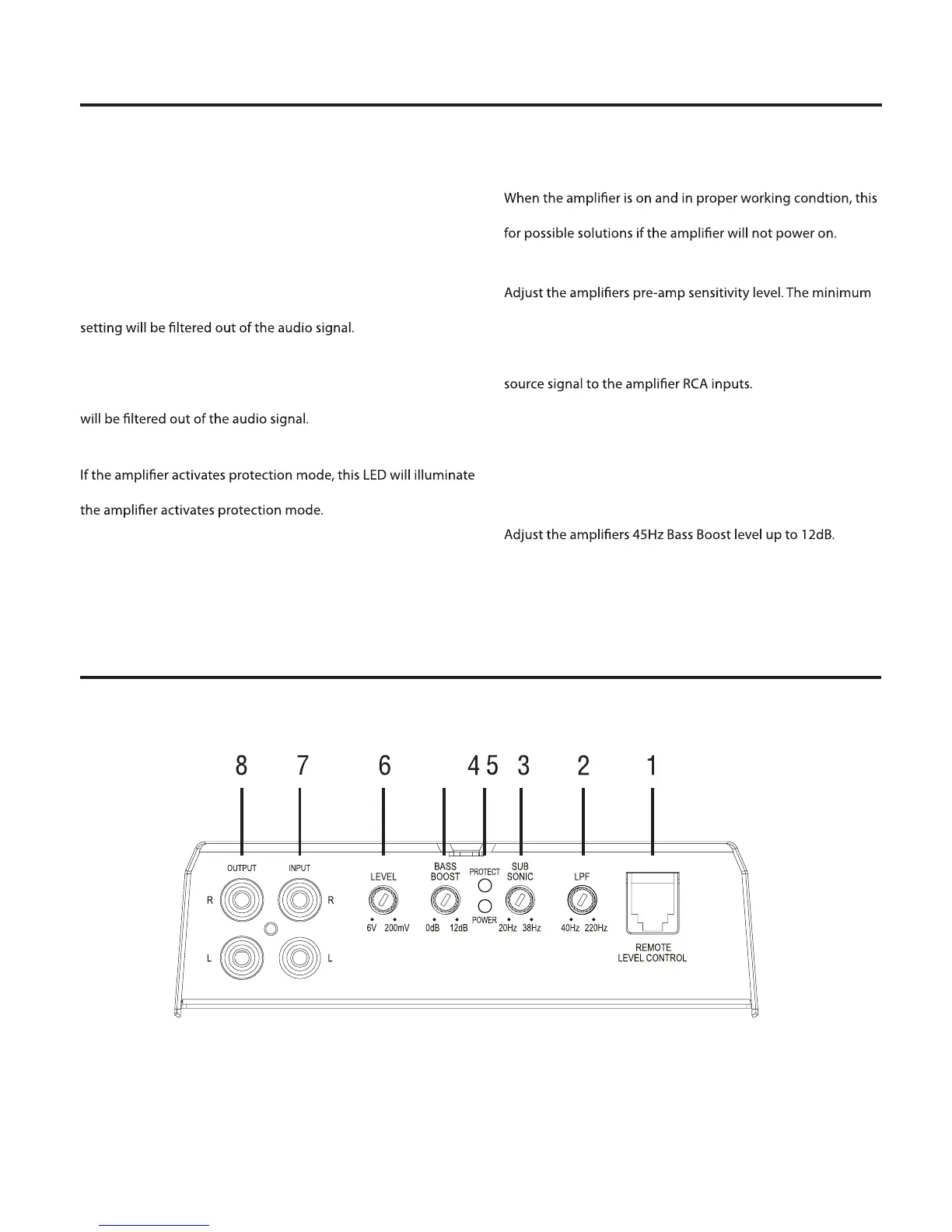

TN1.1200D Pre-Amp Panel
9
TN1.1200D
