TN1.1200D Wire Connections

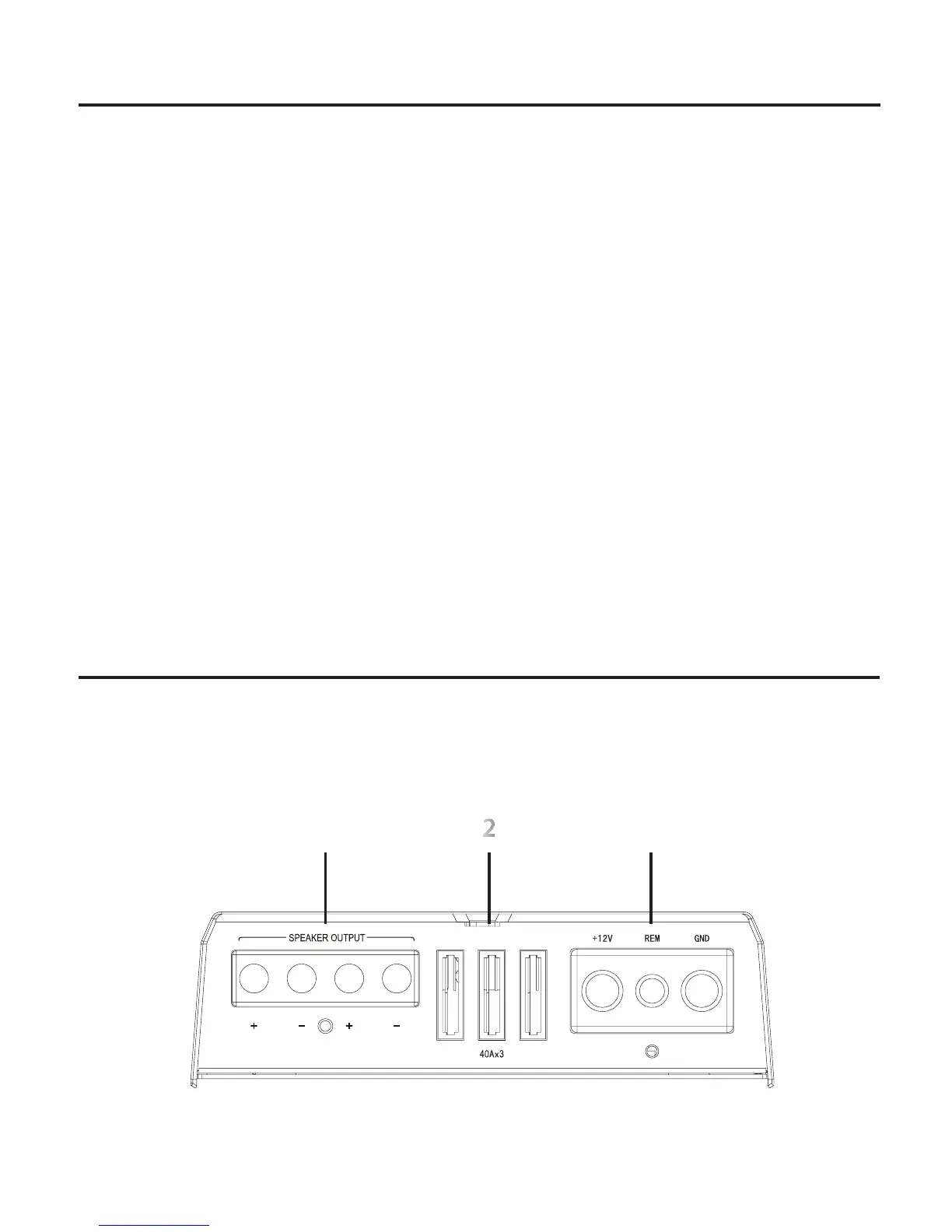

TN1.1200D Wire Connections End Panel
1. Power Connection Terminal
GND Connect good quality 8ga. ground wire to the nearest
vehicle chassis ground. Take a moment to properly prepare the
ground location for the best ground.
REM Connect the remote turn-on output of the source unit to
the r
emote terminal.
+12V Connect good quality 8ga. power wire to the vehicle’s
battery. Always protect the vehicle by using a fuse within 18”
from the battery.
2. Fuses
The fuses protect the amplier from internal electrical damage
if overloaded. In the event they fail, replace with similar type
and amperage value. Using a higher amperage value may lead
to electrical damage and is not consider
ed covered by the
limited warranty.
3. Speaker Connection Terminal
Connect the subwoofer(s) to the corresponding (+) & (-)
terminals. If only one subwoofer with 1Ω is used, use only one
(+) & (-) terminal. If two subwoofers are used with 2Ω each, use
one (+) & (-) terminal for each subwoofer.
NOTE: Two subwoofers with 1Ω each CAN NO
T be connected to
separate (+) & (-) terminals. The woofers should be rst series
wired together for 2Ω, then use only one (+) & (-)
