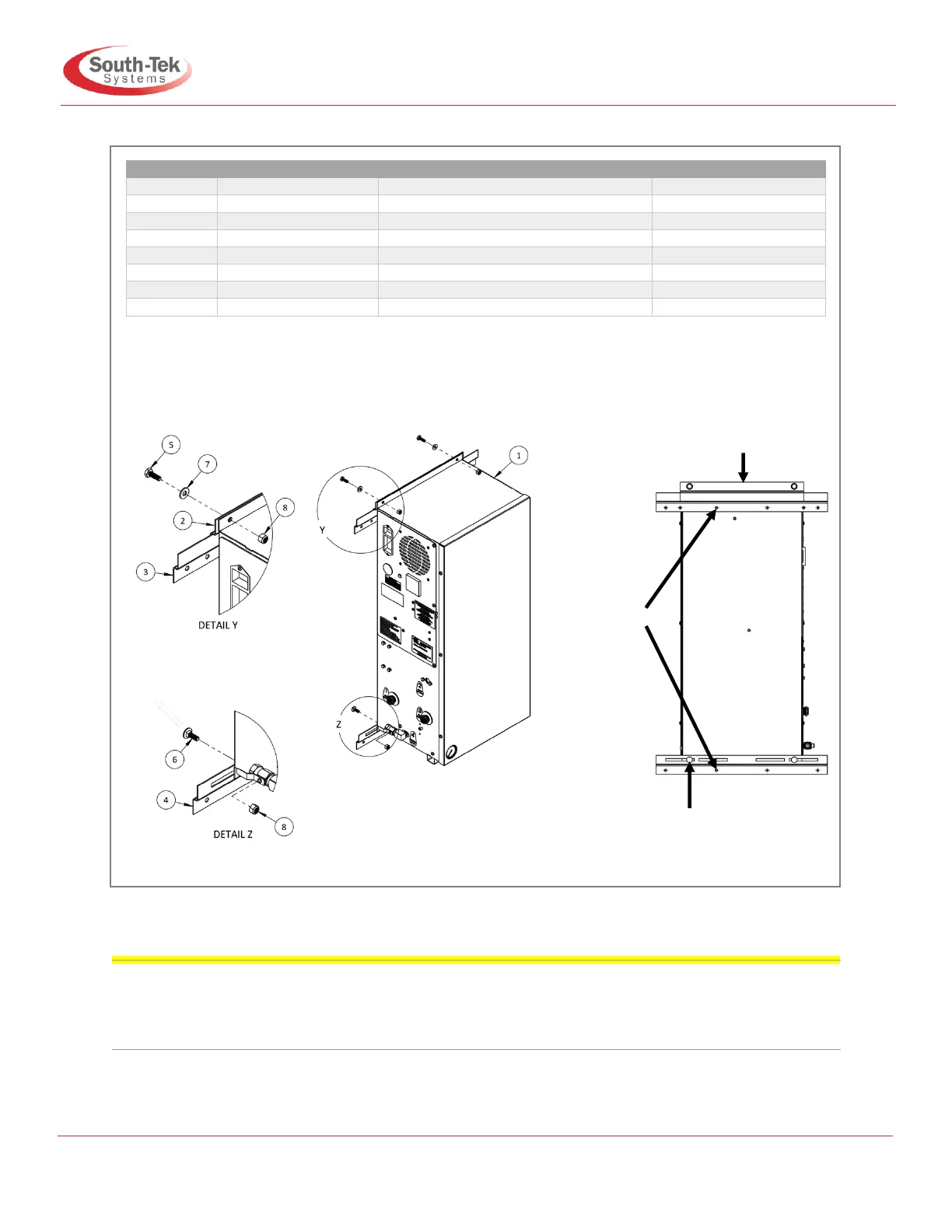

Figure 2: Wall mounting instructions
Note: Install in a location where 6” minimum clearance is available on the sides. Leave 36” minimum on the
front side for maintenance access. Do not install near a heat source or where steam or water is present.
Improper installation may result in bodily harm or damage to the system, as well as voiding the system’s
warranty.
Item #
STS Part #
Description
QTY
1
TYP1P UNIT
TYP1P Unit Shown
1
2
800-133
S-100/200 Mounting Bracket
1
3
800-134-B
TYP1 (18in) Mounting Bracket
1
4
800-129
100/200 Lower Wall Mount Bracket
1
5
002-382
.250” -20 x 0.750” HHCS
2
6
REFERENCE
0.250” -20 x 0.750” Carriage Bolt
2
7
REFERENCE
0.250” Flat Washer
2
8
REFERENCE
0.250” NYLock Nut
4
Fasten bracket securely
to cabinet as in Detail Y
Bracket
should be
secured to
wall studs
with ¼”
hardware
Bracket installed with slotted
edge against cabinet
