5.2. Installation Arrangement
See below for basic setup. Refer to the general arrangement drawing for detail instructions included
with the installation package.

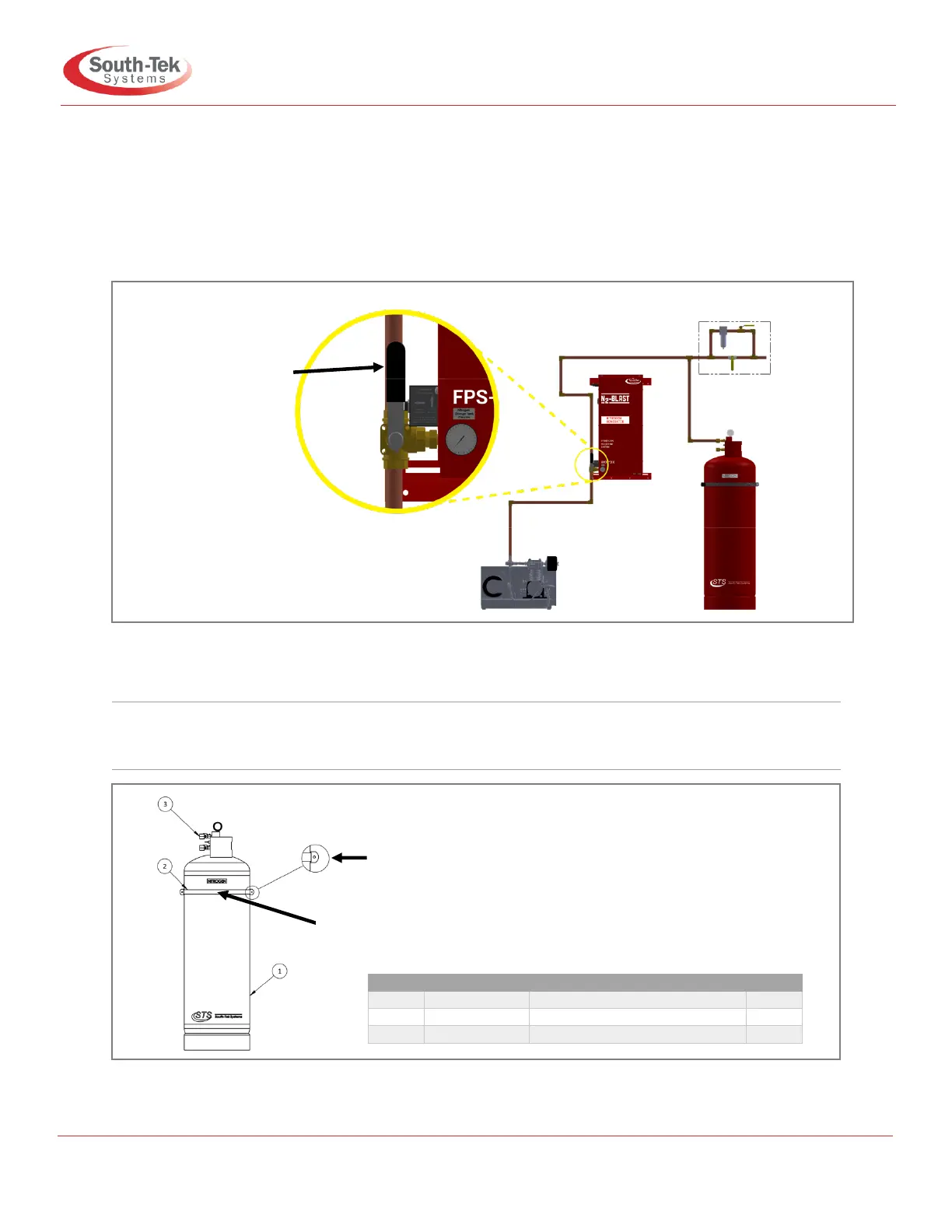

Figure 3: Nitrogen Generator Wall Mount Installation Setup
Note: Nitrogen generator dimensions: 12-3/4” W x 12” D x 27” H (Cabinet dimensions) Nitrogen tank
dimensions: 15” Diameter x 50” H (Recommend 55” for manifold clearance)
Figure 4: FPS nitrogen tank details and connections
Item #
STS Part #
Description
QTY
1
800-111-FPS
100# Red Tank with Label
1
2
A01-0100-A
Tank Strap Assembly
1
3
A01-0100-S-A
Tank Manifold with 0.500” Nozzles
1
Should this handle be
in the closed position,
the generator will be
bypassed by air. This
will light a red indicator
and trigger an alarm if
connected.
Note: Generator is
online and functioning
during this state.
Note: All N2-Blast®
models are factory
equipped with ½” NPT
Female connections.
Air Maintenance device
recommended
Only one line in/out
when using bypass
Nitrogen tank
provided with
brackets and
strap
D-Ring assembly should be
secured to wall using ¼”
hardware (not supplied)
Warp strap around tank and
use plastic clip to secure
tank to wall
