South-Tek Systems N2-BLAST FPS-500 O & M Manual

P
The Leader in Nitrogen Generation Technology
FPS-500 O&M Manual
Revision 2; 3/2020
Page 13 of 30
5.2 Panel Layout and Gas Connections
See figures below for panel layout and gas connections. Double-check all connection locations
before turning on the system or opening any valves. Note: All N
2
-BLAST
®
FPS models are factory
equipped with 1/2" NPT Female connections.

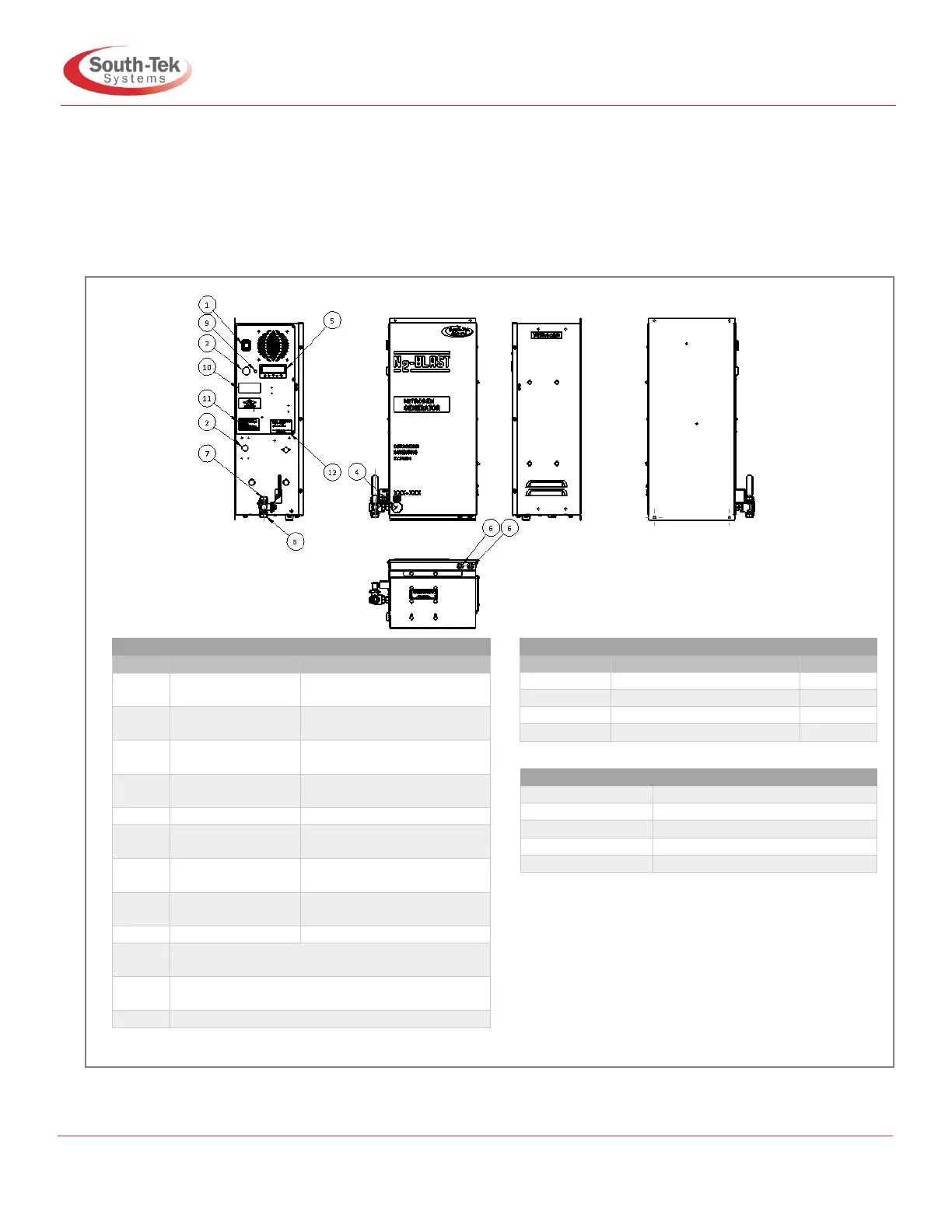

Figure 5: FPS-500 external components and connections
External Components
Item #
Description
Service
1
Circuit Breaker
Switch, 15 AMP
System Main Power Supply
2
½” Trade Size
Conduit Hole
Power Supply
3
Audible Electric
Buzzer
Audible Alarm
4
0-100 PSIG
Pressure Gauge
N2-Storage Tank Pressure
Gauge
5
PLC
Unit Status
6
¼” OD Through-wall
Coupling
¼” OD Drain
7
½” NPT 3 Way Ball
Valve
Air Bypass Top
8
½” NPT 3 Way Ball
Valve
Air in Bottom
9
Red Light
Bypass Indicator
10
UL 508A Open Industrial Control Panel Certification
Label
11
Electrical Panel and Terminal Block Torque
Specifications Label
12
Product Serial Number Label
(FRP-007) Filter Replacement Kit
STS Part #
Description
Qty
900-135
Pre-Compressor Filter
1
900-137-MB
Particulate Filter Element
1
900-140-MB
Coalescing Filter Element
1
120-020-E
Replacement O-Rings
2
Design Data
N2 Out Pressure
Up to 70 PSI
Electrical Option 1
110V / 60Hz / 1 Phase, 3.3 AMPs
Electrical Option 2
220V / 50Hz / 1 Phase, 1.4 AMPs
Noise Level (dB)
<60
Weight
84 lbs.
