7.2. Normal Run/Standby Mode
“Running” mode is when the FPS-500 is producing nitrogen and supplies it to the storage tank. The
system will automatically enter “Standby” mode when the tank is fully pressurized (65-75 PSIG). It
will remain in “Standby” mode until the tank pressure falls 7-10 PSIG.
7.3. Controller Modes
This mode allows access to two features:
• Filter Change Reset - When a new FRP (Filter Replacement Kit) is installed, the 1000-hour filter
change time must be reset. After replacing the filter elements, press and hold the Filter Change
Reset Button (Down Button) for 7 seconds. An audible beep and a display of “FILTER RESET” will
confirm that the time is reset, and filter alarm will be reset.
• Blastoff
®
Simulation - Hold the (Set Button) for 7 seconds Passcode Screen will pop up,
1. Press the (Set Button) one time to activate data entry, enter (6557) using the (Up and Down
Buttons)
2. Press the (ENT Button) to confirm the entry.

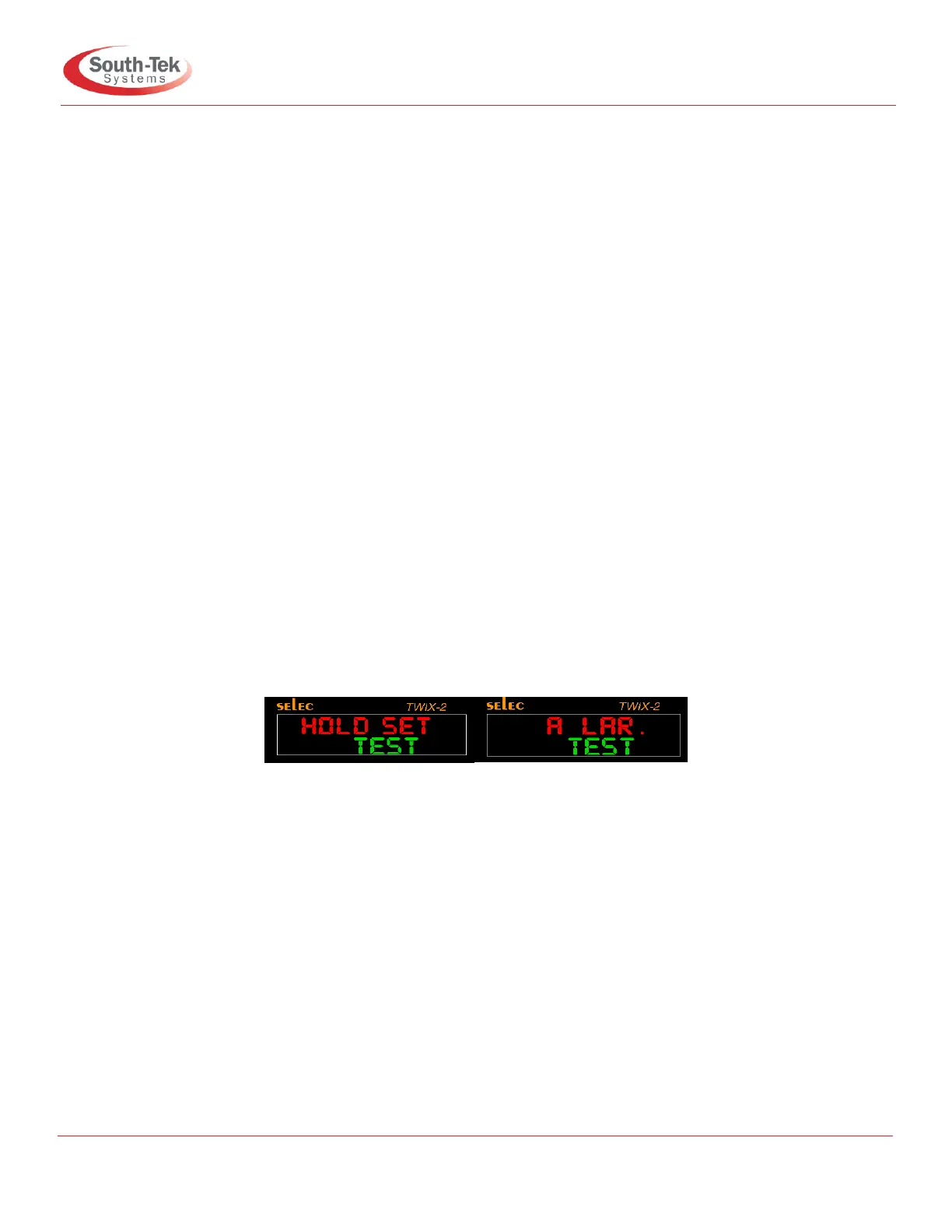

It will bring (HOLD SET) Screen, to simulate the Blastoff, press and hold the Set Button for 5
seconds this will simulate the Blastoff and trip the alarm dry contact in the unit (if installed) for 2
seconds so that proper functioning can be confirmed.
• Next Button - to navigate between the screens as filer hours, program version, unit ambient
temperature, and the sensors set points if it is applicable (check appendix A).
NORMAL RUNNING / STANDBY MODE (RUNNING -STANDBY)
“Running” mode is when the FPS-500 is producing nitrogen and supplying it to the storage tank.
The system will automatically enter “Standby” mode when the tank is fully pressurized (70 PSIG
+/-5 PSIG). It will remain in “Standby” mode until the tank pressure falls 7-10 PSIG.
To run the system in normal run mode:
1. Connect the correct power supply to the system.
2. Open the nitrogen generator’s 3-way outlet ball valve (lower left side of the cabinet) to nitrogen
out position.
3. On the nitrogen tank, open the gas inlet and outlet ball valve.
4. Push the on/Off toggle button on the upper left control panel to the “On” position (up) and the
system will automatically turn on and start filling nitrogen to the storage tank.
