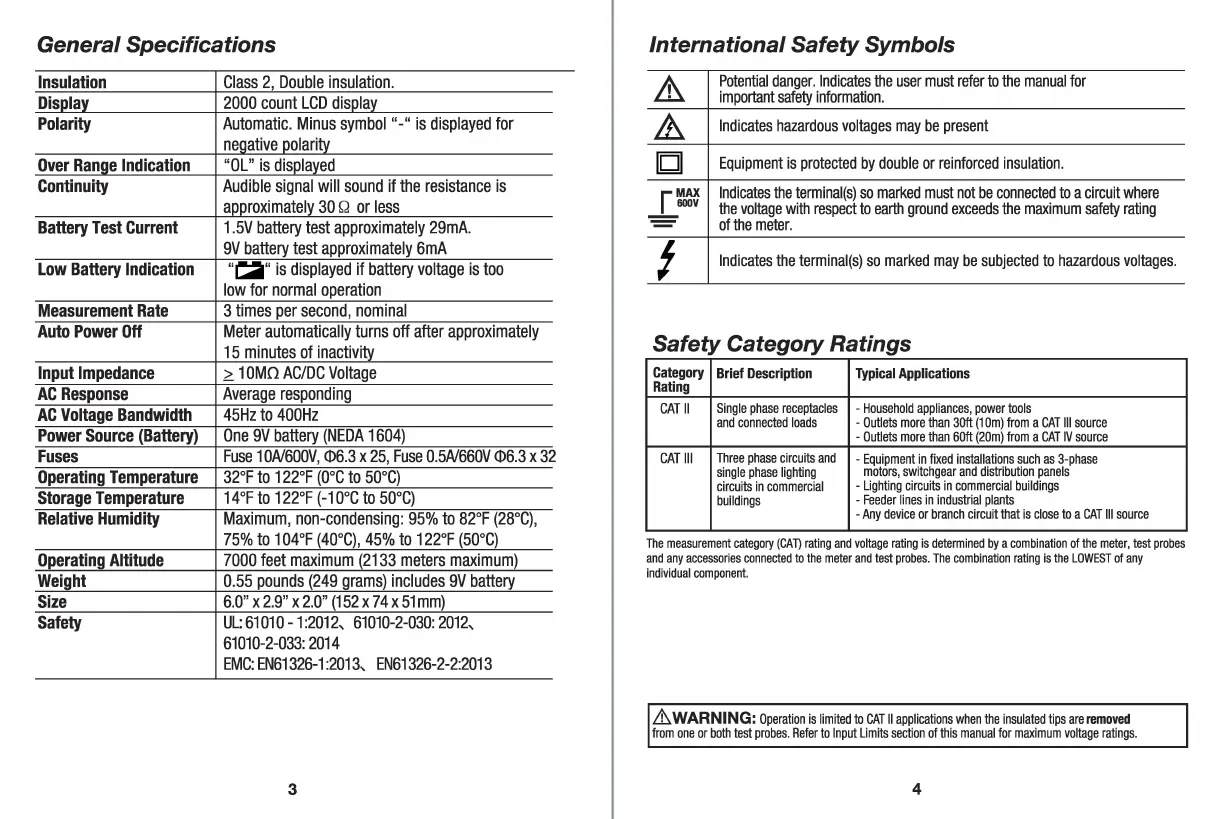

General Specifications
Insulation
Class 2, Double insulation .
Disolav
2000 count LCD disolav
Polarity Automatic . Minus symbol"-" is displayed for
neoative polarity
Over Range Indication
"OL" is displayed
Continuity Audible signal will sound if the resistance is
approximatelv 30 Q or less
Battery Test Current 1. 5V battery test approximately 29mA.
9V battery test approximately 6mA
Low Battery Indication "!:a" is displayed if battery voltage is too
low for normal operation
Measurement Rate
3 times per second , nominal
Auto Power Off
Meter automatically turns off after approximately
15 minutes of inactivity
Input Impedance ~ 10MO AC/DC Voltage
AC Response Average responding
AC Voltage Bandwidth 45Hz to 400Hz
Power Source (Battery)
One 9V battery (NEDA 1604)
Fuses Fuse 1 0N600V , <1>6 .3 x 25, Fuse 0. 5N660V <1>6 .3 x 32
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature 14°F to 122°F (-10°C to 50°C)
Relative Humidity Maximum, non-condensing : 95% to 82°F (28°C),
75% to 104°F (40°C), 45% to 122°F (50°C)
Operating Altitude 7000 feet maximum (2133 meters maximum)
Weight 0. 55 pounds (249 grams) includes 9V battery
Size
6. 0" x 2. 9" x 2. 0" (152 x 7 4 x 51 mm)
Safety UL: 61010-1 :2012, 61010-2-030 : 2012,
61010-2-033 : 2014
EMC: EN61326-1 : 2013, EN61326-2-2 : 2013
3
International Safety Symbols
IA.
Potential danger. Indicates the user must refer to the manual for
important safety information .
Indicates hazardous voltages may be present
Equipment is protected by double or reinforced insulation .
r
MAX Indicates the terminal(s) so marked must not be connected to a circuit where
eoov the voltage with respect to earth ground exceeds the maximum safety rating
of the meter.
Indicates the terminal(s) so marked may be subjected to hazardous voltages .
Safety Category Ratings
Category
Rating
Brief Description Typical Applications
CATII
Single phase receptacles - Household appliances, power tools
and connected loads - Outlets more than 30ft (1 Om) from a CAT Ill source
- Outlets more than 60ft (20m) from a CAT IV source
CATIII
Three phase circuits and
- Equipment in fixed installations such as 3-phase
single phase lighting
motors, switchgear and di stribution panels
circuits in commercial
- Lighting circuits in commercial buildings
buildings
- Feeder lines in industrial plants
- Any device or branch circuit that is close to a CAT Ill source
The measurement category (CAT) rating and voltage rating is determined by a combination of the meter, test probes
and any accessories connected to the meter and test probes . The combination rating is the LOWEST of any
individual component.
.&. WARNING: Operation is limited to CAT II applications when the insulated tips are removed
from one or both test probes. Refer to Input Limits section of this manual for maximum voltage ratings .
