Southwire M300P - Wiring and Display Examples for Data Cable

15 16
Operation
Testing Wiring on Coax Patch Cables Terminated with F Connectors
Video
M300P
CYCLE
MODE
NOTE: Test signals in the Video mode
may not pass through a splitter. Only one
remote ID can be connected at a time
when testing cables connected to a common
splitter.
F Connector
Coax Cable
Tester
DC-M300P
CYCLE
MODE
Operation

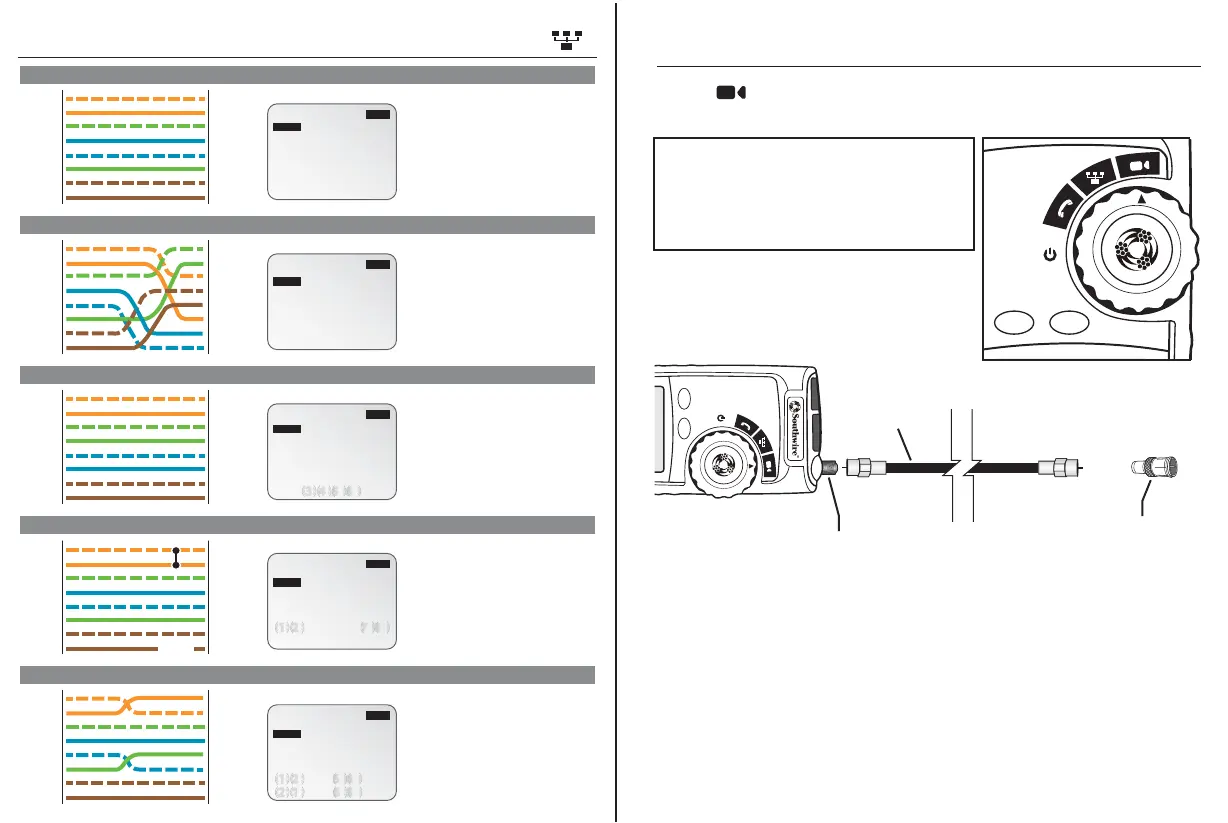

Wiring and Display Examples for Data Cable
Display
12345678
12345678
Pass
Test
Data
Pass appears on the display indicating
a properly wired cable. The pin numbers
on the top row agree with the bottom
row indicating proper continuity.
The pairs cross over (transmit to
receive and receive to transmit).
Pass and X-over appear on the display
and the pin numbers on the bottom
row indicate the corresponding cross
over to the pin numbers on the top
row.
There is a split between the pairs on
pins 3, 4 and 5, 6. Fail and Split appear
on the display and the pin numbers
with the split will flash.
Notes: Both the T568A and T568B wiring
standard will test the same as long as the
same standard is used on both ends of
the cable.
TESTER
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
REMOTE
T568B Data Cable Properly Wired
Display
Pass
X-Over
Test
TESTER
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
REMOTE
T568B Cross Over Data Cable Properly Wired
Display
Fail
Split
Test
TESTER
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
REMOTEREMOTE
T568B Data Cable With Split Pairs
Pins 1 and 2 are shorted and the pair
on pins 7 and 8 is open. Fail, Short
and Open appear on the display
and the pins with wiring errors will
flash. Dash lines will appear below
the shorted pins and a blank space
will appear below the open pair.
The pair on pins 1 and 2 is reversed
and the wires on pins 5 and 6 are
crossed at one end of the cable.
Fail will appear on the display
indicating a defective cable.
The pins with wiring errors will flash.
Pins 2 and 1 shown below pins 1 and 2
indicate a reversal on the Orange pair.
Pins 6 and 5 shown below 5 and 6
indicate a crossed connection.
T568B Data Cable With a Shorted and Open Pair
TESTER
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
REMOTE
T568B Data Cable With Reversed Pair and Crossed Connection
12345678
36178245
Data
12345678
1 2 3 4 5 6 7 8
Display
Fail
Short
Open
Test
3456
- - 3 456
TESTER
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Shor t
Open
Data
Data
12345678
Display
Fail
Rev
Test
34
Data
12345 6 78
2 1 346 5 78
F-connector
Remote
Identifier
