SOYO 82430 HX / P54C User Manual

12 Hardware Setup
Pentium – 100*/120*/133* CPU Settings (2.0 x clock)
Cyrix 6x86 – P120
+
/P133
+/
P150
+
/P166
+
CPU Settings (2.0 x clock)
AMD K5 – PR150/PR166 CPU Settings (2.0 x clock)
586
CPU
Family
Pipelined Burst SRAM Module Slot
JP12
JP13
JP32 JP33
Pentium (P54CX) – 100*/50 MHz
Cyrix 6x86 – P120
+
/50 MHz
(Red Caps)
JP12
JP13
Pentium (P54CX) – 120*/60 MHz
Cyrix 6x86 – P150
+
/60 MHz
AMD K5 – PR150/60 MHz
(Red Caps)
JP12
JP13
Cyrix 6x86 – P133
+
/55 MHz
(Red Caps)
JP12
JP13
Pentium (P54CX) – 133*/66 MHz
Cyrix 6x86 – P166
+
/66 MHz
AMD K5 – PR166/66 MHz
(Red Caps)
JP12
JP13

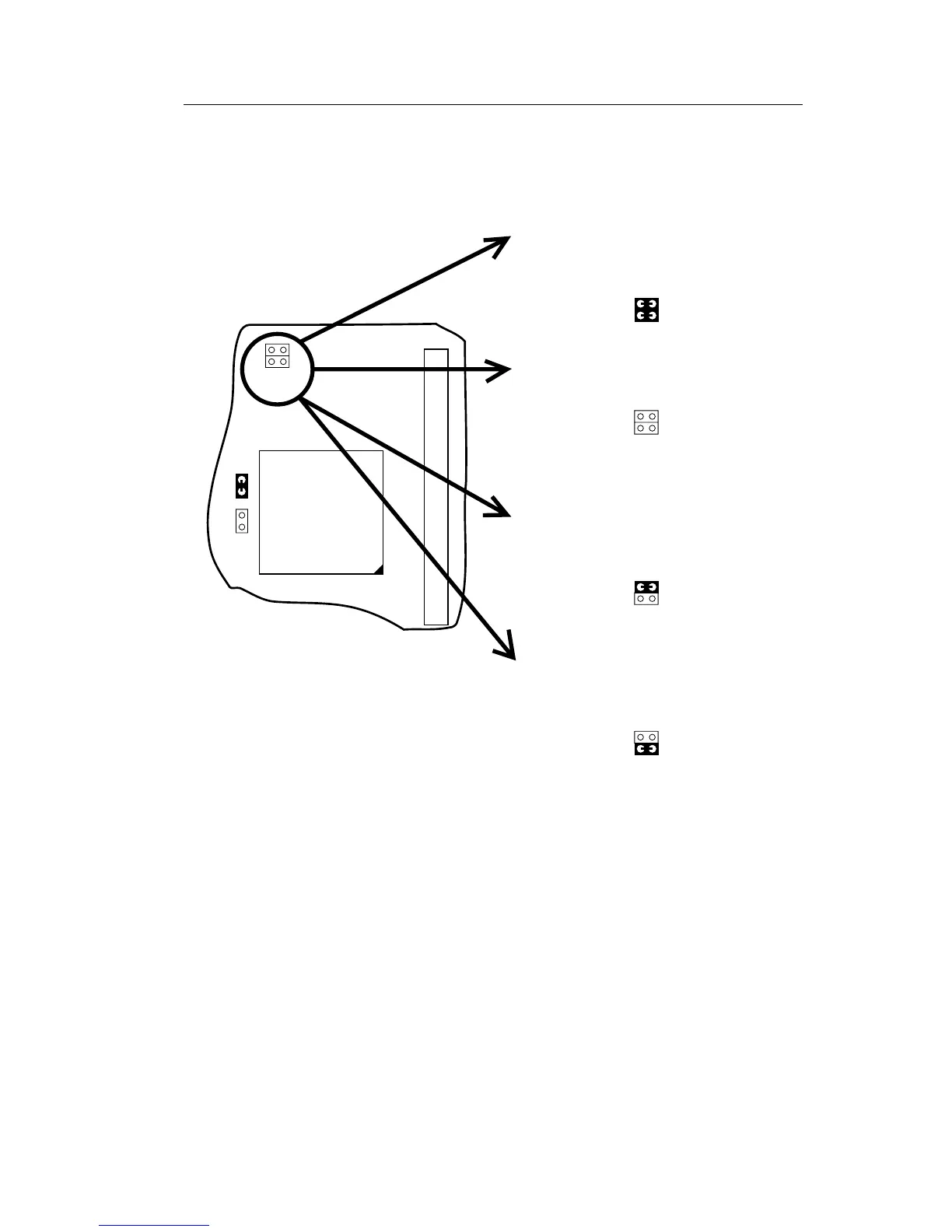

Figure 2Ð1Ð2. CPU Jumper Settings
Note: 1. You must equip the CPU with a fan and heat sink for system
stability.
2. Cyrix 6x86 Ð P166
+
has to be matched with 60ns DRAMs.
