Hardware Setup 15
JP27
JP30
586
CPU
Family
Pipelined Burst SRAM Module Slot
JP24
JP26
JP29
JP36
1
4
2.5V CPU
2.7V ~ 2.8V CPU
JP24
JP26
JP29
JP24
JP26
JP29
2.9V CPU
JP24
JP26
JP29

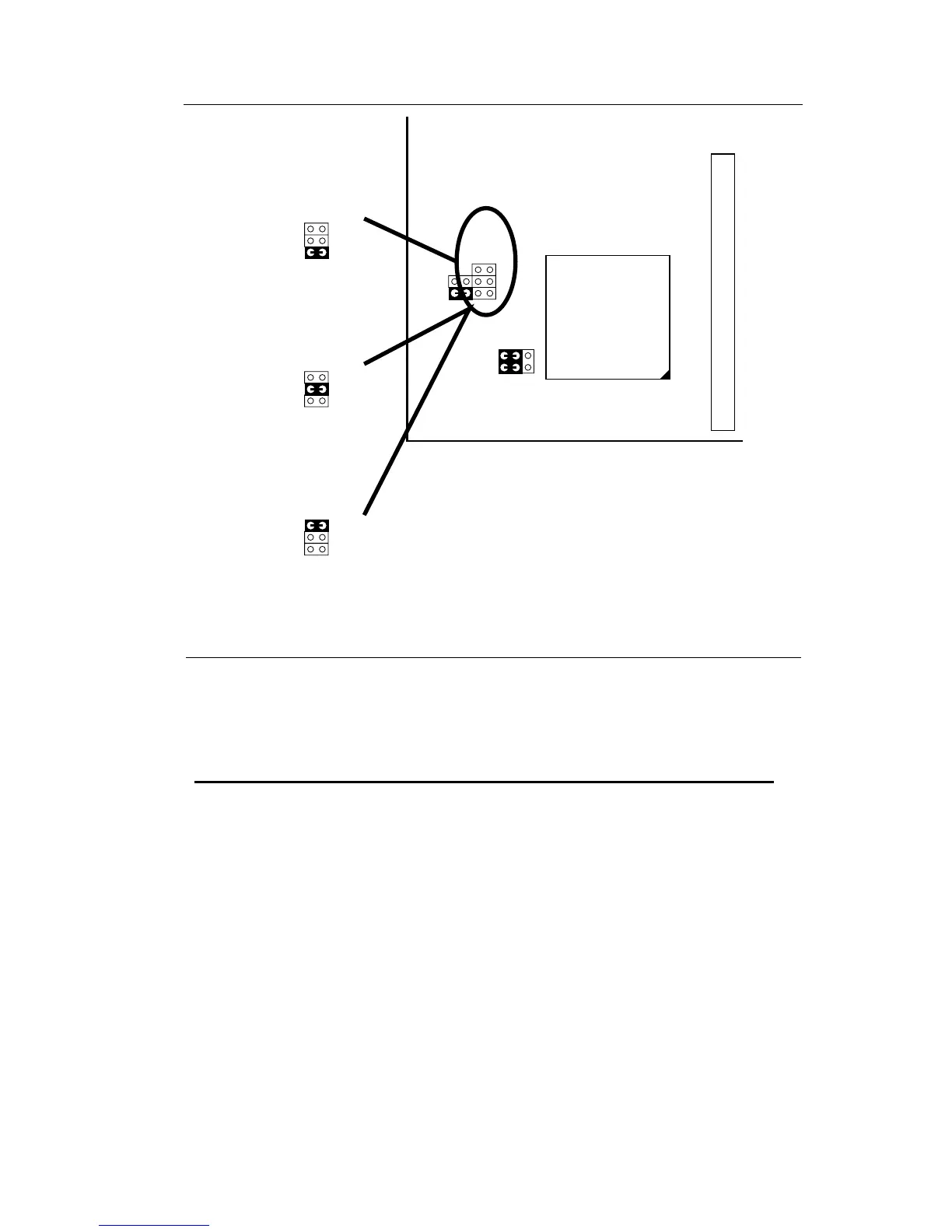

Figure 2Ð2Ð2. Dual Voltage CPU
Memory Configuration
The mainboard supports eight banks of 72-pin SIMM or EDO DRAM
(with or without parity). The mainboard requires SIMM of at least 70ns
access time.
Single-side SIMM Double-side SIMM
4MB = 1MB x 36(32) 2MB = 512K x 36(32)
16MB = 4MB x 36(32) 8MB = 2MB x 36(32)
64MB = 16MB x 36(32) 32MB = 8MB x 36(32)
The mainboard supports from 4 to 256 Mbytes with no other restrictions
on memory configurations. You can install DRAM in any combination
without having to rely on a memory configuration table. Memory
configuration is thus ÒTable-FreeÓ in any bank.
Note: You must install two strips of SIMM modules to complete a bank.
