PREPARATION (Continued)
Antenna Connection
ANTENNA
2. A 300-ohm system is a flat "twin-lead"cable that can be
attached to a 75-ohm terminal through a 300-75-ohm
adapter (not supplied)
1. A 75-ohm system is generally a round cable with F-type
Connector that can easily be attached to a terminal without
tools (not supplied).
OUTDOOR ANTENNA CONNECTION

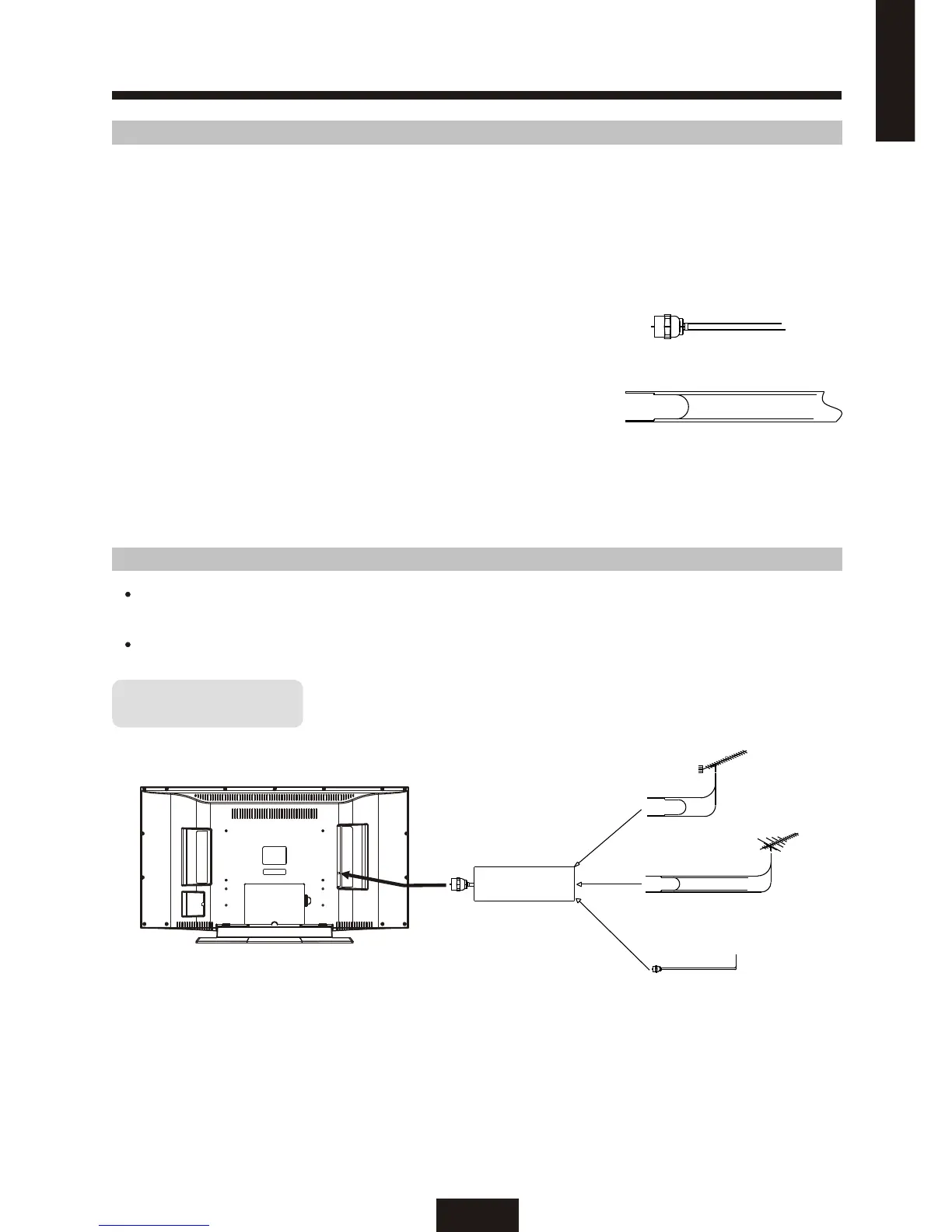

Use one of the following two diagrams if you connect to an outdoor antenna
A: Using a VHF/UHF combination outdoor antenna
B: Using separate VHF and/or UHF outdoor antennas
Connect the outdoor antenna cable lead-in to ANT. (Antenna terminal) on the rear of the TV set.
F-type connector
75-ohm coaxical cable (round)
300-ohm twin lead cable (flat)
Separate VHF AND/OR
UHF Antennas
UHF antenna
300-ohm
twin-lead
VHF antenna
75-ohm
coaxical cable
300-ohm
twin-lead
Combiner
(not supplied)
OUT INOUT IN
9
The antenna requirements for good color television reception are more important than
those for black & white television reception. For this reason, a good quality outdoor
antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the
various antenna systems.
ENGLISH
To Next Page
