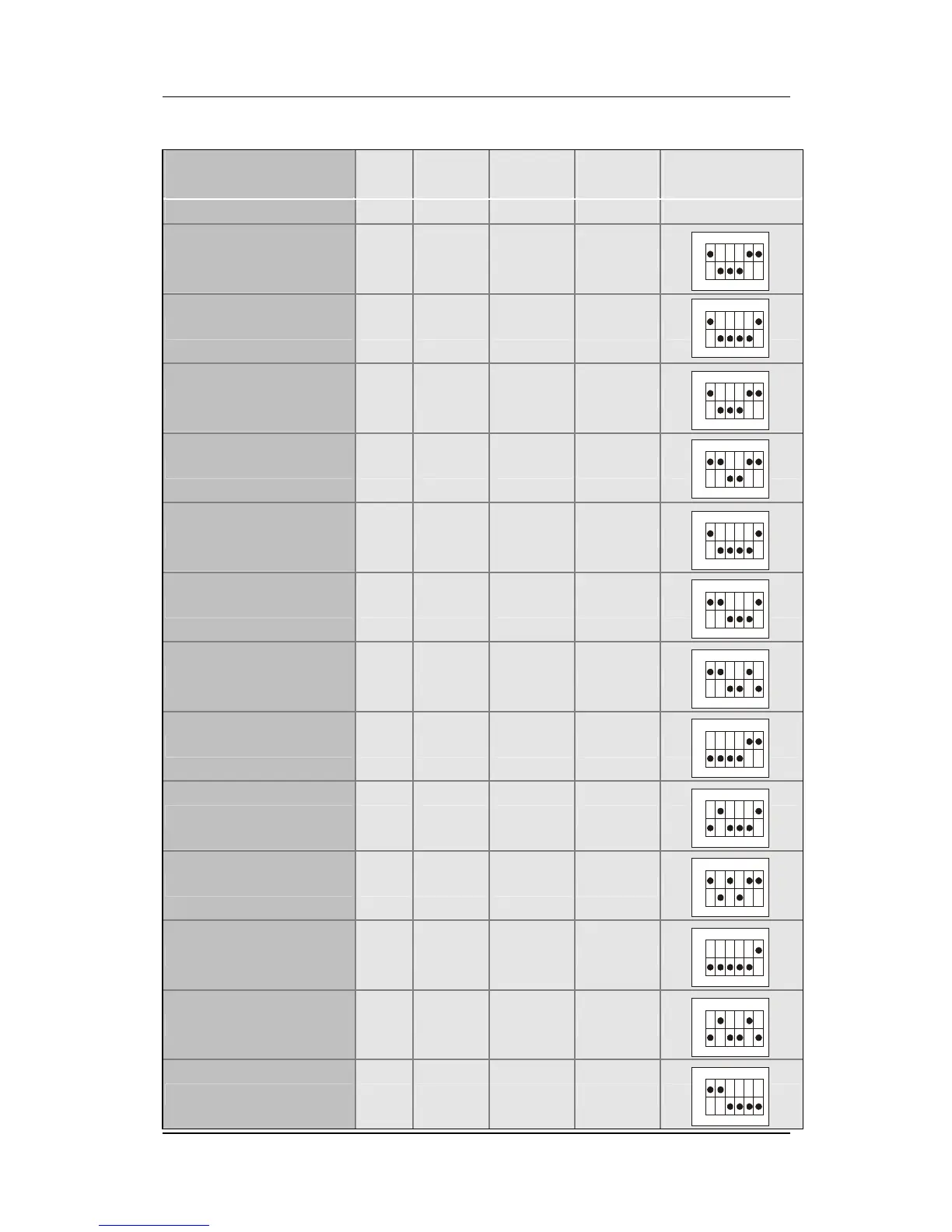

SOYO SY-5EH5 - Page 24

Hardware Setup
SY-5EHM/5EH5 V1.3
19
Frequency Settings for Cyrix™ Processors
Processor
Frequency Setting
Rati
o
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
Cyrix 6x86 - PR166+ 2.0 x 66MHz 66MHz 33MHz
Cyrix 6x86 - PR200+ 2.0 x 75MHz 75MHz 37.5MHz
Cyrix MX - PR166** 2.0 x 66MHz 66MHz 33MHz
Cyrix MX - PR200** 2.5 x 66MHz 66MHz 33MHz
Cyrix MX - PR200** 2.0 x 75MHz 75MHz 37.5MHz
Cyrix MX - PR233** 2.5 x 75MHz 75MHz 37.5MHz
Cyrix MX - PR266** 2.5 x 83MHz 55MHz 27.5MHz
Cyrix M II - 300** 3.5 x 66MHz 66MHz 33MHz
Cyrix M II - 300** 3.0 x 75MHz 75MHz 37.5MHz
Cyrix M II - 333** 4.0 x 66MHz 66MHz 33MHz
Cyrix M II - 333** 3.5 x 75MHz 75MHz 37.5MHz
Cyrix M II - 333** 3.0 x 83MHz 55MHz 27.5MHz
Cyrix M II - 366** 2.5 x 100MHz 66MHz 33MHz
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
123456
ON
