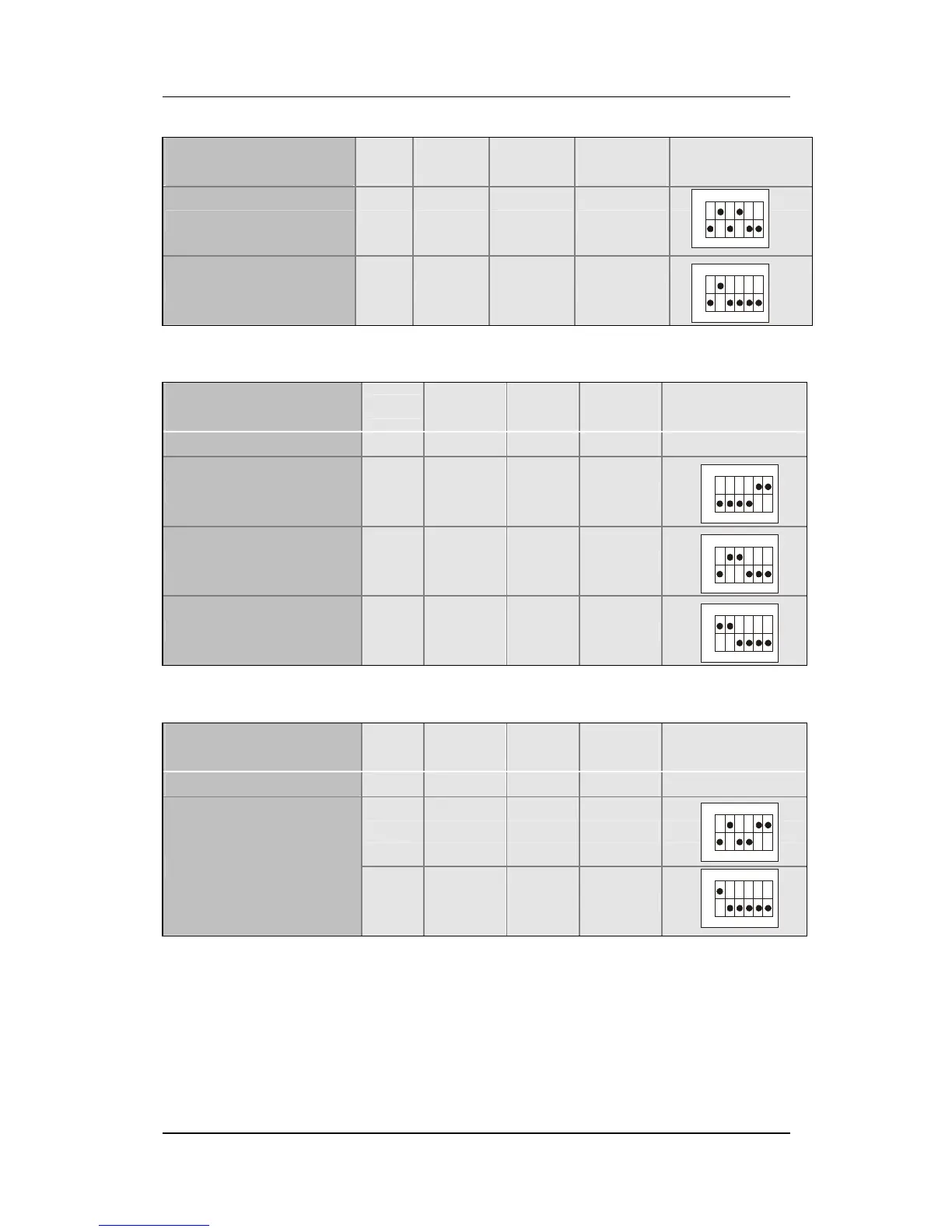

Frequency Settings for Cyrix™ Processors (Continued)
Processor
Frequency Setting
Rati
o
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
Cyrix M II – 400** 3.0 x 95MHz 63.5MHz 31.75MHz
Cyrix M II - 433** 3.0 x 100MHz 66MHz 33MHz
Frequency Settings for IDT™ Processors
Processor
Frequency Setting
Ratio
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
IDT X86 CPU 2-233 3.5 x 66MHz 66MHz 33MHz
IDT X86 CPU 2-266 2.33 x 100MHz 66MHz 33MHz
IDT X86 CPU 2-300 2.5 x 100MHz 66MHz 33MHz
Frequency Settings for Rise™ Processors
Processor
Frequency Setting
Ratio
Bus
Clock
AGP
Clock
PCI
Clock
Frequency
Setting: SW1
3.0 x 66MHz 66MHz 33MHz
Rise mP6 PR266
2.0 x 100MHz 66MHz 33MHz
