2. Infrared (SIRCON1)
Plug the 5-pin infrared device cable to the SIRCON1 header. This will
enable the infrared transfer function. This Motherboard meets both the
ASKIR and HPSIR specifications.
Please install according to the following pin assignment:
3. Other Display Cards
Insert other types of VGA cards into the PCI or ISA expansion slots
according to card specifications.

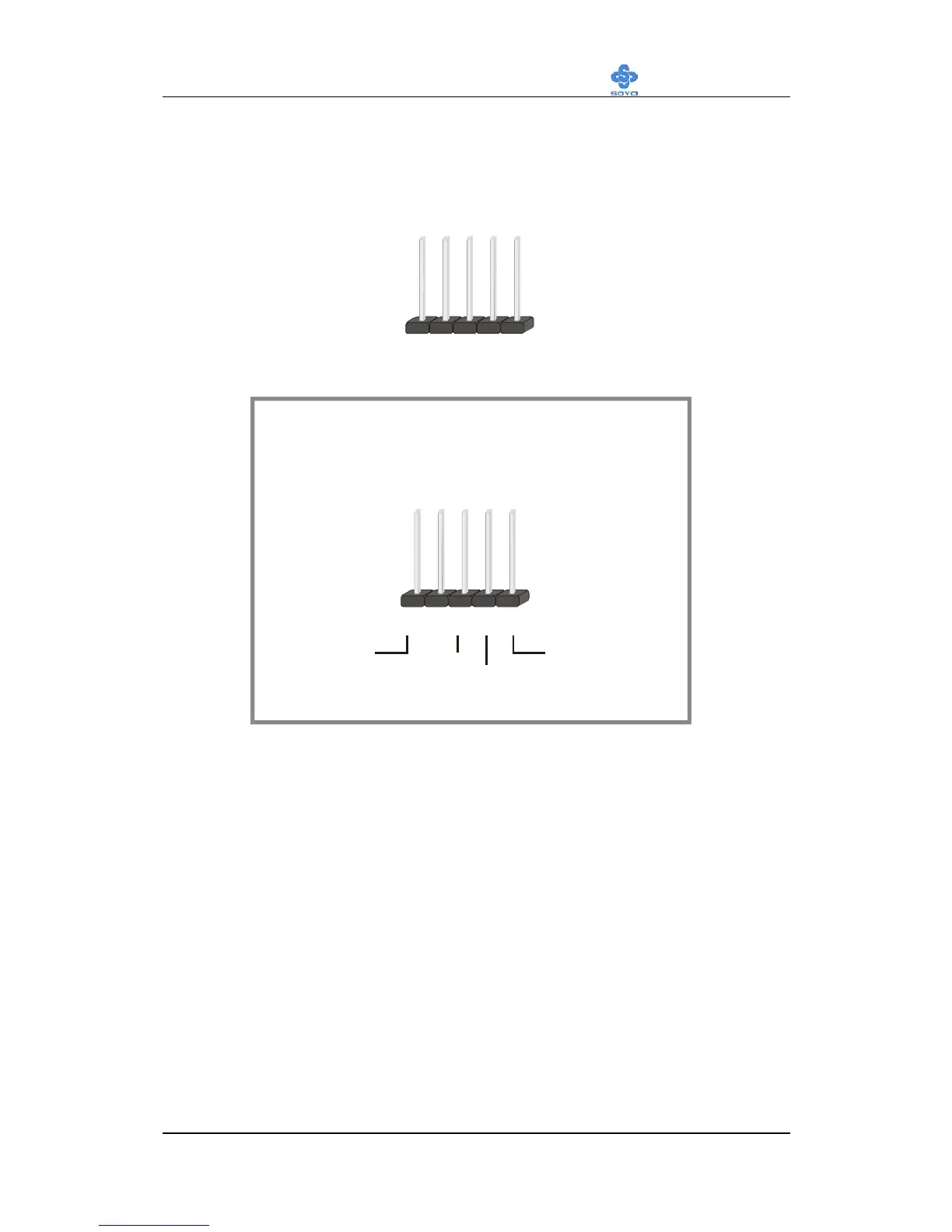

Standard Infrared
(SIRCON1) Connector
SIRCON Pin Assignment
12
3
4
5
VCC
IRRX
GND
IRTX
