Alarm Limit Review
The Alarm Limit Review tab is where you can view or print the alarm settings for all
parameters. On the left side of the Alarm Limit Review tab, the current alarm
volume is shown. For example: “6/8” indicates that the alarm volume is at 6 and the
highest volume available is 8.
Note:
If the text ***ALARMS PAUSED shows below the alarm volumes, be aware that
all alarms are paused.

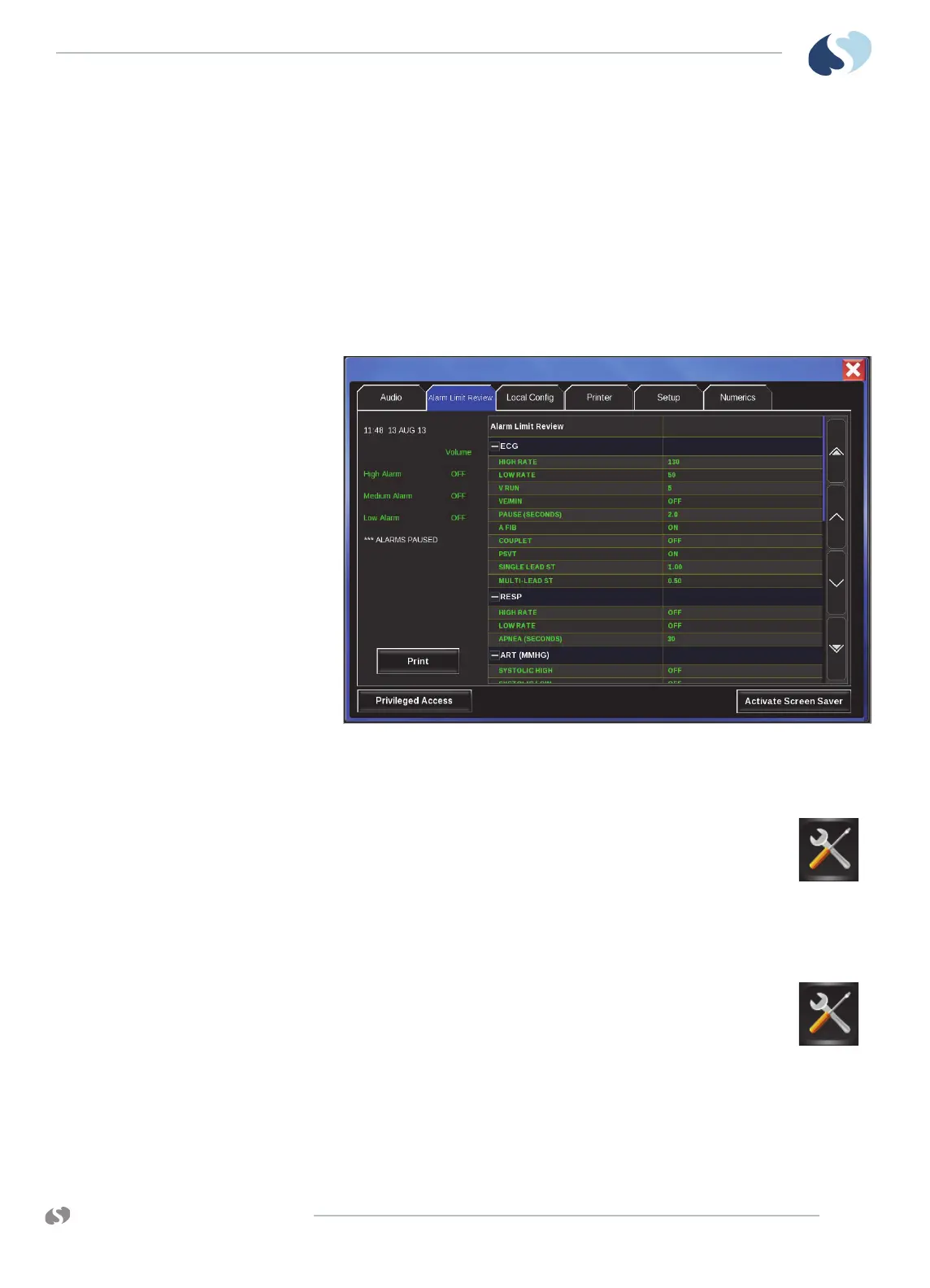

Figure 12-4 Alarm Limit Review tab
To see current alarm settings
1 Touch Monitor Setup.
2 Touch the Alarm Limit Review tab.
A list of all alarm settings shows. Touch the plus sign and minus
sign at the left of the alarm categories to expand or collapse a
parameter category.
To print current alarm settings
1 Touch Monitor Setup.
2 Touch the Alarm Limit Review tab.
3 Touch Print.
