www.spacelabshealthcare.com
2-4
XPREZZON
AND QUBE
O
PERATIONS MANUAL
XPREZZON MONITOR

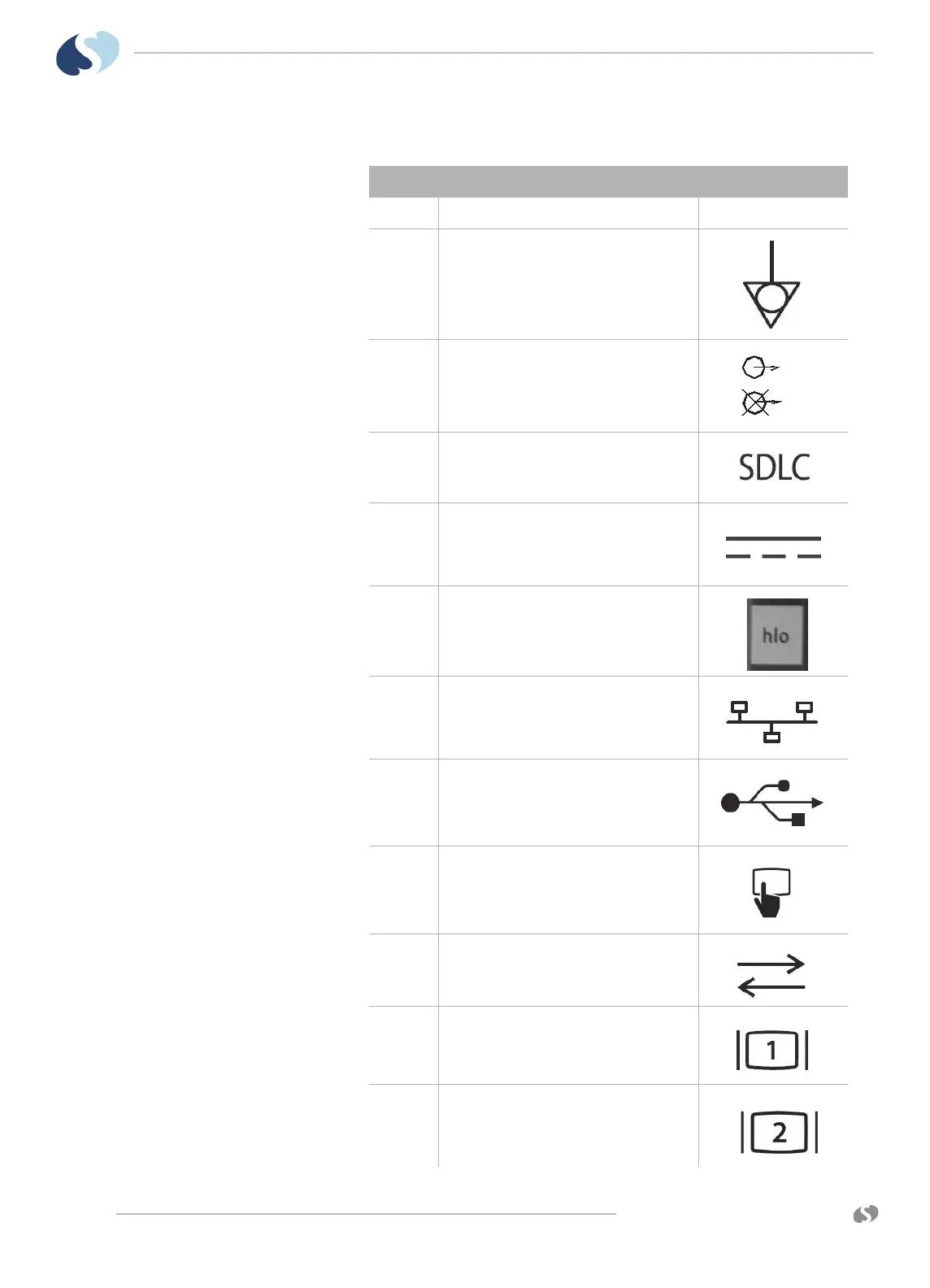

Table 2-2 Back Panel (XPREZZON)
Description Symbol on panel
1
Battery backup cover
2 Equipotential Terminal used for grounding
the monitor
3 SDLC Bus Termination switch (up is not
terminated, down is terminated)
4 SDLC Ports used to connect Flexports and
module housings to the monitor
5 DC Power Input
119-0480-00 (XPREZZON)
6 High-level analog output
7 Ethernet 10/100 Base T Connection
8 USB Ports (qty=2)
9 Serial Port 2 (external touchscreen primary
display only)
10 Serial Port
11 Video Output, DVI
12 Video Output, DVI
