Spaceman 6228AH - Page 12

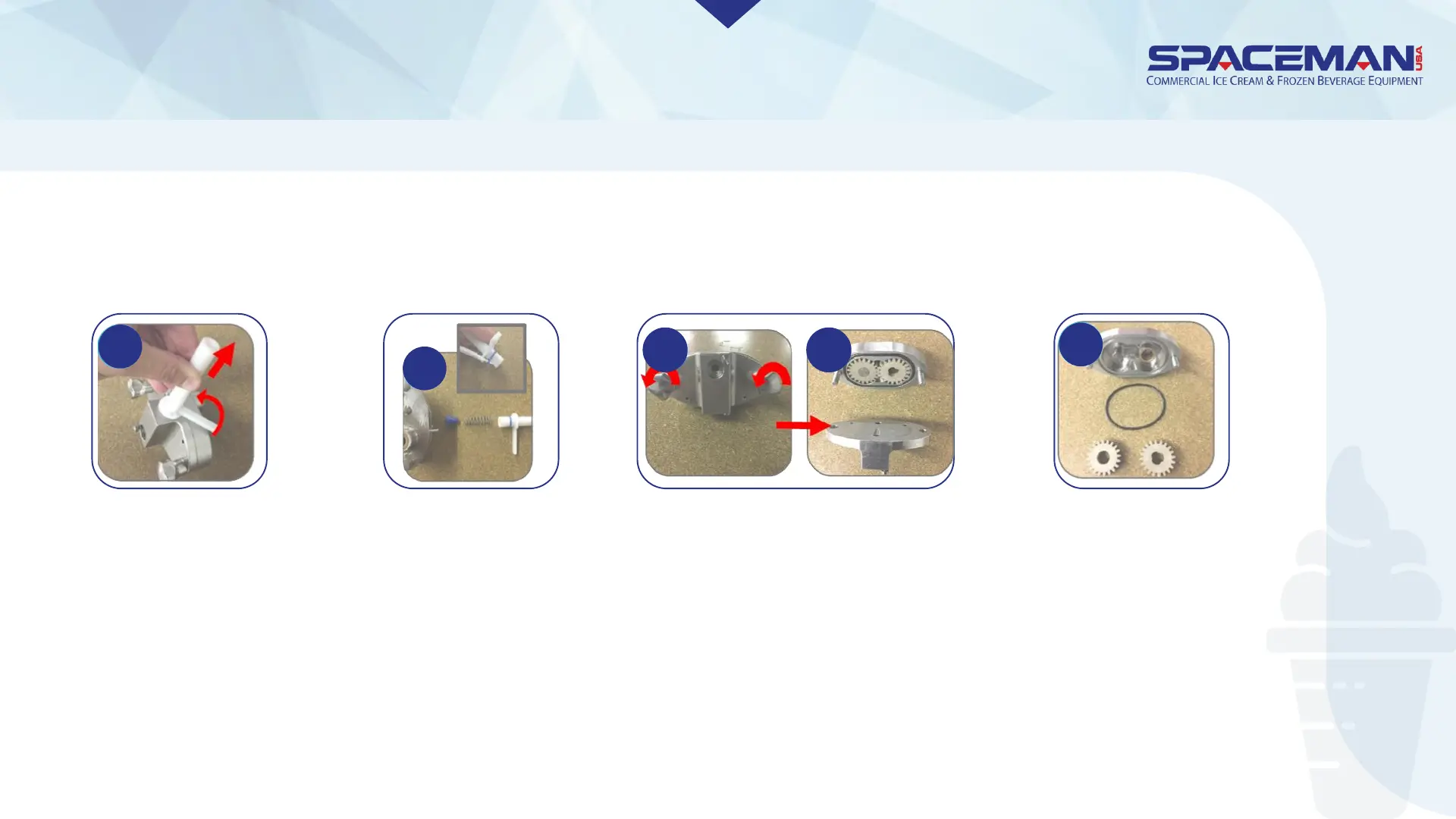

DISASSEMBLE
Take suction tubes
apart completely;
each suction tube has
O-ring (1), spring (1),
and stopper (1)
2e
Remove gears and
O-rings from shells
2g
Rotate suction tubes
to unlock and remove
suction tubes, springs,
and stoppers out of air
pumps; watch that
springs don’t fly out
2d
Unscrew bolts on air
pump housings;
separate air pump
covers from shells
2f 2f
2. DISASSEMBLE AIR PUMP
