SpacePak ESP-J - Page 48

48

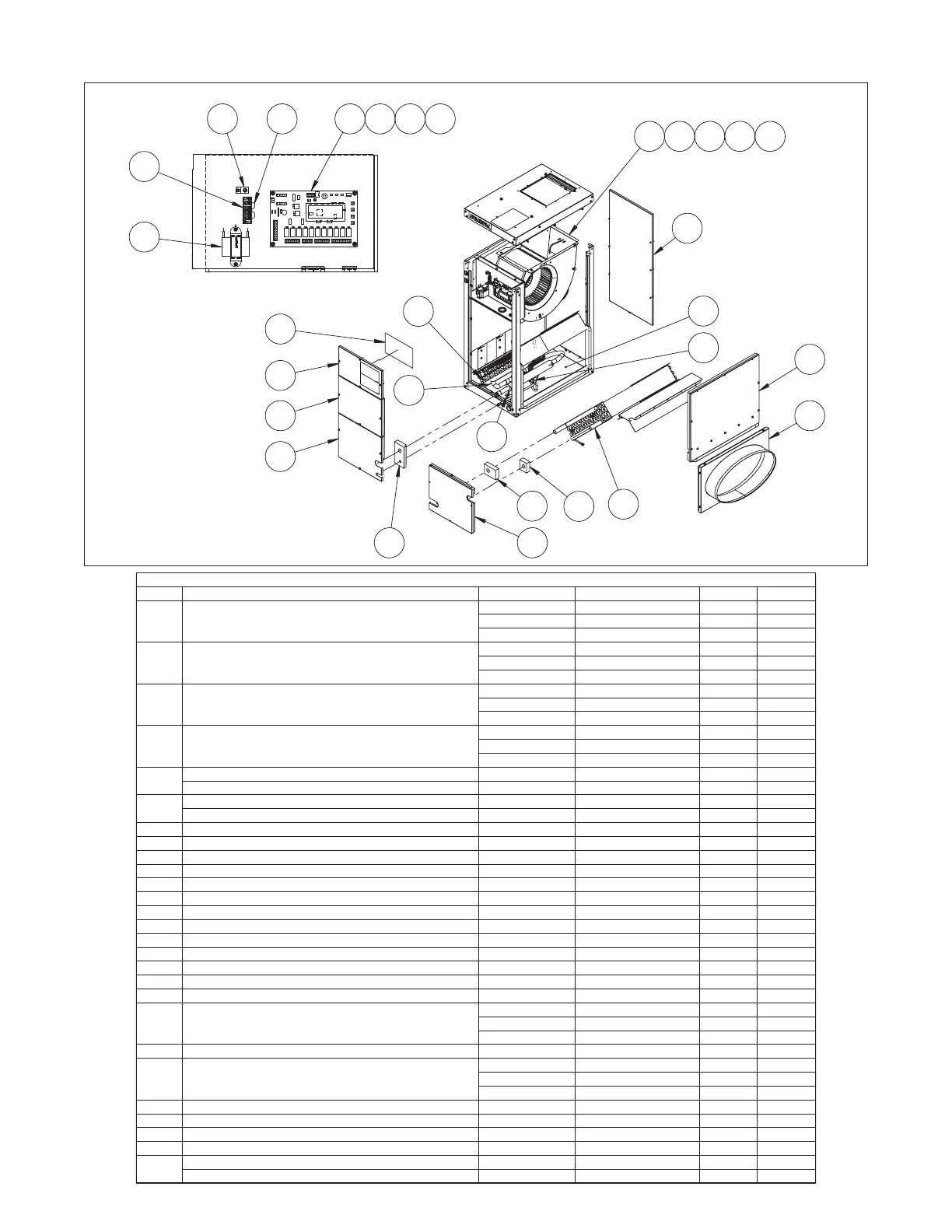

FIGURE 4.2: MODEL ESP-JV GENERAL ASSEMBLY
18
21
20
22
1
26 13
11
10
2
61719
5
*
= NOT SHOWN
3
25
SPL-WG1294-01
12
24
23
4
***
14
1615 9
8
7
17 19
**
25
*
DETAIL OF INTERNAL CONTROL BOX
WITH COVER REMOVED
27
*
Replacement Parts - Vertical Fan Coil Units
Item Part Description Unit Size Part Number ESP WCSP
1 Primary Drain Pan Assembly
2430J 45455RWG1012-02 X X
3642J 45455RWG1012-03 X X
4860J 45455RWG1012-04 X X
2 R410A Coil Assembly
2430J 45469RWG1013-02 X
3642J 45469RWG1013-03 X
4860J 45469RWG1013-04 X
3 Thermal ExpansionValve, Chatleff Connection
2430J 45W28RWG0641-02 X
3642J 45W28RWG0641-03 X
4860J 45W28RWG0641-04 X
4 Hydronic Coil Assembly
2430J 45W50RWG0660-02 X
3642J 45W50RWG0660-03 X
4860J 45W50RWG0660-04 X
5
Temperature Sensor with Plug End All Sizes 45W09RWG1257-01 X X
Temperature Sensor without Plug End All Sizes 45W09RWG1364-01 X X
6
Blower Assembly - JH4MB All Sizes 45W35RWG0802-10 X X
Blower Assembly - JH4MC All Sizes 45W35RWG1539-10 X X
7 Transformer Assembly All Sizes 45W14RWG1234-01 X X
8 Terminal Block All Sizes 45W09RWG1263-04 X X
9 Jumper,Terminal Block All Sizes 45W09RWG1264-01 X X
10 Electrical Control Box Cover All Sizes 45456-WG1240-01 X X
11 Center Access Panel Assembly All Sizes 45458RWG0975-01 X X
12 Access Panel, R410A Coil All Sizes 45458RWG0725-01 X
13 Access Panel, Hydronic Coil All Sizes 45458RWG0665-01 X
14 Primary Float Switch All Sizes 45455RWG1009-01 X X
15 Cabel Connector (Ground) All Sizes 45W09RWG0313-01 X X
16 J+ Control Board (Black with Display Screen) All Sizes 45W11RWG1242-01 X X
17 Wire Harness, Motor Control All Sizes 45460RWG1235-01 X X
18 Wiring Diagram All Sizes X X
19 Blower Speed Control Cable All Sizes 45W11RWG0807-01 X X
20 Blower Access Panel Assembly
2430J 45462RWG0691-02 X X
3642J 45462RWG0691-03 X X
4860J 45462RWG0691-04 X X
21 Side Access Panel Assembly All Sizes 45462RWG1007-01 X X
22 Return Air Panel Assembly
2430J 45463RWG0708-02 X X
3642J 45463RWG0708-03 X X
4860J 45463RWG0708-04 X X
23 Insulation, Upper Coil Tube All Sizes 45Y06-WG0663-01 X
24 Insulation, Lower Coil Tube All Sizes 45Y06-WG0663-02 X
25 Tubing, HI-Temp, 3/16" ID All Sizes 11H07-01471-002 X X
26 Insulation, Coil Tube All Sizes 45Y06-WG0726-01 X
27
ECM Controller - JH4MB All Sizes 45W11RWG0926-10 X X
ECM Controller - JH4MC All Sizes 45W11RWG1540-10 X X
