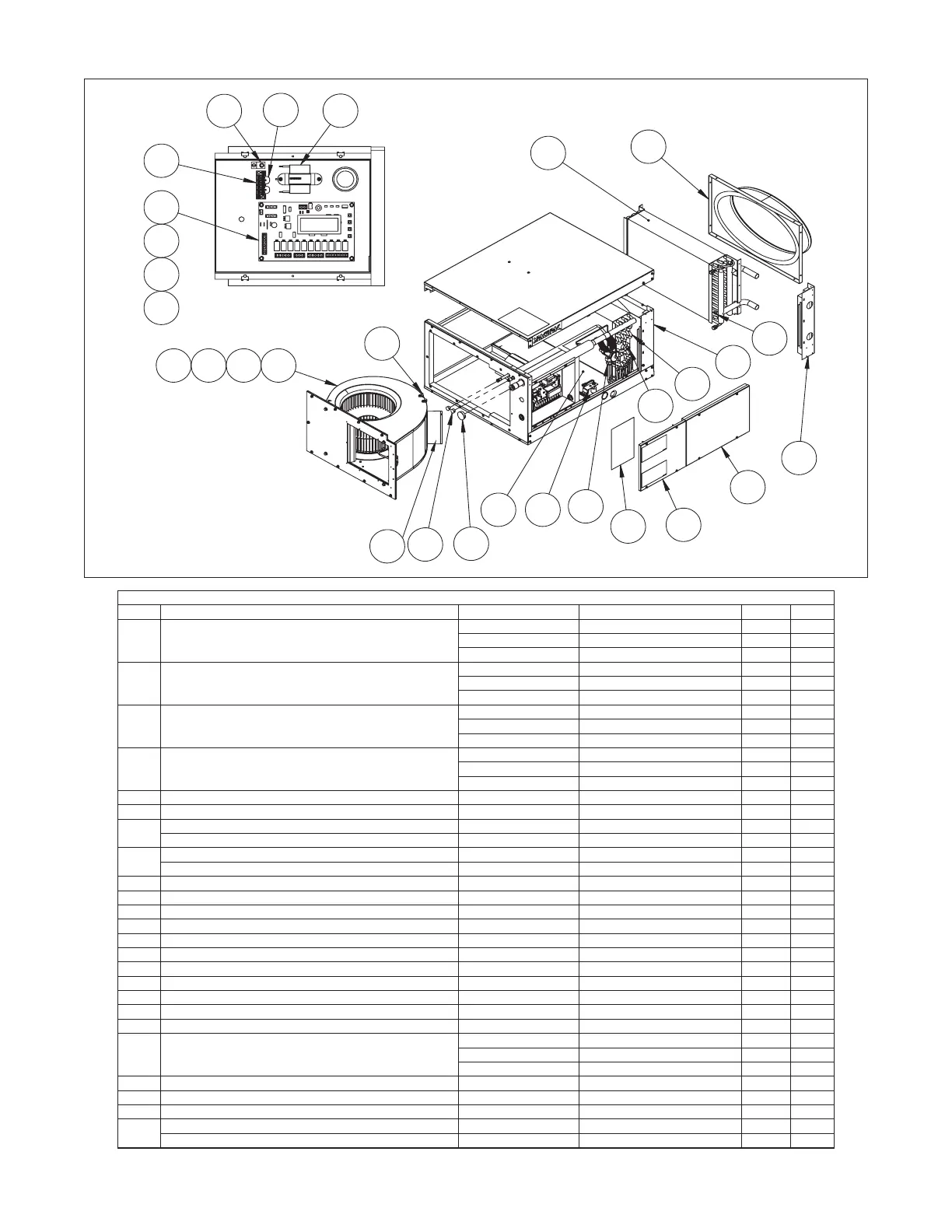

SpacePak ESP-J - Figure 4.1: Model ESP-J General Assembly

47
9
15
11
10
16
17
DETAIL OF INTERNAL CONTROL
BOX WITH COVER REMOVED
*
19
*
21
*
*
1
7
7
14
2
3
12
13
18
817
*
22
23
7
4
6
19
*
21
20
SPL-WG1292-01
5
*
= NOT SHOWN
24
FIGURE 4.1: MODEL ESP-J GENERAL ASSEMBLY
Replacement Parts - Horizontal Fan Coil Units
Item Part Description Unit Size Part Number ESP WCSP
1 Primary Drain Pan
2430J 45W06RWG0220-22 X X
3642J 45W06RWG0220-23 X X
4860J 45W06RWG0220-24 X X
2 R410A Coil Assembly
2430J 45469RWG1270-02 X
3642J 45469RWG1270-03 X
4860J 45469RWG1270-04 X
3 Thermal Expansion Valve, Chatleff Connection
2430J 45W28RWG0641-02 X
3642J 45W28RWG0641-03 X
4860J 45W28RWG0641-04 X
4 Hydronic Coil Assembly
2430J 45W50RWG0631-02 X
3642J 45W50RWG0631-03 X
4860J 45W50RWG0631-04 X
5 Corner Post ESP Coil All Sizes 45462-WG0530-01 X
6 Corner Post WCSP Coil All Sizes 45462-wg0530-02 X
7
Temperature Sensor with Plug End All Sizes 45W09RWG1257-01 X X
Temperature Sensor without Plug End All Sizes 45W09RWG1364-01 X X
8
Blower Assembly - JH4MB All Sizes 45W35RWG0802-10 X X
Blower Assembly - JH4MC All Sizes 45W35RWG1539-10 X X
9 Transformer All Sizes 45W14RWG1234-01 X X
10 Terminal Block All Sizes 45W09RWG1263-04 X X
11 Jumper, Terminal Block All Sizes 45W09RWG1264-01 X X
12 Electrical Control Box Cover All Sizes 45462RWG1245-01 X X
13 Coil Access Panel All Sizes 45462RWG0914-01 X X
14 Primary Float Switch* All Sizes 45W06RWG0268-01 X X
15 Cable Connector (Ground) All Sizes 45W09RWG0313-01 X X
16 J+ Control Board (Black with Display Screen) All Sizes 45W11RWG1242-01 X X
17 Wire Harness, Motor Control All Sizes 45460RWG1235-01 X X
18 Wiring Diagram All Sizes X X
19 Blower Speed Control Cable All Sizes 45W11RWG0807-01 X X
20 Return Air Panel Assembly
2430J 45463RWG0708-02 X X
3642J 45463RWG0708-03 X X
4860J 45463RWG0708-04 X X
21 Silicone Tubing, 3/16ID All Sizes 11H07R01471-002 X X
22 Snap Plug, 5/8 ID All Sizes 11J07-01019-015 X
23 Snap Plug, 1-3/8 ID All Sizes 11J07-01019-037 X
24
ECM Controller - JH4MB All Sizes 45W11RWG0926-10 X X
ECM Controller - JH4MC All Sizes 45W11RWG1540-10 X X
*Switch only, for full assembly contact TechnicalService@SpacePak.com
