Spacerails Level 2 - ASSEMBLY: ELEVATOR COMPLETION; Elevator Ring and Guard Installation

Seaich Corporation, LLC. All rights reserved. www.seaich.com
|
Spacerails, LLC. www.spacerails.com Page 5

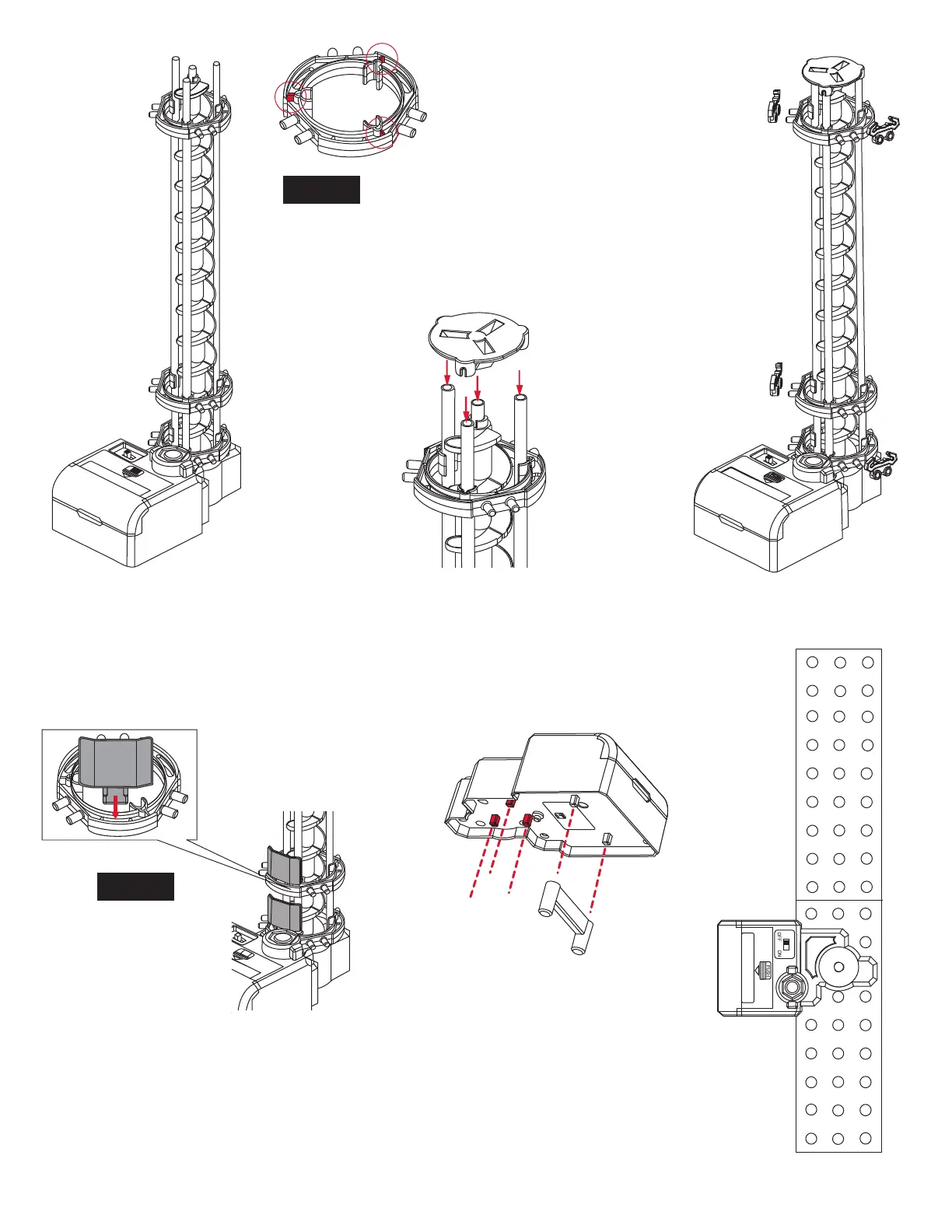

Step 4: Slide each Elevator
Ring into position on the
support shafts right-side up.
NOTE:
The Marble may
fall out of the
elevator if it
enters too fast.
Step 7: Insert Elevator Guards to the
right of the Rail Clips on the bottom two
Elevator Rings.
Step 5: Place the Elevator
Cover onto the top of the
elevator assembly.
NOTE:
Elevator Rings are right side up
when tabs in red are on the top.
Step 6: Attach Rail Clips to
each Elevator Ring as shown.
250 mm
50 mm
Step 8: Attach Power Box Stand
to the Power Box.
Step 9: Firmly seat the posts
from the Power Box in the holes
on the base.
Posts attach
to base
