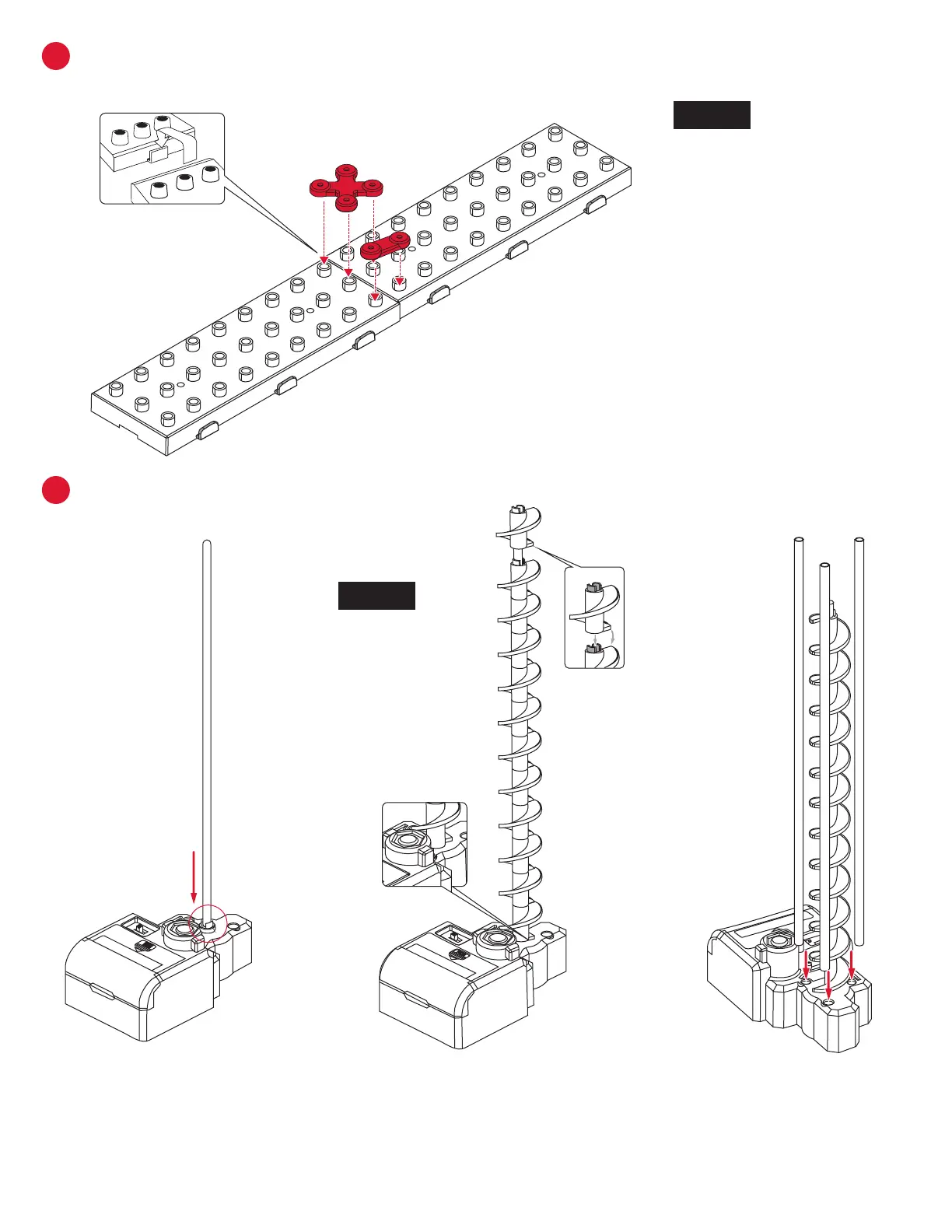

Step 1: Interlock base
block tabs as shown.
Step 2: Press Base Holder A and
Base Holder B pieces into the base
blocks for a more secure hold.
BASE ASSEMBLY
Step 3: Once the corkscrew
is built, attach three support
shafts to the Power Box.
Step 1: Place a 300 mm
shaft in the white hole on
the Power Box.
ELEVATOR ASSEMBLY
Illustrations are approximately 33% of actual size.
Step 2: Connect Elevator
Helix pieces together with
the male part facing up to
ll the shaft.
NOTE:
Install the rst
Elevator Helix
piece male side up
and rotate it until
it slides in place
and engages with
driver at the base
of Power Box.
NOTE:
Please see the included full size
drawings. This will simplify the
positioning of base, arms, shafts,
and the rail cut lengths.
C
D
To Next Page
