Spacerails Level 2 - ASSEMBLY: SHAFTS AND RAILS; Shaft Assembly and Orientation

Page 6 Seaich Corporation, LLC. All rights reserved. www.seaich.com
|
Spacerails, LLC. www.spacerails.com

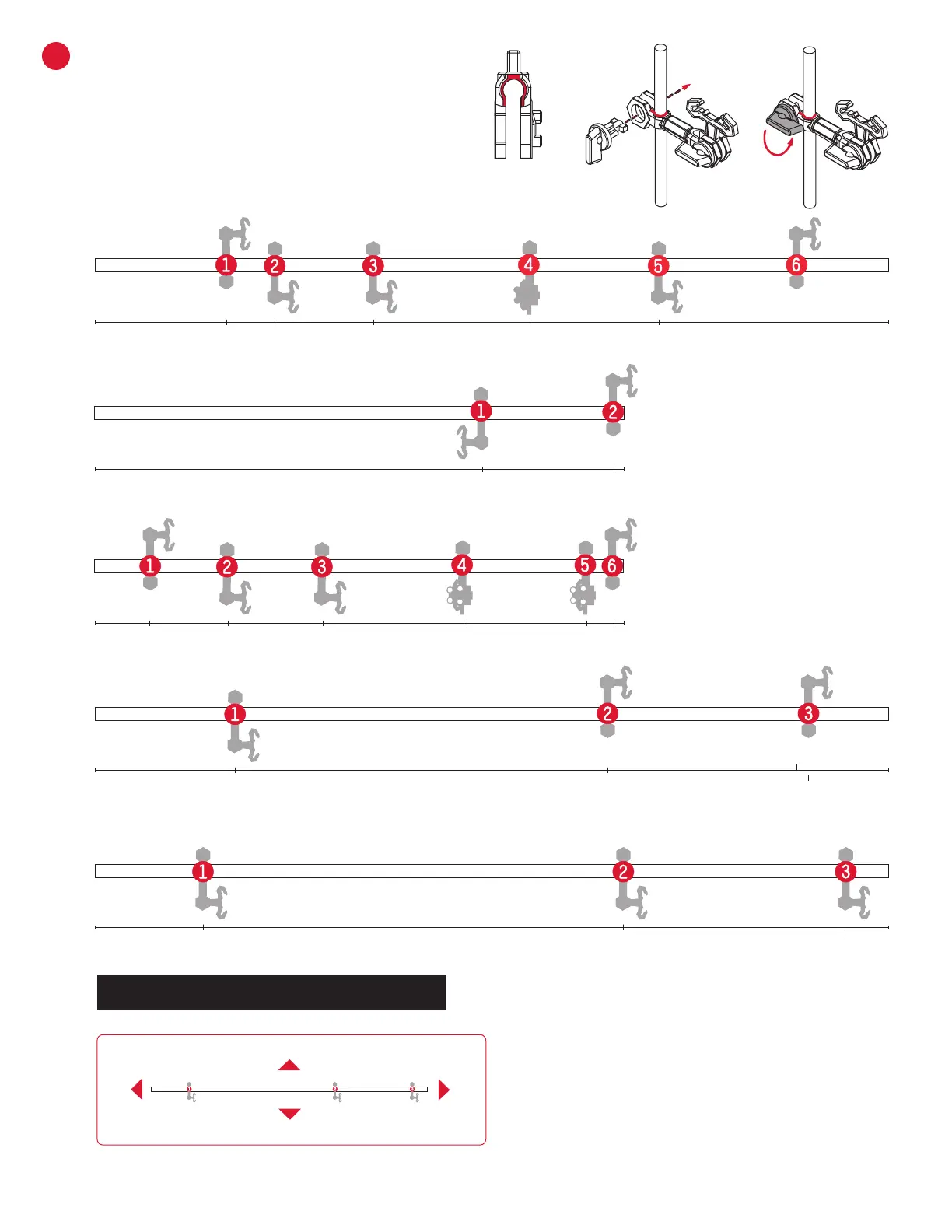

Shaft A
49 68 105 163 212
263 300
Shaft B
145 194
200
Shaft C
20 49 86 138 182 197
200
Shaft D
52 193
269
300
Shaft E
40 199
281
300
SHAFT ASSEMBLY
Slide Arm Holder B of each arm on to a shaft and
lock in place with Arm Lock. Pay attention to
orientation and location of each arm. In later steps
the letter of each shaft and number of each arm will
guide in the installation of the rails. Illustration of
shafts are 60% of scale.
Arm
Holder B
D
SHAFT TO BASE ORIENTATION
TOP
FRONT OF BASE
BACK OF BASE
BOTTOM
