Spacerails LEVEL 4 - Elevator Assembly

Seaich Corporation, LLC. All rights reserved. www.seaich.com
|
Spacerails, LLC. www.spacerails.com Page 5

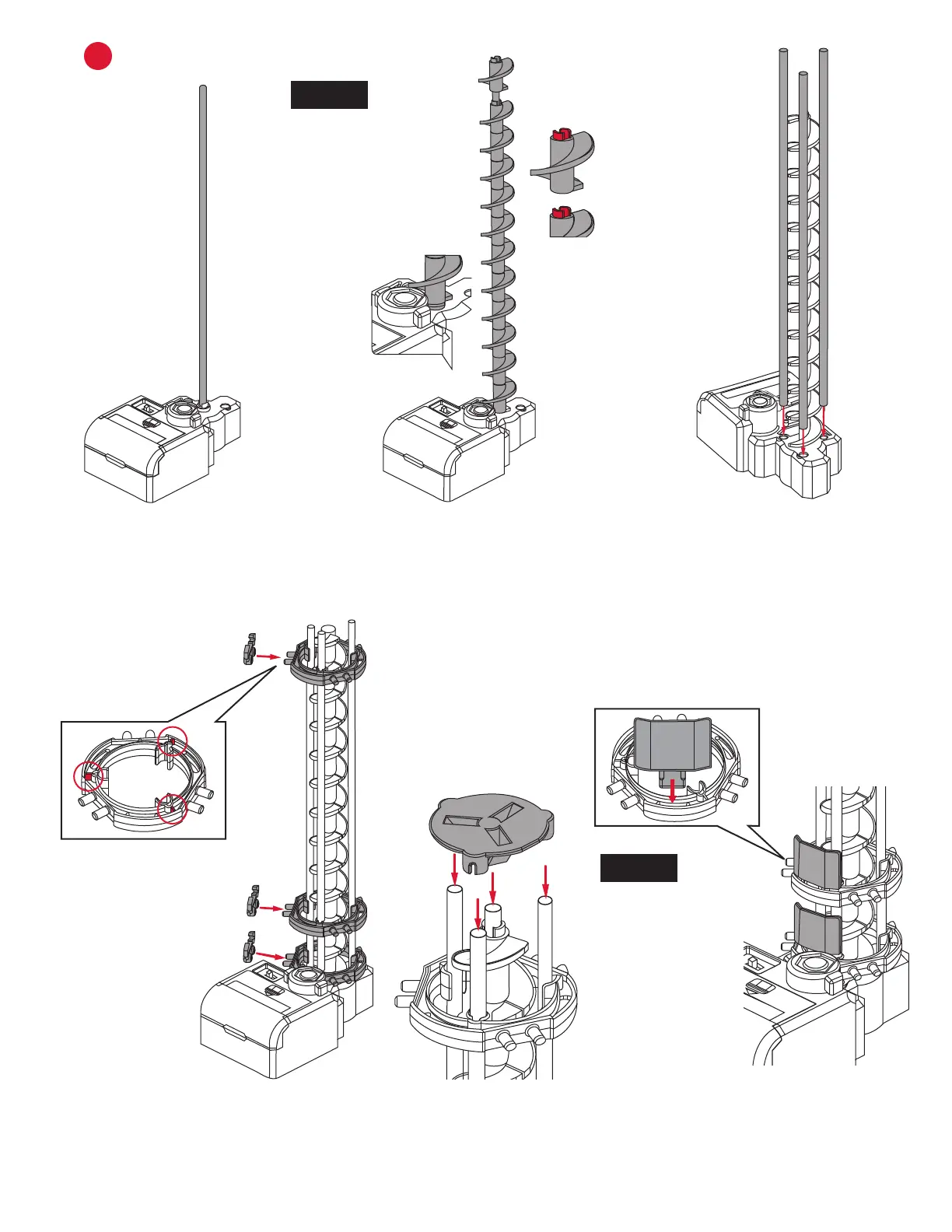

Step 3: Once the Corkscrew is
built, attach three support shafts
(300mm) to the Power Box.
E
ELEVATOR ASSEMBLY
Step 2: Connect Elevator Helix
pieces together with the male part
facing up to ll the shaft.
NOTE:
Install the rst Elevator
Helix piece male side
up and rotate it until
it slides in place and
engages with driver at
the base of Power Box.
Step 1: Place a shaft in the
white hole on the Power Box.
Step 6: Place the Elevator Cover
onto the top of the elevator
assembly.
Step 7: Attach an Elevator Guard to
each of the Elevator Rings, then to
the right side of the Rail Clip.
Step 5: Place the three Elevator
Rings over the three shafts.
NOTE:
The Marble may fall
out of the elevator if it
enters too fast.
Step 4: Connect
one Rail Clip to each
Elevator Ring. Install
Elevator Ring with
tabs facing up, as
shown above.
