F
G

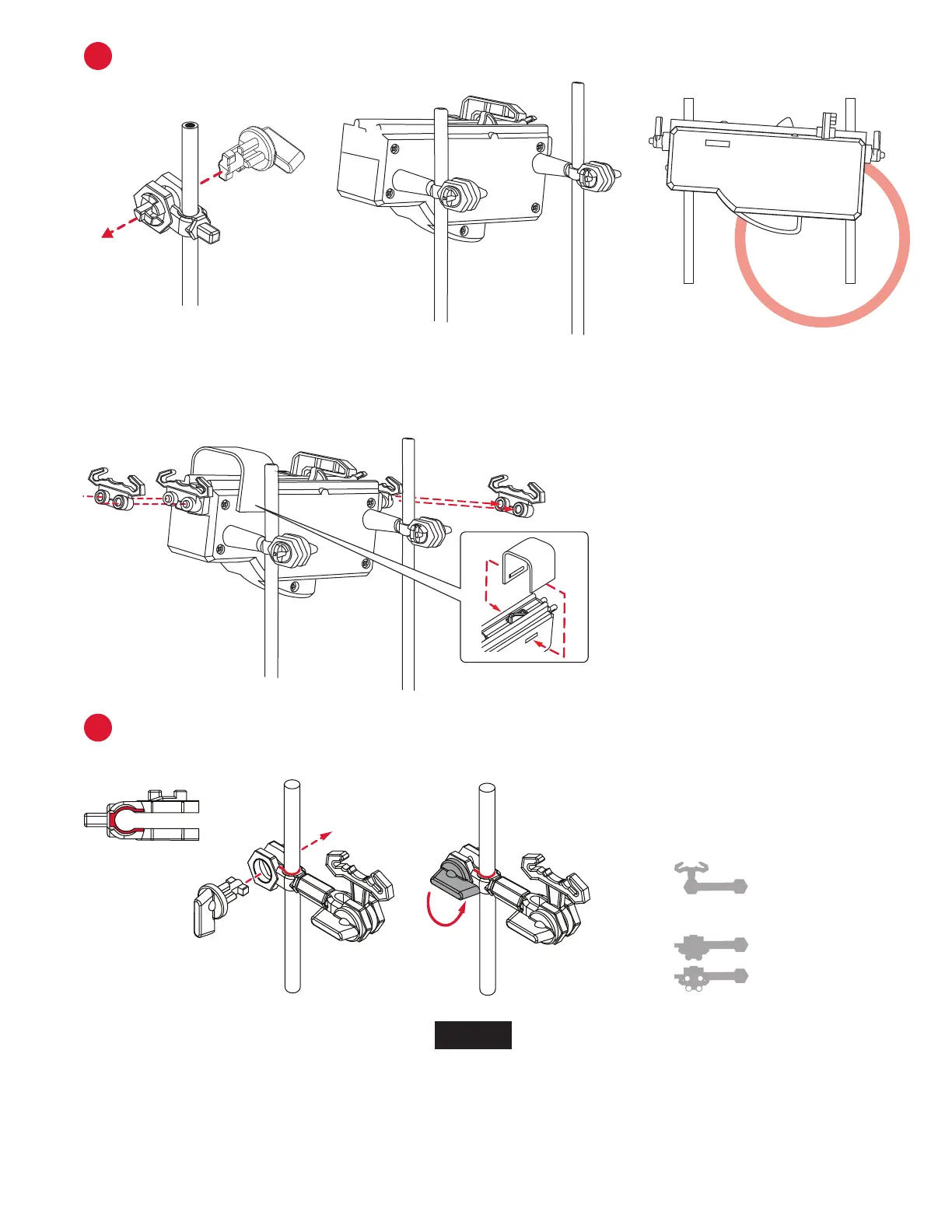

STARTER ASSEMBLY
SHAFT ASSEMBLY
Step 1: Connect Arm Holder B to
300mm Shaft. Insert Arm Lock.
Step 4: Attach Rail Clips and
Start Block Cover to Starter.
Step 1: Slide Arm Holder B of each arm on
to a shaft and lock in place with Arm Lock.
Refer to the next page for orientation and
location of each arm.
This is how the pieces are
referenced on the shaft drawings.
Arm
Arm Holder B
See-Saw
Step 2: Connect the Starter pegs
to the Arm Holder.
Step 3: Ensure the Starter is at
a slight angle so the Marble will
run smoothly.
NOTE:
Please see the included full-size drawings for the next
several steps. This will simplify the positioning of base,
arms, shafts, and the rail cut lengths.
To Next Page
