Rail Section 5:

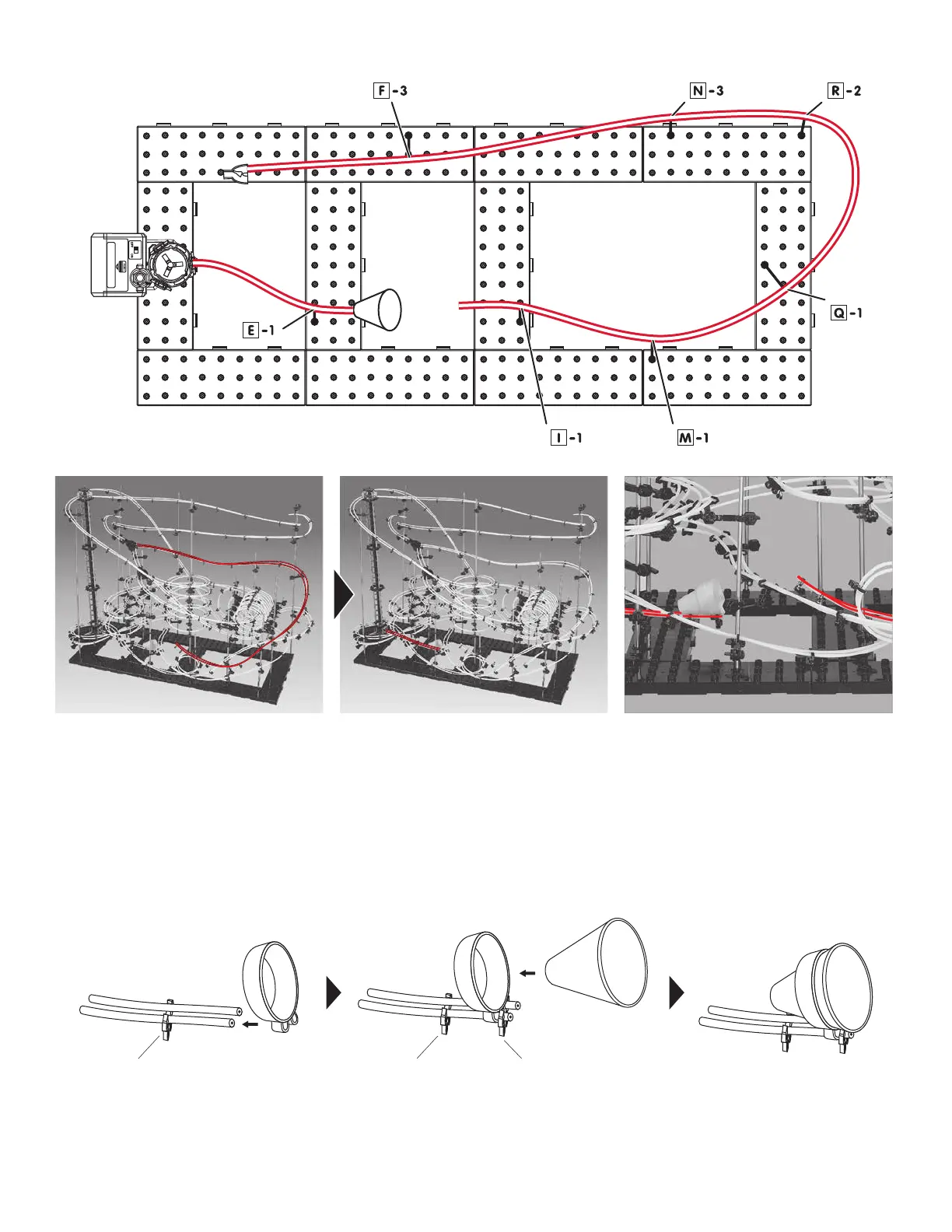

Step1: Start by attaching rail F (150 cm) to Rail Clip of
rst splitter facing the back of the base. Connect rail
through arms F-3, N-3, R-2, Q1, M-1, and I-1 creating a
ramp to jump the Marble. Repeat step for second rail. Do
not trim excess rail until the ramp has been ne tuned.
Adjust the speed and angle of the ramp for the jump and
catch to be successful.
Step2: Attach rail C (28 cm) to arm E-1 and nish at the
Rail Clip on Elevator Ring 2 in the center position.
Step3: Attach the Capsule Ring and Capsule to rail C as
shown below.
Arm E-1 Arm E-1 Rail Clip
To Next Page
