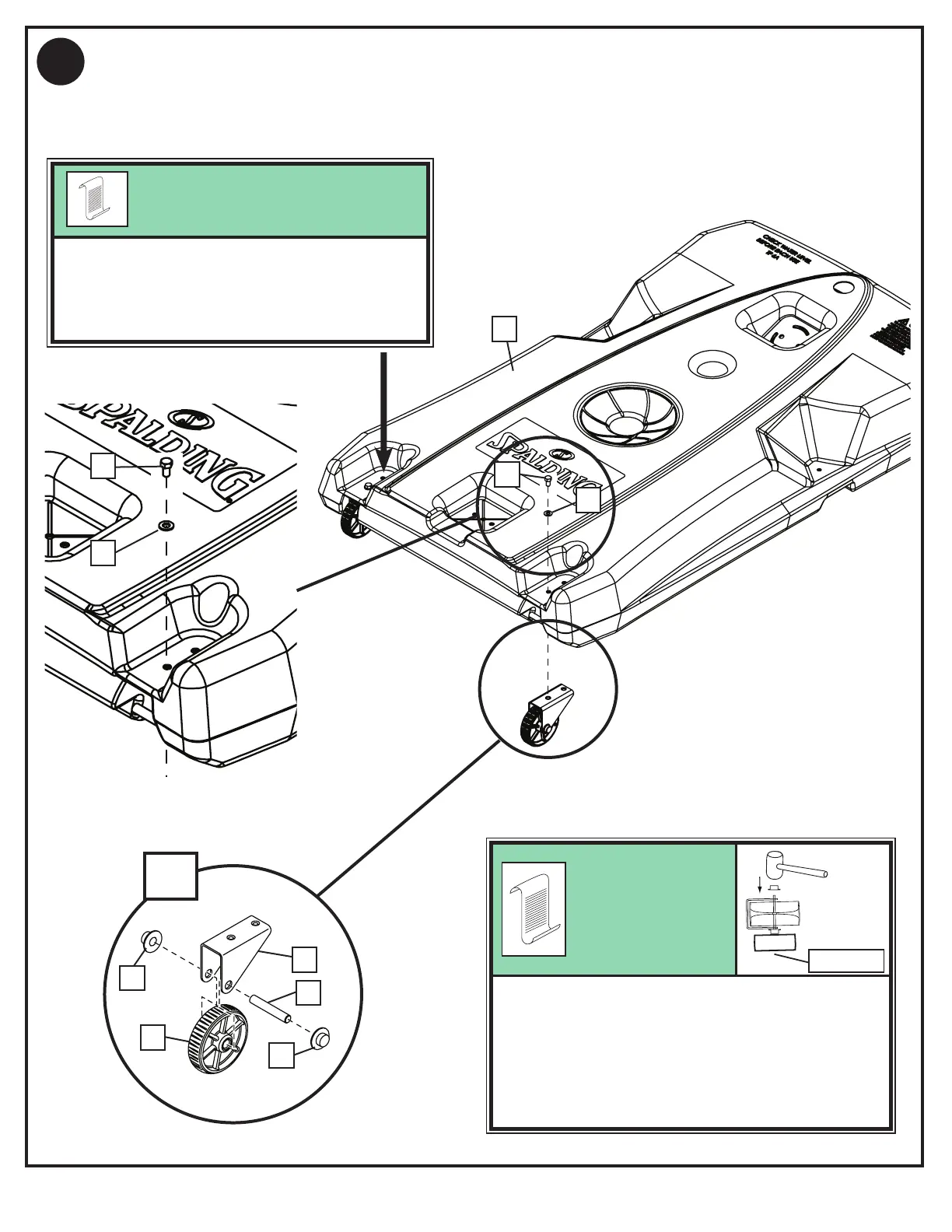

Complete wheel assembly as shown in Figure A. Secure wheel bracket (7), wheel (8), axle (9),
and push nuts (13) to the base (1) with a single bolt (18) and washer (51). Repeat procedure for
opposite wheel.
1.
A.
NOTE
Do not install both bolts into the wheel assembly
at this time.
The back bolt will be installed during strut
assembly in Step 3 of this section.
NOTE
Wood Block
TO INSTALL SECOND PUSHNUT:
• Assemble Pushnut, Wheels, Axle, And Wheel
Bracket As Shown.
• Support Pushnut/Axle From The End With A
Block Of Wood To Install The Second Pushnut Onto
The Axle.
18
51
18
51
