SPALDING E6A994 - Page 21

15
14
24
22
22
25
23
IMPORTANT!
21
24
12.
Loop end of pin lanyard
(25) over carriage
bolt (23) as it passes
through the pole mount
bracket (15) during this
assembly.
23
25
24

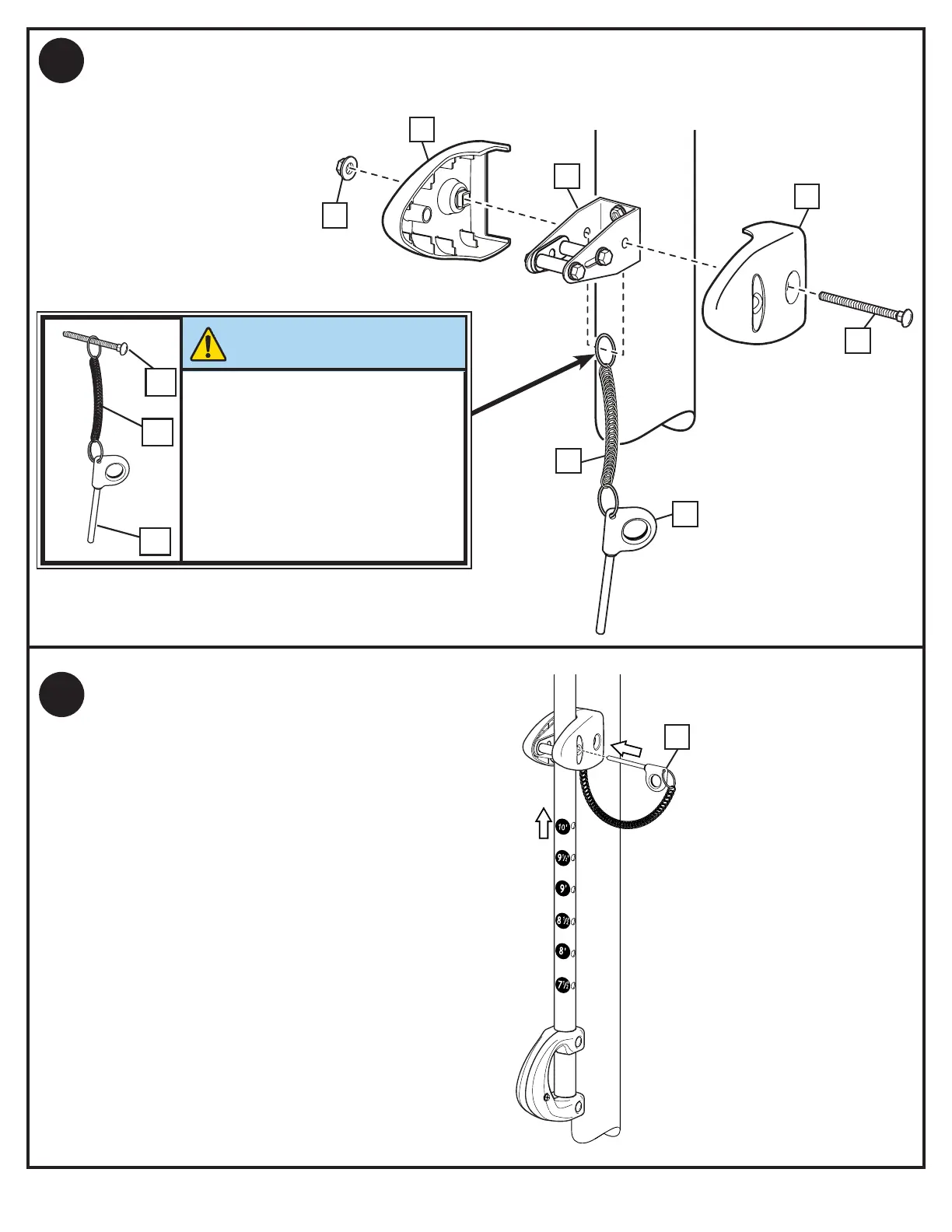

Assemble lanyard (25) to locking pin (24) as shown. Attach covers (22) onto pole mount bracket
(15) with carriage bolt (23) and nut (14) as shown.
Insert handle assembly through pole
mount assembly as shown.
Lock pole assembly in place at the 10’
(3.05 m) mark with pin (24).
11.
